ETI Fuzztone

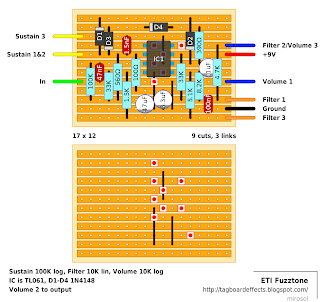

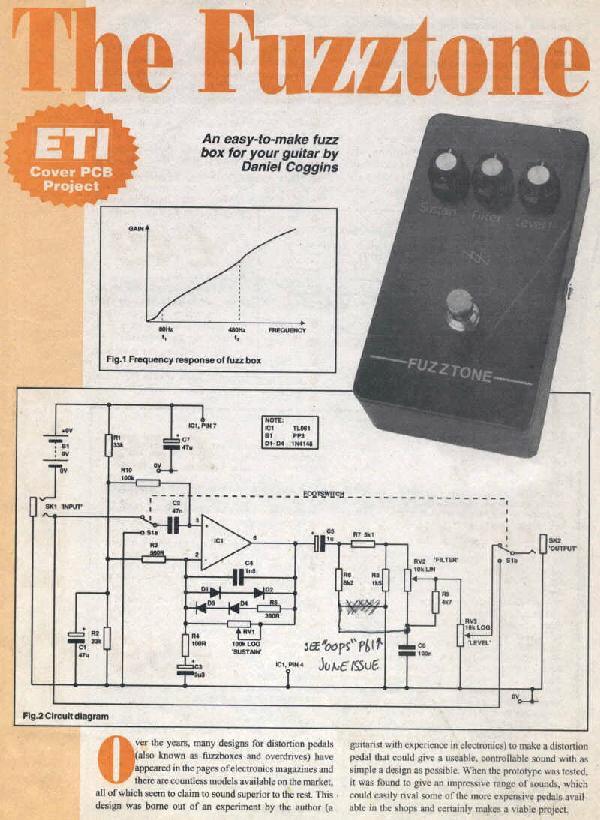

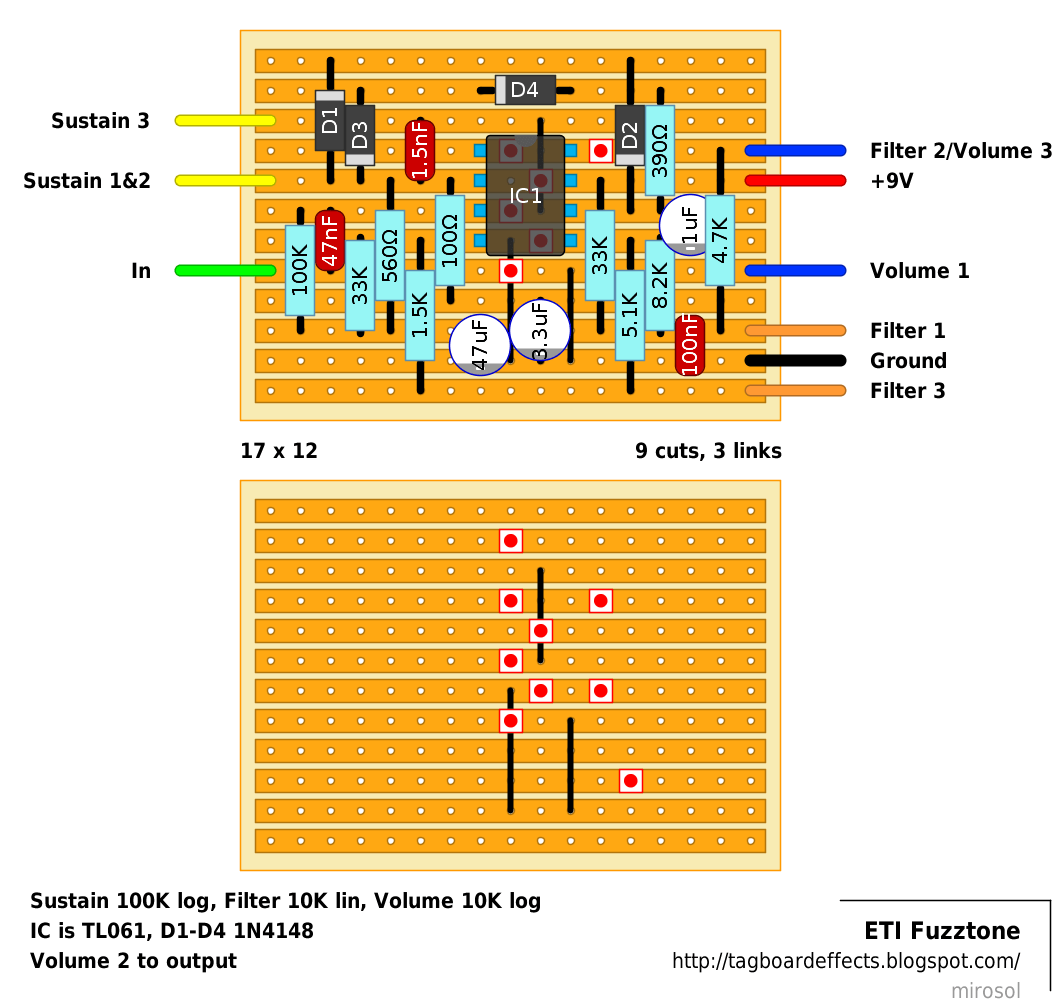

Apparently there was some slight issues with the schematic above, namely the R6 was not correctly placed – that had been corrected in the next ETI issue back in 1993. The layout seems correct to me.. 🙂
