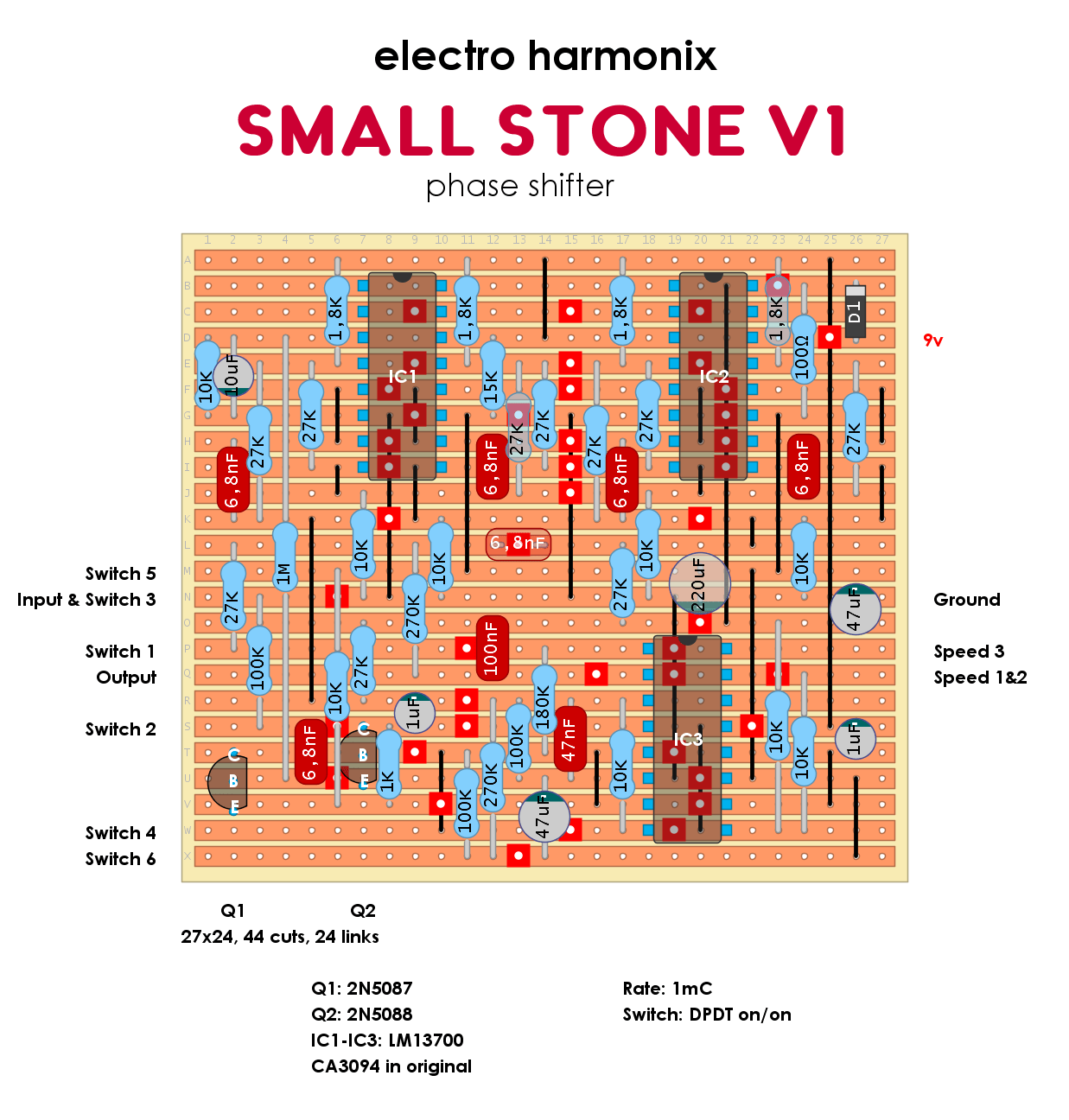

Layout for the first version of Small Stone which was produced between 1974(?) and 1978. Layout is based on schematic from Lectric Fx Note that original had long gone obsolete 8 pin OTA chips so this layout is modernized for easy to get LM13700s.
Just a little Cornish buffer that I use for buffered bypass / Pete Cornish builds. It’s small enough to sneak in at the bottom of an enclosure below the foot switch or standing upright against the side. PETE CORNISH BUFFER – VERO LAYOUT I sometimes add an extra row for additional power filtering – … Read more

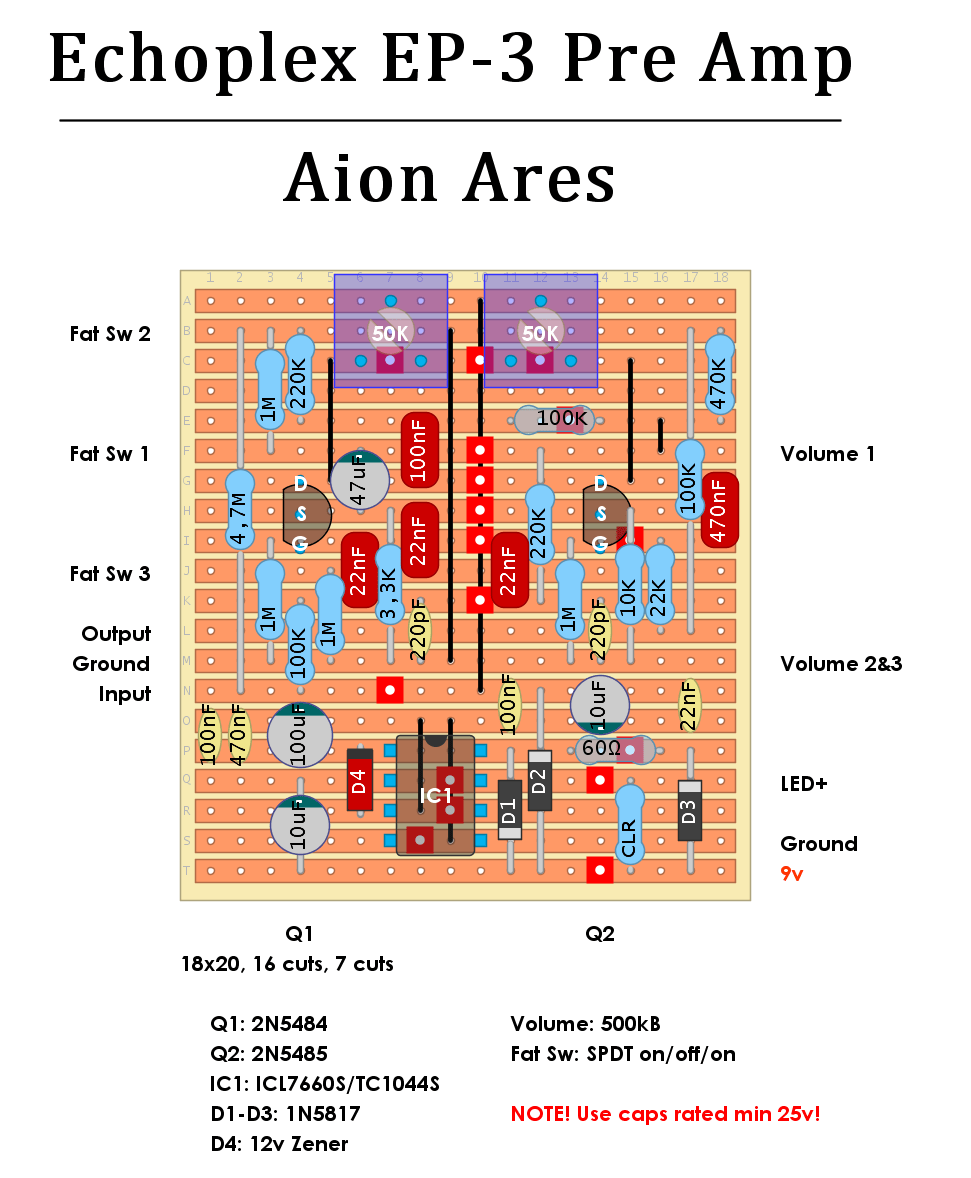

Aions Ares project which is based on Echoplex EP-3 Pre Amp which includes an onboard voltage doubler for more headroom. Schematic and info on J FET selection avaiable HERE. ‘Note that there is two ground connections on the board, the purpose is to reduce any potential noise from the charge pump. Those wires can be … Read more

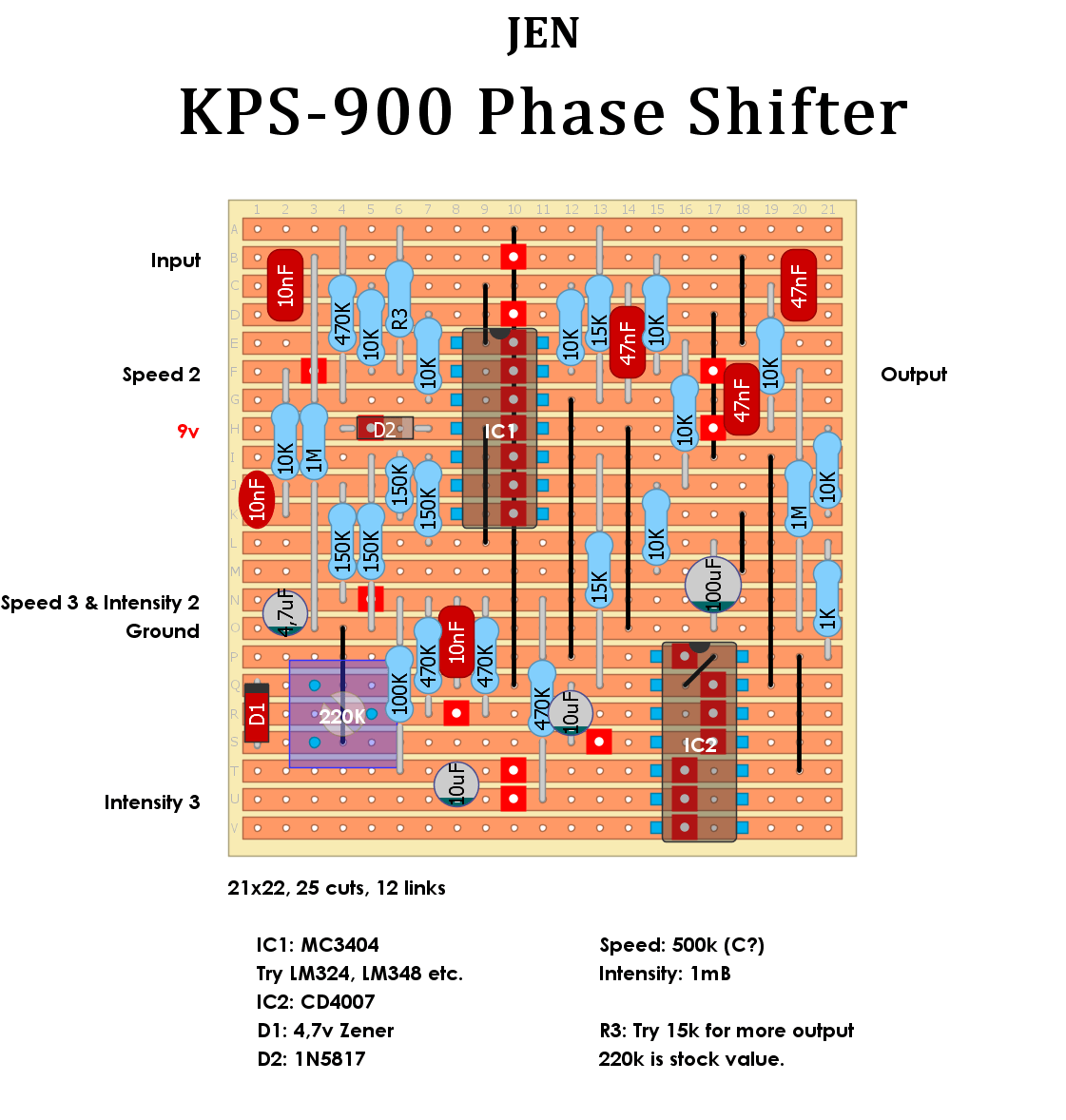

Similar to MXR 45 phaser but the pesky J FETs is replaced by a CD4007 chip so no transistor matching is required. Schematic avaiable HERE
This is a handy little mod for the Univox Super Fuzz – especially for those who always leave the tone switch on the notch setting. Instead of a tone switch, there’s a pot from the 100n capacitor to ground in the bridged-t notch filter, so the amount of notch can be dialled in. If you really want … Read more

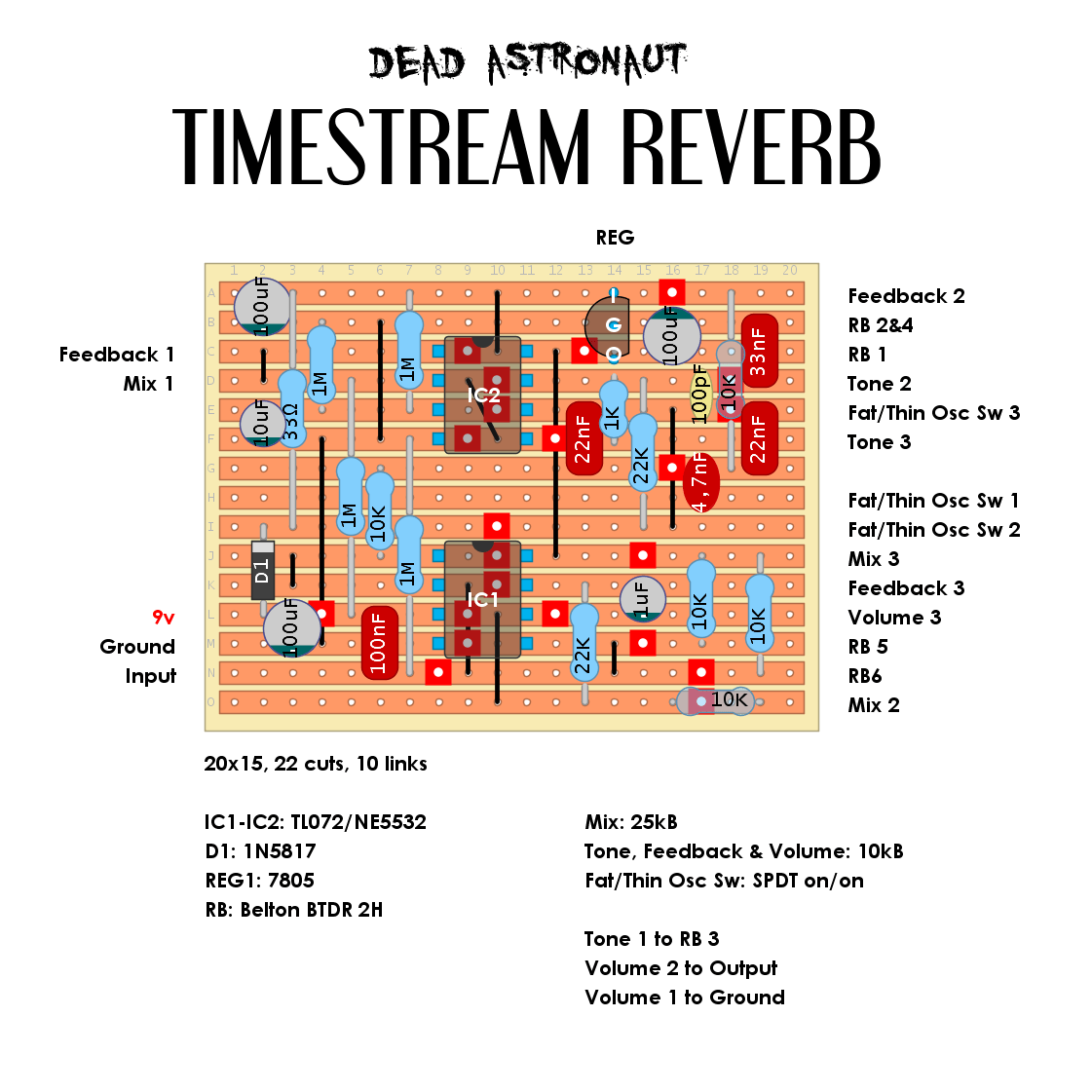

A simple delay with both subtle reverb tones as well as oscillation reverb…. Schematic HERE
