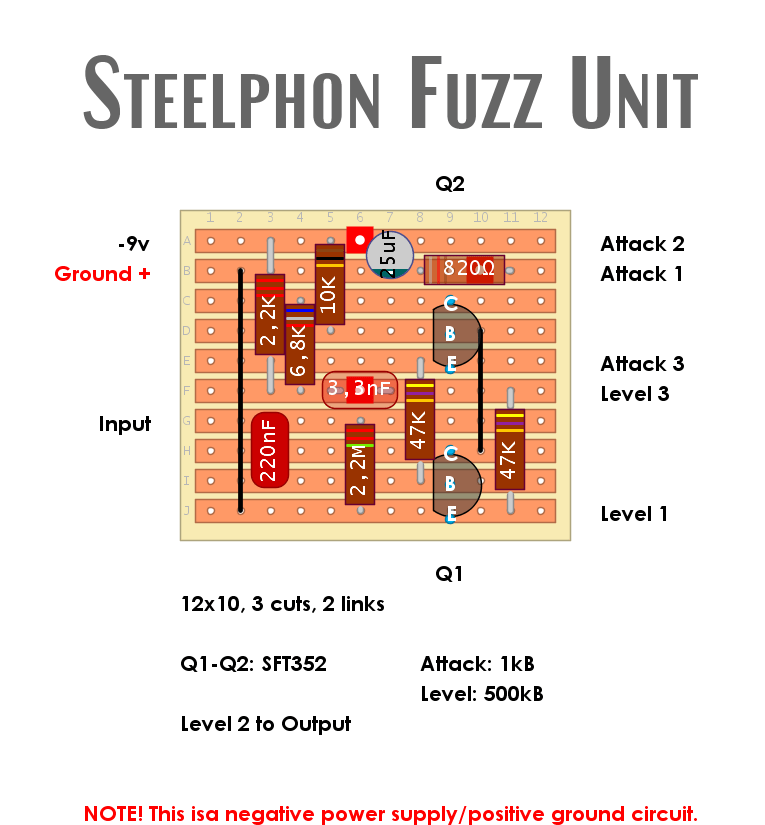

Verified by Craig *Edit 200920* A small update, the schematic was missing a 1uF coupling cap between Fuzz lug 2 and the 10k resistor that connects to the base of Q2. Layout is updated to match the updated schematic.
