Month: June 2018

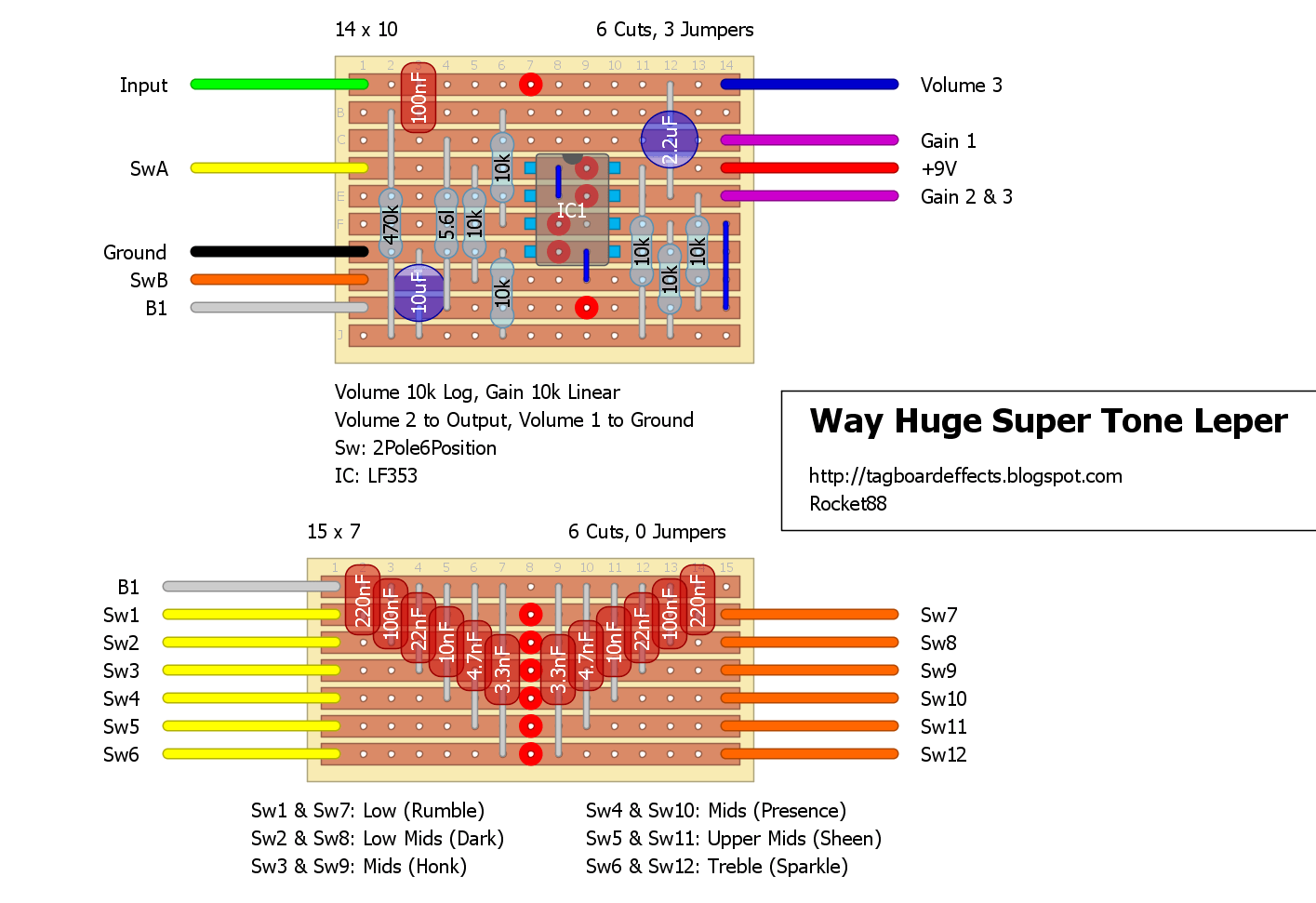

Way Huge Super Tone Leper

13 Jun 202630 Jun 2018 by chords

Way Huge Super Tone Leper Mod c3979ad967ab

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

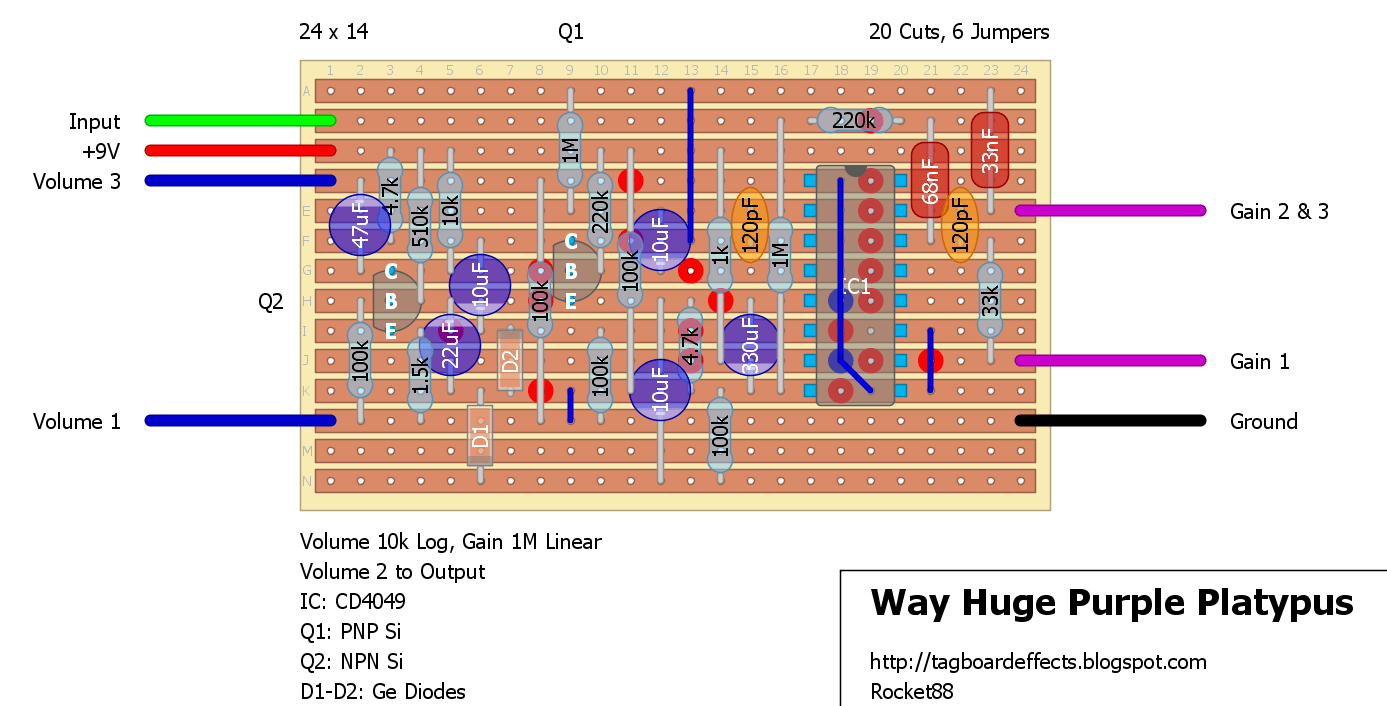

Way Huge Purple Platypus

13 Jun 202630 Jun 2018 by chords

Way Huge Purple Platypus 961f41bf0551

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

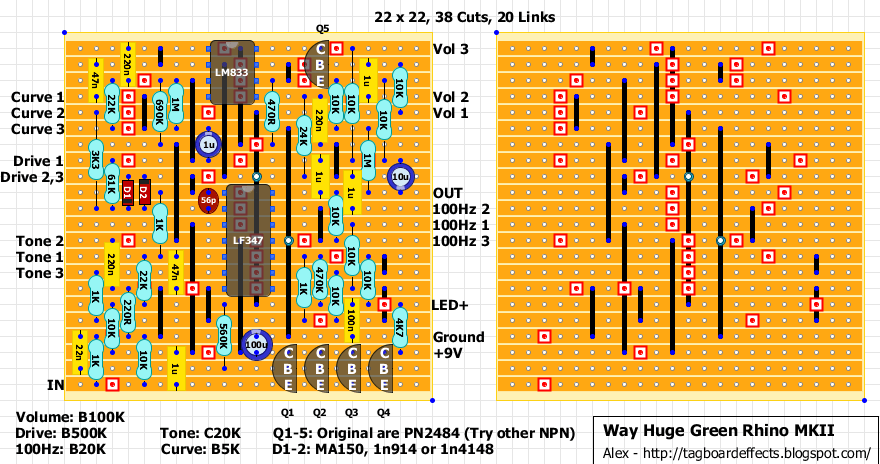

Way Huge Green Rhino 2

13 Jun 202630 Jun 2018 by chords

GreenRhino2 e965ccf80768

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

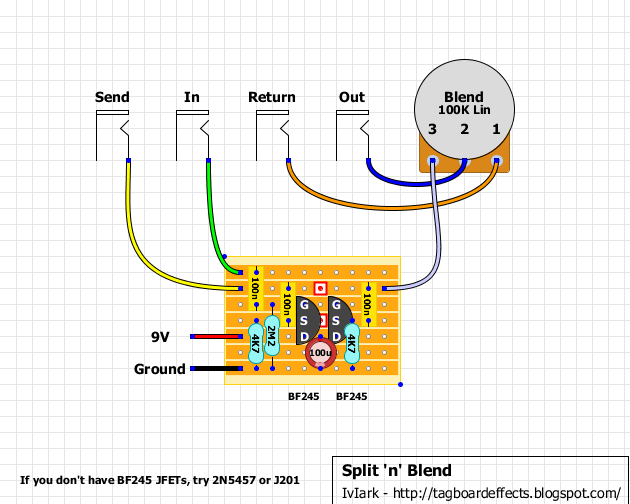

Split and Blend

13 Jun 202630 Jun 2018 by chords

Split n Blend 3595977ee181

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

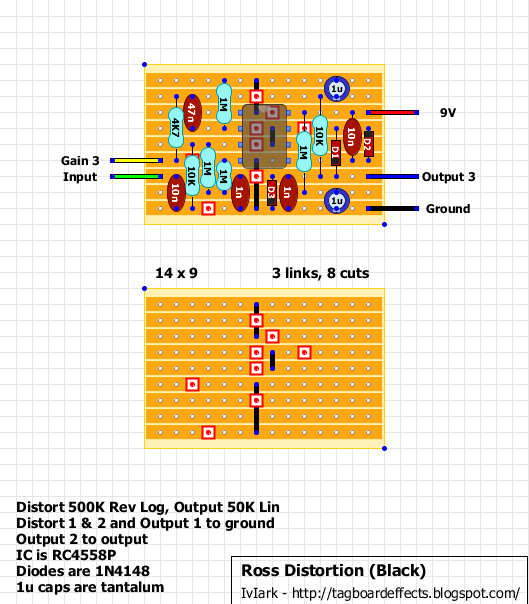

Ross Distortion – Black

13 Jun 202630 Jun 2018 by chords

Ross Distortion Black 6f06ba6678c7

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

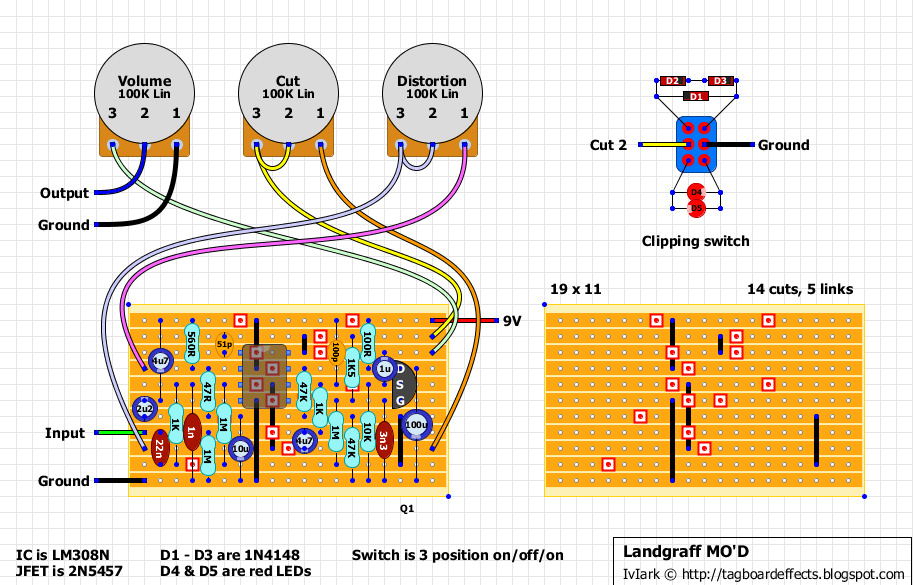

Landgraff MO’D vero layout

13 Jun 202630 Jun 2018 by chords

Landgraff MOD 47760072b0be

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

A simple voltage doubler for guitar pedals

13 Jun 202630 Jun 2018 by chords

9118e173cc7ed7de64e230f2206e2067 b80b0712e8db

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

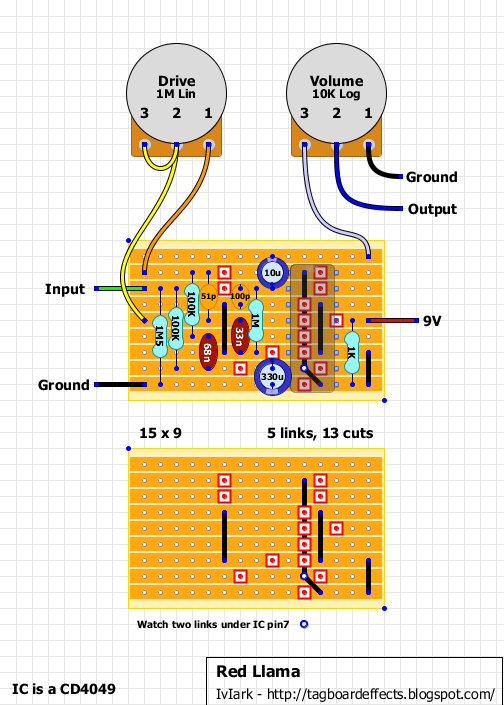

Way Huge – Red Llama vero layout

13 Jun 202630 Jun 2018 by chords

Red Llama af222f9545fe

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

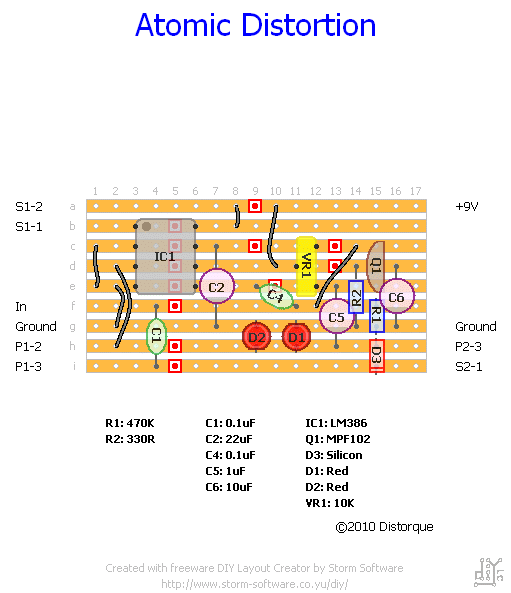

Atomic Distortion

13 Jun 202630 Jun 2018 by chords

Atomic Distortion 1 3 60470187b809

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

Big Muff Pi – Various Versions

13 Jun 202630 Jun 2018 by chords

BigMuffPi dee5fe36745b

Categories Uncategorized Tags guitarpedalbuilders Leave a comment

Older posts

Page1 Page2 … Page6 Next →
