Mid-Fi Electronics Random Number Generator
Happy Fuzz Friday, all! Here’s a fun noise maker that should go together pretty easily. Schematic for reference.
1590a
AMZ Mini Booster SMD
What’s everyone think of SMD? It seems more and more boutique builds are going that route, and with more parts only be available in SMD form, I wonder how long before it’ll be hard to get quality parts in through-hole packages. All that to say, here’s a simple etch-able SMD layout of the AMZ Mini … Read more

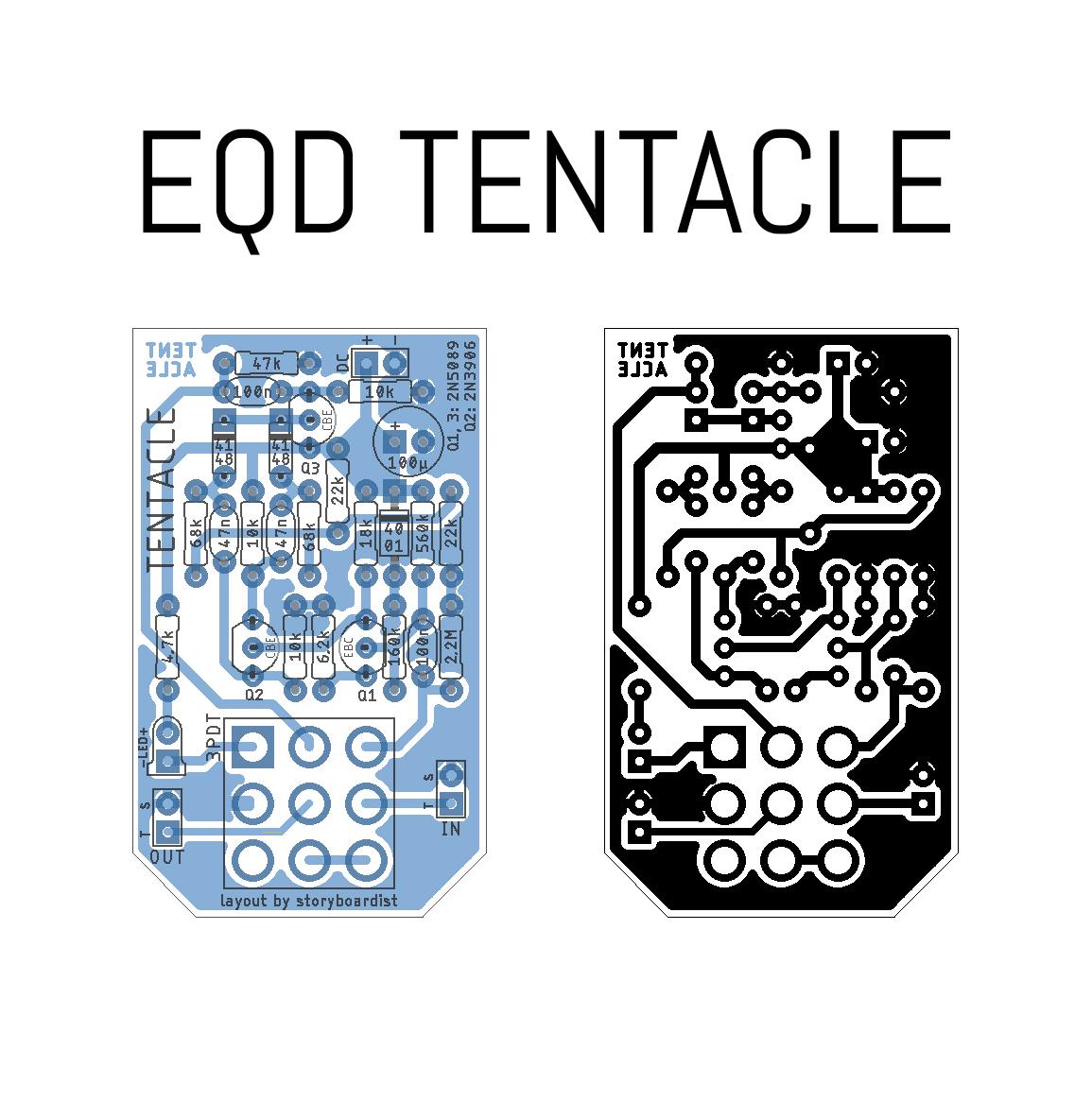

Earthquaker Devices Tentacle
Had several requests for the Tentacle, but it’s just more or less a Dan Armstrong Green Ringer clone. But I had the idea of making a Green Ringer layout with the bypass footswitch board-mounted so we’ll just call this layout the Tentacle. Should fit easily in a 1590A. If you’d rather a fabricated PCB to … Read more
DOD 210 FET Preamp
Got a little simple boost/preamp for your Thursday. Should be a pretty easy fit in a 1590A. J113 alternatives would be J201, 2N5457, and probably a couple other JFETs that are obsolete. 😑

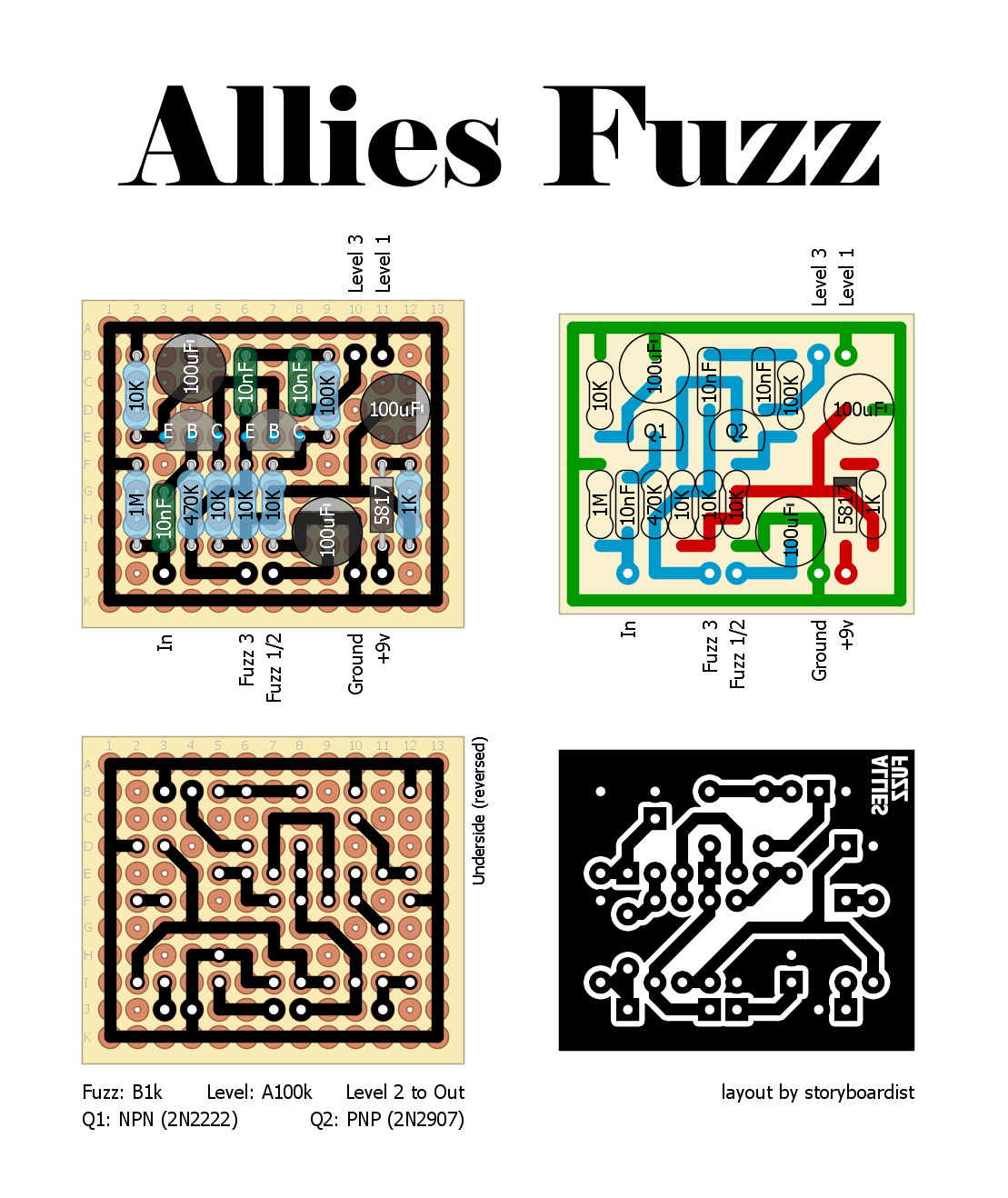

Allies Fuzz
Got a request for this one for Fuzz Friday. Designed by Masaru Kubota it’s based on Roger Mayer’s Axis Fuzz with a fair bit of tweaks. Here’s the schematic for reference. I revamped Roger Mayer’s Axis Fuzz and stuck on a phase stage to make the circuit sound like a tube amp. You probably notice … Read more
SRS EQ Exciter
Here’s a bit of a rare one for Fuzz Friday. It’s essentially a silicon Fuzz Face with an output buffer and a mid scoop tone control. Schematic and rundown of the original here. It should fit in a 1590a with 9mm pots board-mounted. I’ve also kept the pad (marked NC in the schematic) so if … Read more
EQD Bows
Here’s Jamie’s take on the classic Rangemaster circuit, with a NPN germanium transistor. There’s an added toggle to switch between full range and treble input caps. Probably a tight a squeeze in a 1590A but should be doable. There is also a 1590A specific PCB with board mounted pot and switch in the store now … Read more

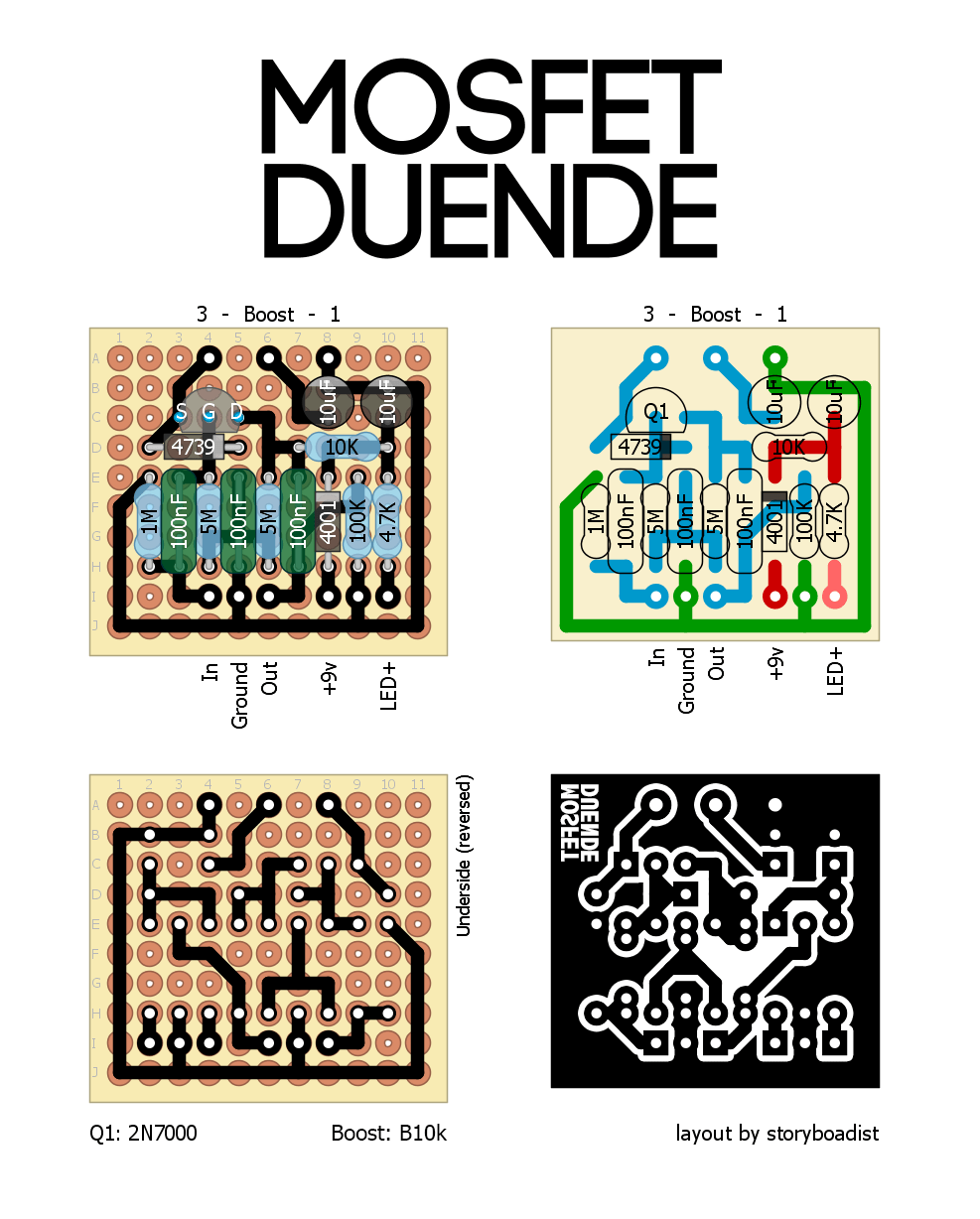

Escobedo MOSFET Duende
Here’s a simple MOSFET-based booster circuit that’d be a nice alternative to the SHO. Should fit in a 1590A. FYI, the 1N4739 diode in the layout is a 9.1v zener. Here’s the schematic for reference.

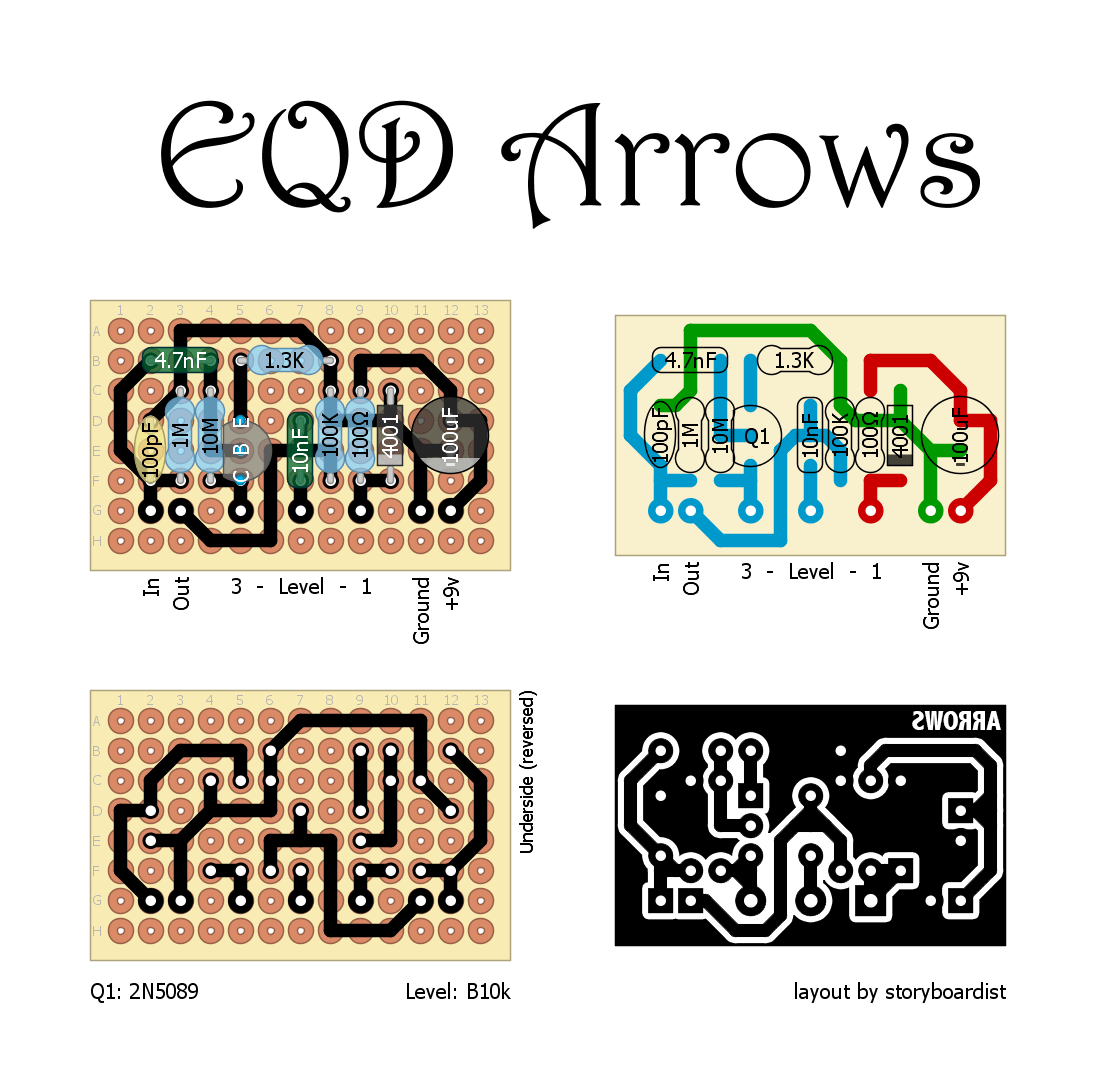

EQD Arrows
I traced this one a while back and created the Lawn Darts PCB over on the store from it. About time I made a perf and etch layout. If a Rangemaster and an Electra ever got together and had a baby, the Arrows would be the baby. Should be an easy fit in a 1590A … Read more
Barcus-Berry 3000A
Stumbled across this schematic on FSB. It’s a buffer/EQ/preamp for peizo pickups, specifically all Barcus-Berry electret microphone systems. I figured most would be building this into an instrument and not a pedal, so all the pots are off-board. If you’re planning on running it only off a 9v battery, you cab get away without the … Read more
