Delay
Don’t Tell Ray Delay
A DIY project that looks pretty cool, a PT2399 Oil Can Delay emulator… Schematic and a writeup is avaiable HERE.
SiB! Electronics Mr Echo Delay
Another trace, layout and verification by Jordan Fontaine. A PT2399 based delay but it has a trick upon its sleeve that I haven’t seen elsewere, the Slam switch. Schematic is avaiable HERE.
Sprinklesounds Mot(not)onous
Here is a contribution from Jordan Fontaine, a modified Mid-Fi Clarinot) Modded Midfi Clari(not) This was a fun project to delve into. I certainly didn’t stay true to the short delay, tape warble aesthetic. The delay still does that sound but now it can run wild too. Very versatile now for rockabilly, dub, shoegaze … Read more
Earthquaker Devices Disaster Transport

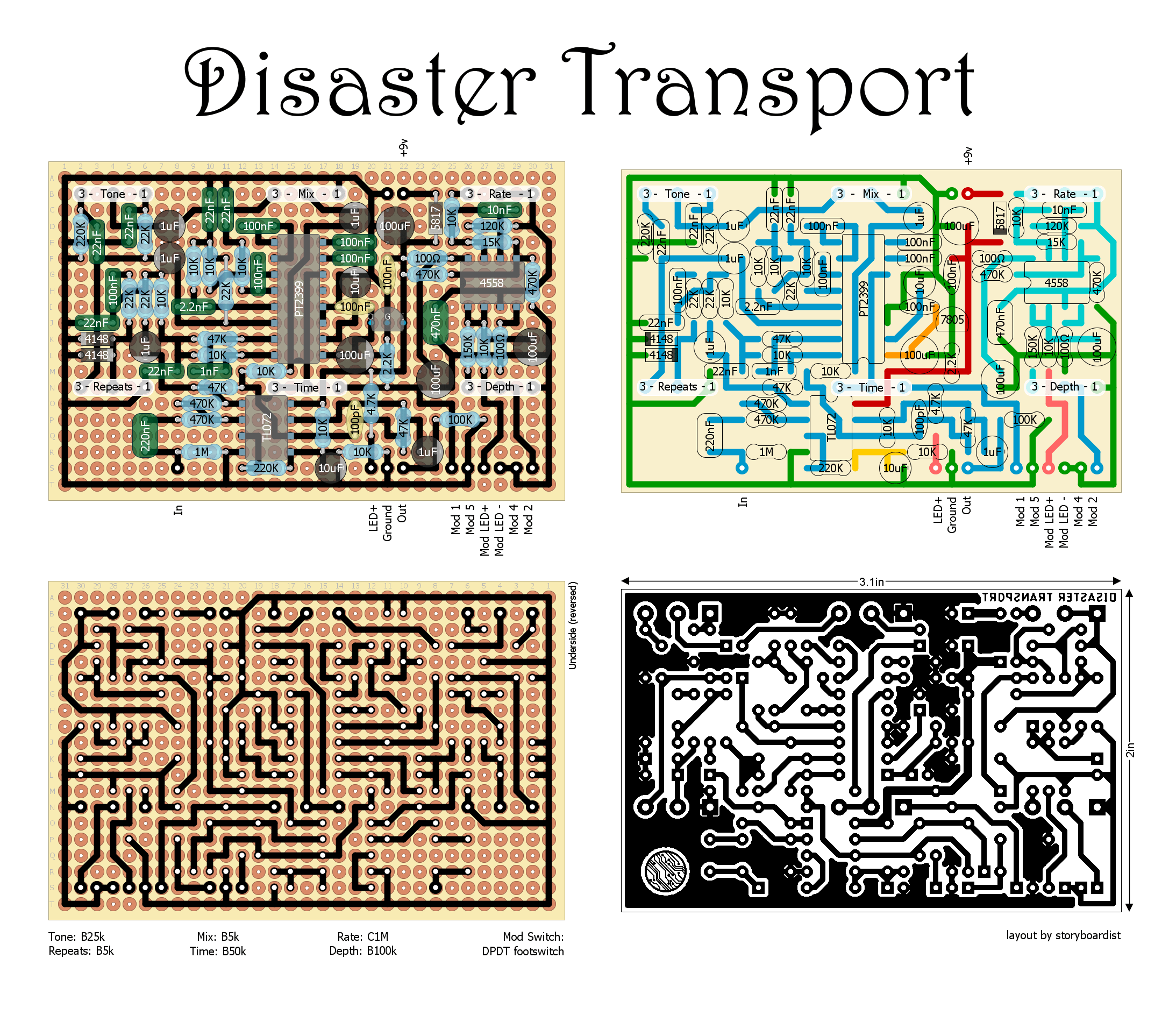

I traced this one a while back. It’s the same delay circuit as the Disaster Transport Jr but with modulation added. It fits nicely in a 1590BB like the original. Schematic here. If you’d rather a smaller footprint I have fabricated boards for a 125B in the store.
Seppuku Fx/Jordan Fontaine Memory Lapse
Another contribution by Jordan. Thanks mate! I was playing with the Seppuku Fx Memory Loss that you had posted and made some adjustments for more versatility. The schematic we all have to work from is so sketchy I thought people might enjoy a thorough series of mods to it. S First off I added a Mix … Read more
Death by Audio Black Card Fuzz Delay
Once again, Ian Sheridan sent me another one of those DBA business card circuits to trace.
EarthQuaker Devices Rainbow Machine
Chris “SPIN Doctor” Stelloh did it again! Amazing work with this box of fairy dust and chaos. The layout is verified and good to go! …and here is a layout with “Stelloh mods“.
