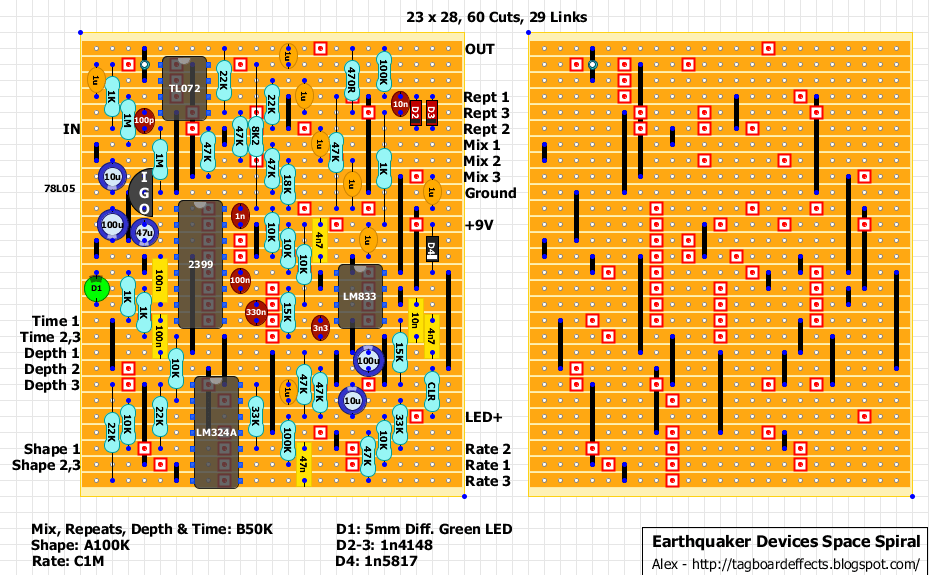

Original info: “The Space Spiral is a dark and dreamy modulated delay designed to take you across the highways of fantasy. While the delay may be designed around a “dawn of digital” echo processor, the sound is out of this world, man. If you are a fan of the dreary echoes produced by old oil … Read more

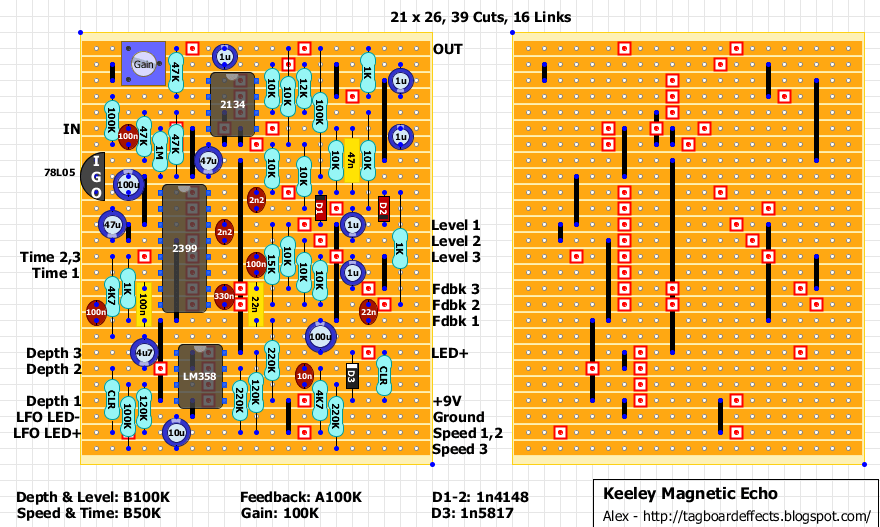

Original info: “The Mag-Echo pedal simulates tube tape echo sounds by using the delay circuit and a little bit of modulation. Tape echos have long been regarded as a warm and very guitar friendly form of delay. The Mag-Echo achieves similar results by using a touch of Lo-Fi delay, a slightly filtered echo response to … Read more
Original info: “ZUUL is the most transparent noise gate on the market! Studio quality specifications with simple straight forward operation. The ZUUL’s threshold knob also controls the dynamics of the gate circuit. Perfect for guitar, bass or any signal source as it has studio quality specifications. Use in front of an amplifier or in a series … Read more
Bajaman’s overdrive circuit based on the Marshall 59 Plexi amplifier. Original thread and schematic available on the FSB forum here.

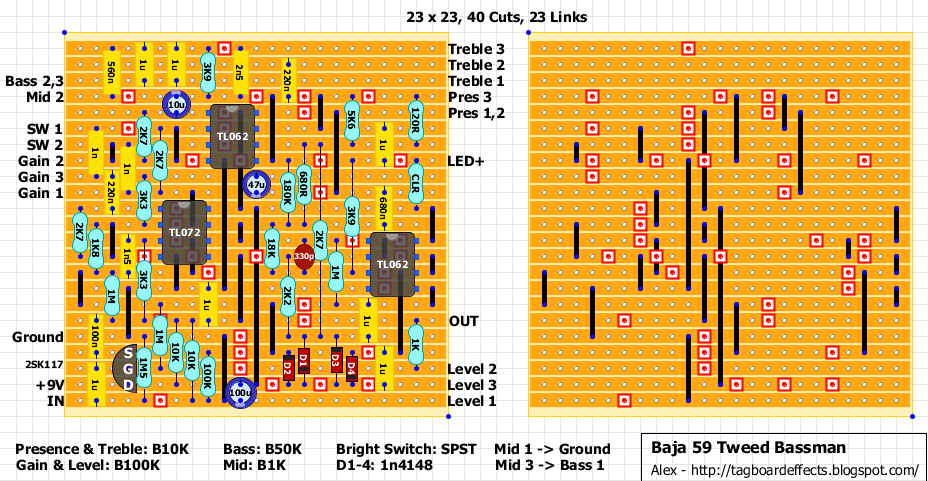

Bajaman’s overdrive circuit based on the Fender 59 Tweed Bassman amplifier. Original thread and schematic available on the FSB forum here.

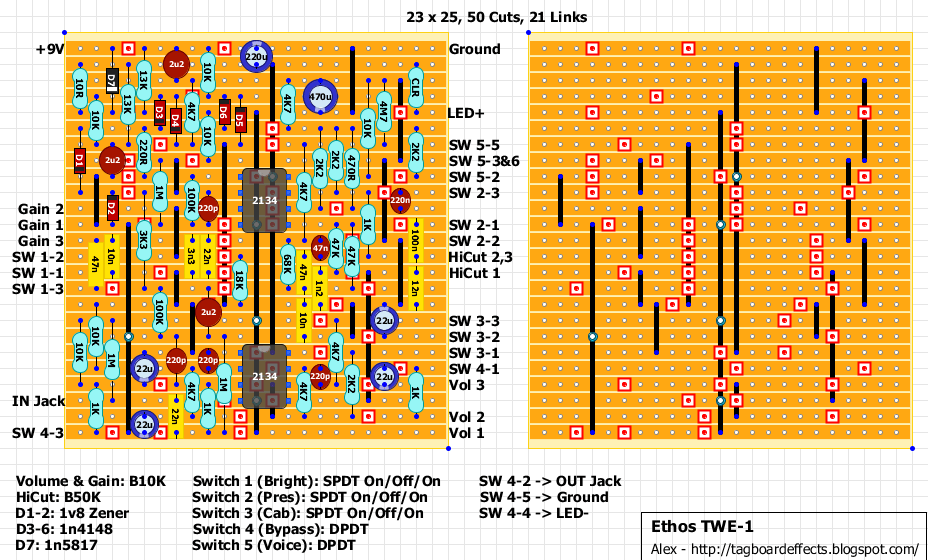

Info: “Inspired by the Trainwreck Express amplifier (built by the late Ken Fischer), the TWE-1 is solid-state pedal designed to emulate the touch-responsiveness and clean-to-overdriven range you get from a high-grade tube amp. Along with Volume, Hi Cut, and Gain controls, the pedal has 3-position Cab switch (4×12, 2×12, off), a Presence switch that provides … Read more

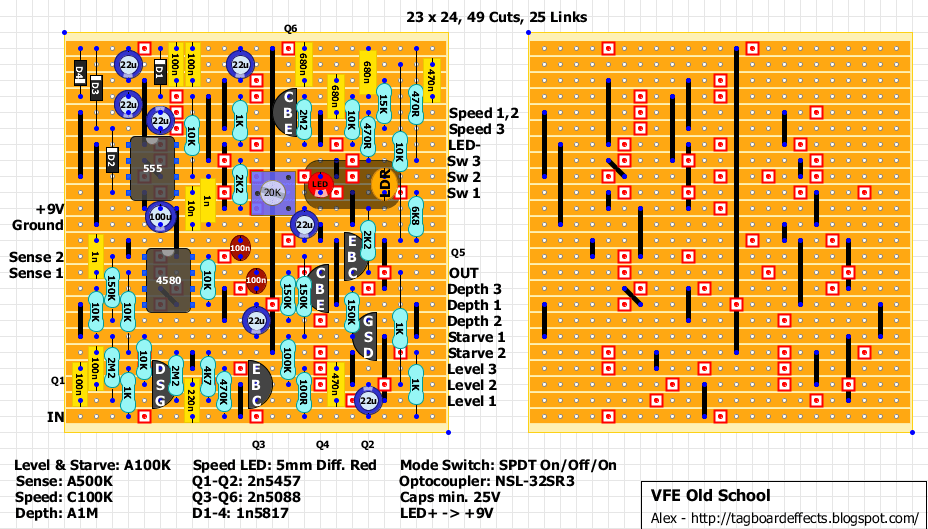

Original Info: “Our OLD SCHOOL tremolo pedal recalls the luxurious tremolo sounds of vintage tube amps. Derived from a rich sounding, but feature-limited tremolo circuit from the 1960s, we added extra range to both speed & depth controls. But we did not stop there! We added two unique circuits – one to starve the circuit … Read more

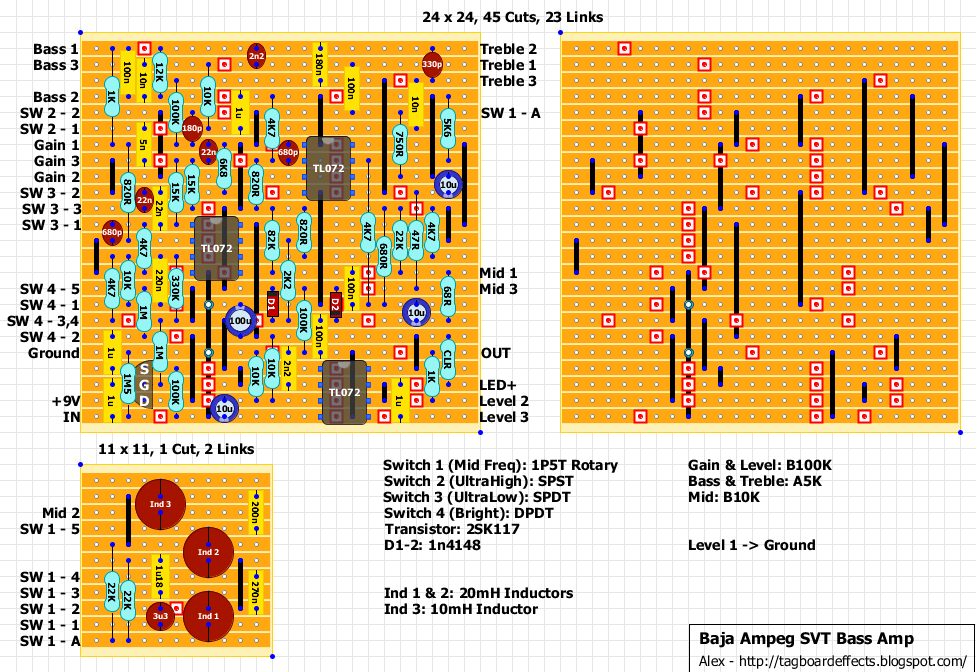

Original FSB thread and schematic available here. I’ve put the Mid Freq switch components on a separate board to make it easier to box it.

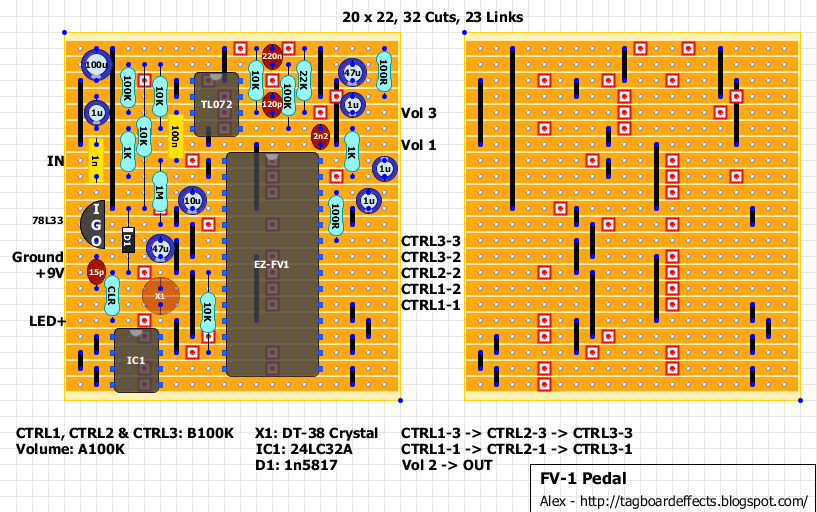

BuGG from Pedalpcb.com has created an EZ FV-1 module for vero layouts. It is available here: http://www.pedalpcb.com/product/ezfv1. This is what he wrote about this circuit in our Forum / Requests section (schematic available there): “This is a fairly straightforward single-algorithm FV-1 circuit, it would be a nice starting point for learning how to work with … Read more
Bajaman’s overdrive circuit based on the Engl 530 preamp with switchable tone stack. Original thread and schematic available on the FSB forum here. The layout should fit in a 125B box. 09/07/2018 Layout Updated! Inverted Treble and Bass pots’ lugs. Changed 390p cap from TL062 pin 5 to 470p. Changed 1K resistor next to 22uF … Read more
