Schematic and info HERE It is obviously based on Colorsound Overdriver/Power Boost but with quite alot mods and addons. First there is two input buffers before a heavily modified Overdriver circuit. And at last there is an op amp recovery stage.

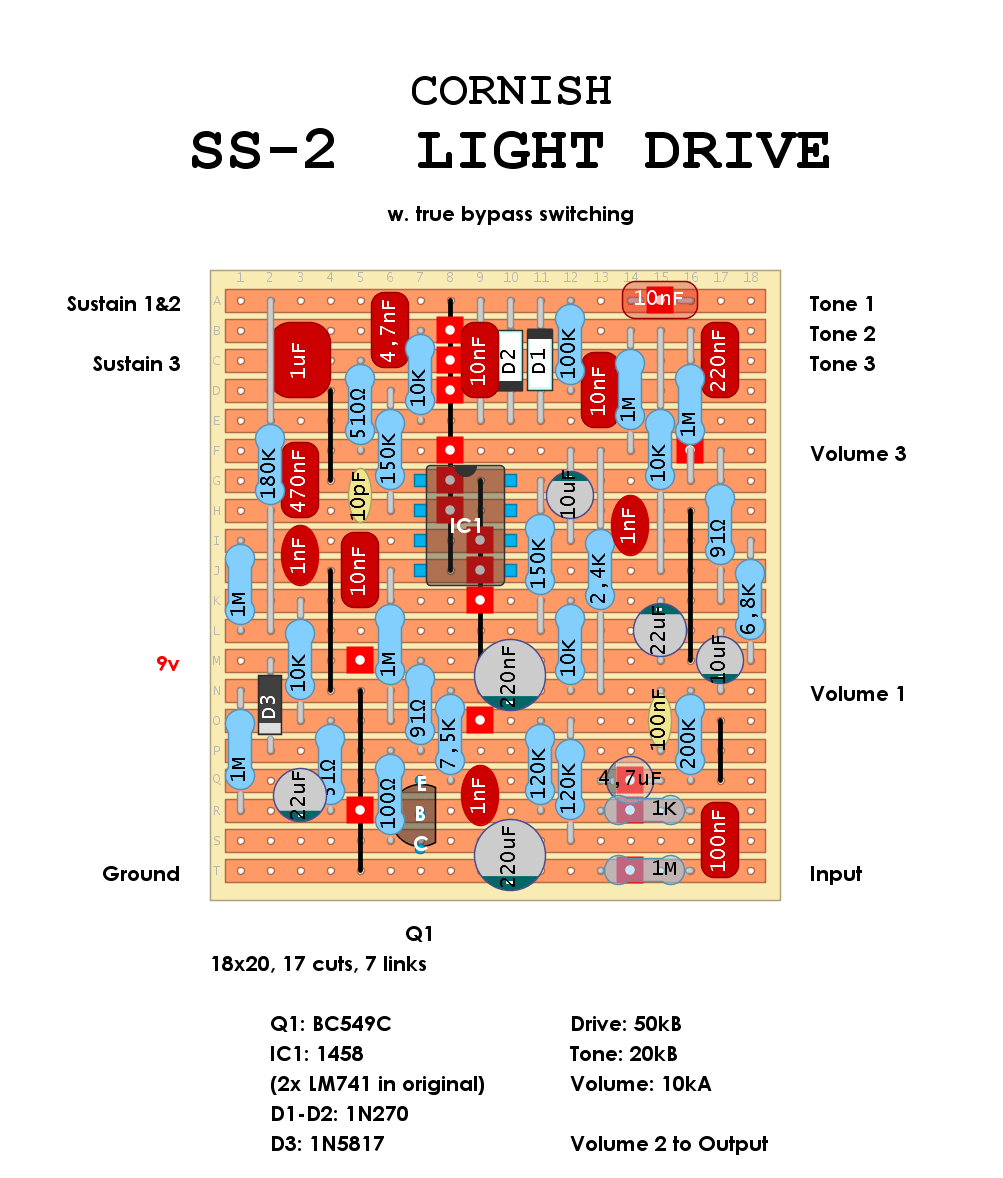

With onboard input buffer. The original had two LM741s but these is replaced with its dual op amp equivalent 1458 to keep the board reasonably small
Last layout for a while. This is sort of a hack job, combining a Rat tuned for more low end with a LED/silicon diodes clipping switch. Then the signal is splitted into two signal paths using the Mid Scoop and Mid Boost tone sections from Boss FZ2. Signal is then fed into a treble cut … Read more
An obscure old japanese ovedrive circuit that looks like your worst 80’s metal pedal. But the reputation is pretty good and it has its small fanbase. And it is not a YATS.
Found this cool little thing at DIYSB. A fairly simple high gain circuit which is supposed to emulate a cranked Marshall using three MOSFETS with a J FET buffer up front. There is a simple treble roll of at the end of the circuit. Write-up, schematic and a demo HERE
