Last layout for a while. This is sort of a hack job, combining a Rat tuned for more low end with a LED/silicon diodes clipping switch. Then the signal is splitted into two signal paths using the Mid Scoop and Mid Boost tone sections from Boss FZ2. Signal is then fed into a treble cut … Read more

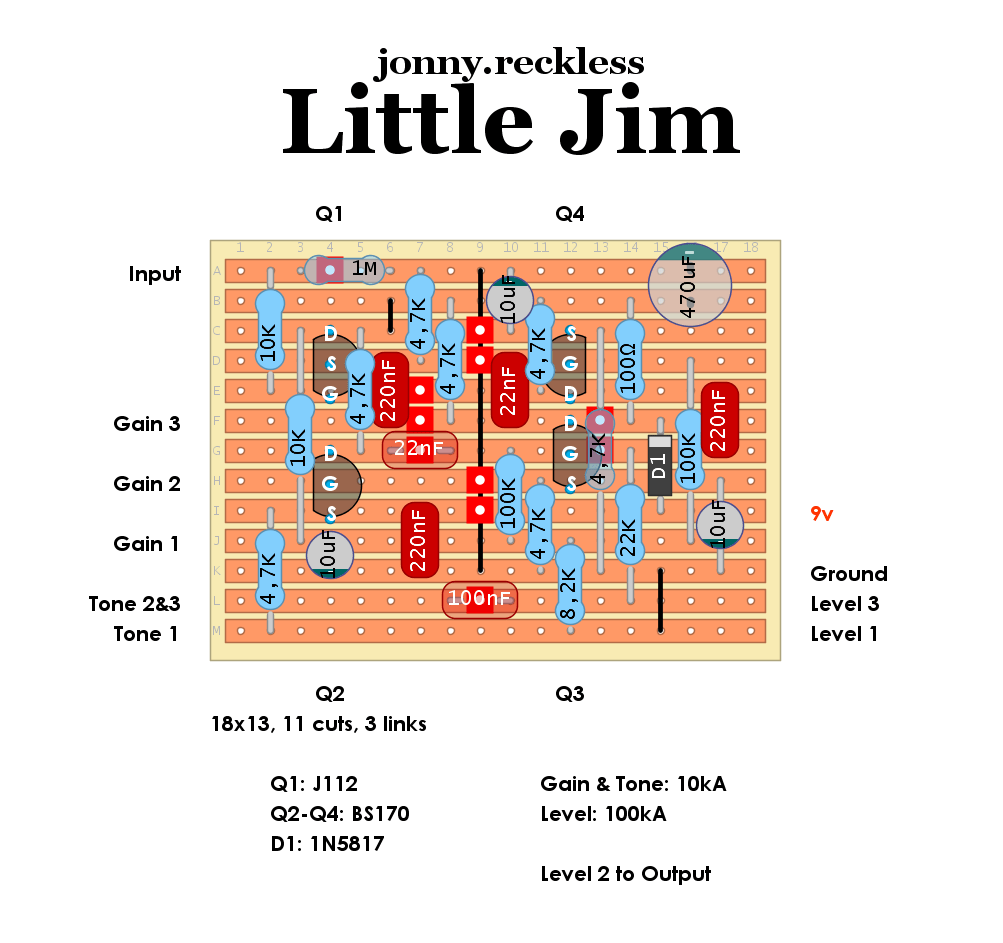

Found this cool little thing at DIYSB. A fairly simple high gain circuit which is supposed to emulate a cranked Marshall using three MOSFETS with a J FET buffer up front. There is a simple treble roll of at the end of the circuit. Write-up, schematic and a demo HERE
At first I thought this was an original Darkglass design but couldn’t find any info on it except for the schematic. But it turns out it is a DIY designed project by zencafe at DIYSB. Schematic and info in this thread, Looks like a fun and quite simple project which looks like a hotrodded Red … Read more
An updated version of a project I was tinkering with a couple of years ago. The idea was basically to find some use for some low leak USSR germaniums other than in Fuzz faces, Rangemasters and Tonebenders, And to do a germanium version of Zvex Box of Rock. Some biasing tweaks was necessary since BJT … Read more
Been fashinated by gyrator tonestacks for a while and when I saw this wah circuit by Olivier Jambois I had to give it a go. Sounds very good and powerful and it is loud! Schematic, a nice writeup and soundclips HERE. Works equally well as a standalone bandpass filter pedal but I recommend to change … Read more
Based on the frequency response of Friedman BE100 amplifier. Added the tonestack at the end of the circuit. Schematic and info HERE
A good sounding low gain/medium gain overdrive (depending on pickups used) with a interesting diode clipping setup and a useful “Woody/Tinny” switch. More info and schematic HERE.
Just a variation of various Death by Audio circuits using reverse beta gain (reversed transistor gain). Initially I was messing with Fuzz War 7 transistor fuzz and eventually got it to work but it was unstable and the decay was very erratic. Replaced the five first stages with the four first stages of Soundwave Breakdown … Read more
