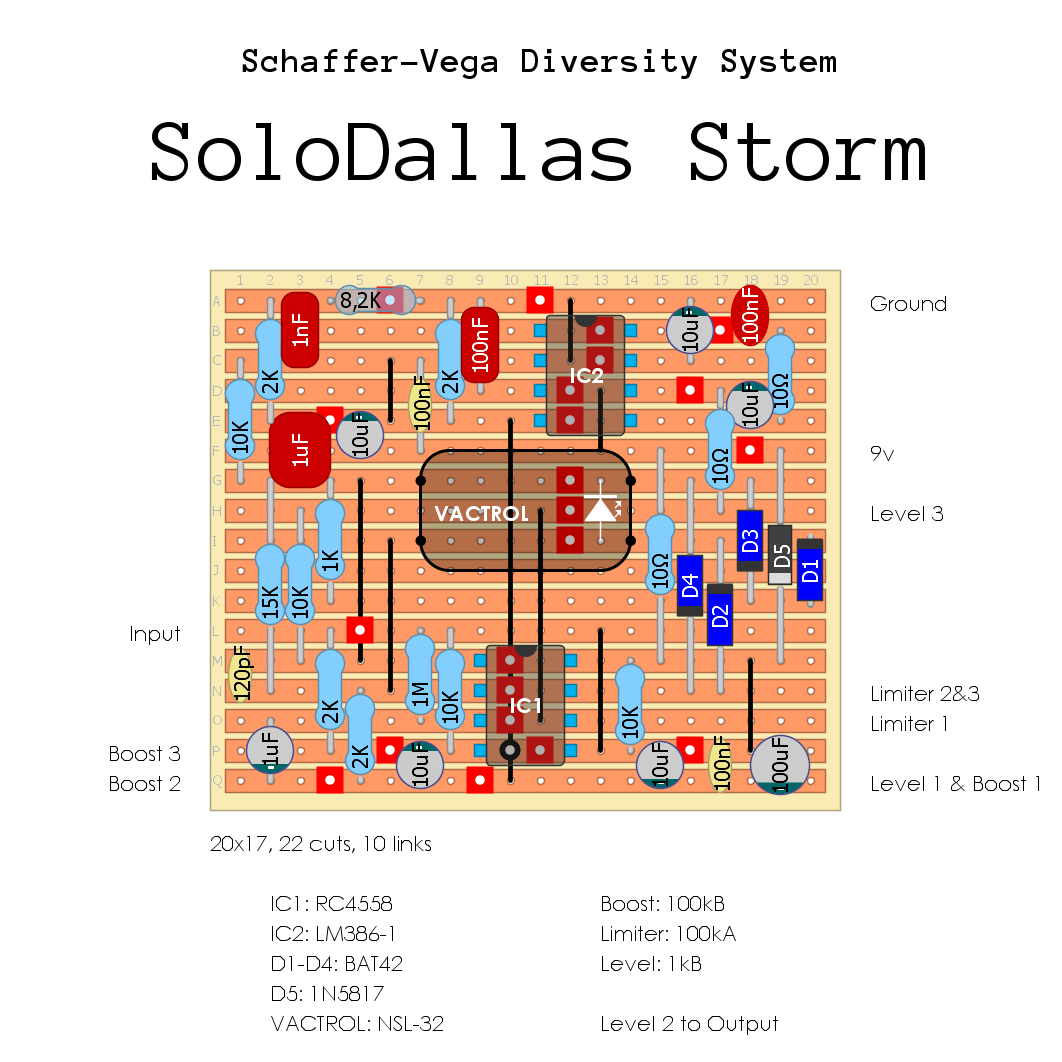

SoloDallas Storm
Had a couple requests for this one. Very cool design and story behind this circuit. Note, the 120pF cap right below the Boost pot, and the 10uF cap just above the LED are present in the original design, but not connected. Check out Aion’s trace blog for more info and schematic. Also, use the 1981 … Read more
DOD FX15 Swell Pedal
Requested and verified by AlexS Original is a buffered effect with input and output connections wired straight to input and output jacks. But you can add a bypass switch, just connect input and output connections to the switch.
