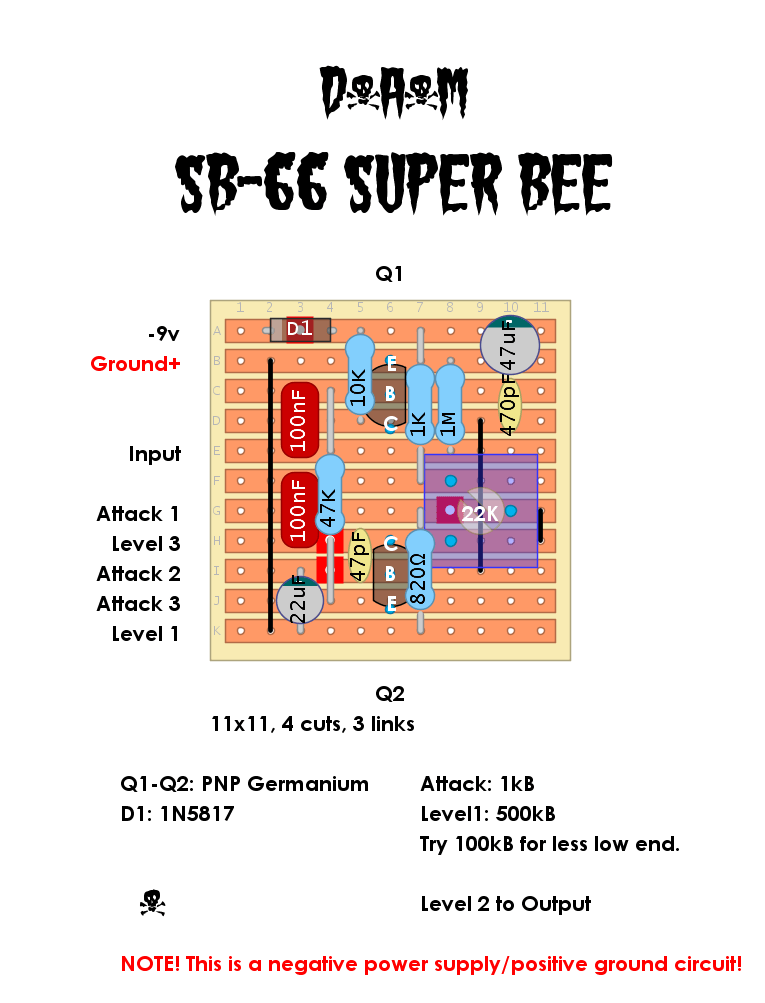

I’m surprised I had not covered this one before, but I suppose it is a MKI, so it should feel fairly familiar. There seem to have been a few different iterations — essentially just different flavours of the MKI, so keep that in mind when choosing transistors and biasing the circuit. Some versions also used … Read more
So this looks like one of the D*A*M one-offs from back in the day – a MKI style fuzz, using a variation on a Zonk layout. There are some departures from stock values, some of which are not entirely clear. Here’s the thread from an old FSB post. Here’s the thread on the D*A*M forum. … Read more
Just a little fuzz face variant from D*AM – the Maggot Brain from 2019. There are some more recent variations on this as well. Could not see the cap and pot values, so just a partial trace. Being a fuzz face, you kind of know what they might be. I mostly breadboard before building a … Read more
Since I’m doing boosters at the moment – the D*A*M Supa Rooster. I’d suggest placing a 1m resistor on the input and output if you get switch pop – a lot of people do this all the time for their rangemaster type circuits. If you want it to look true to the original, use … Read more

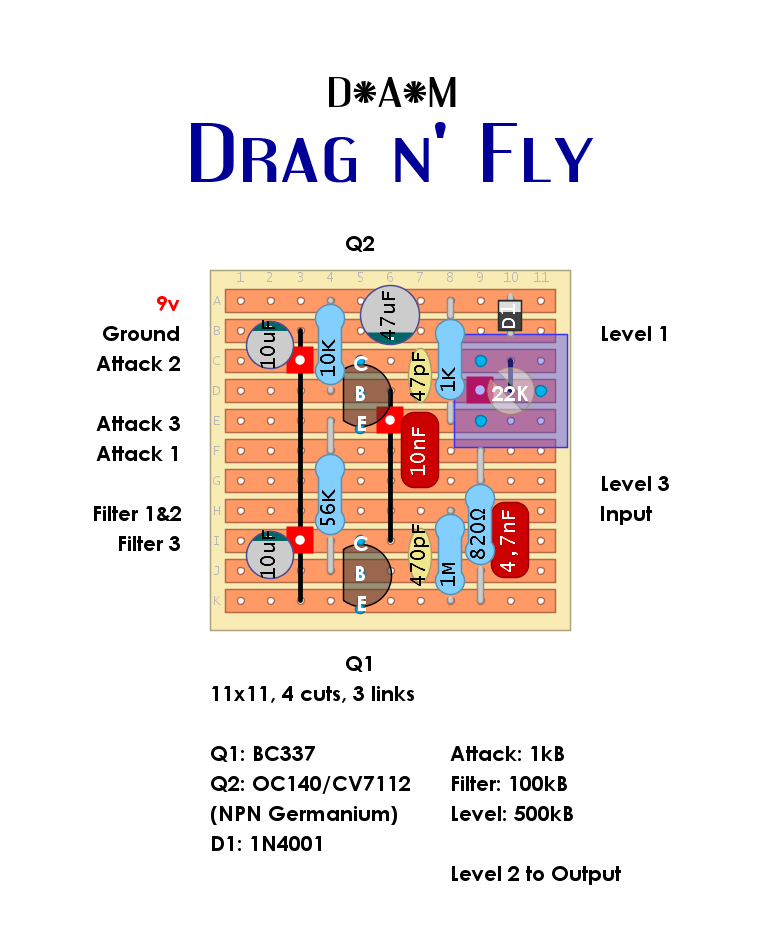

The D*A*M Drag n Fly DF-05 is a hybrid fuzz pedal that combines silicon and germanium transistors, drawing inspiration from the classic Fuzz Face design. What sets it apart is its unique filter control, located at the input of the circuit. This control blends the input signal between a 10uF and a 4n7 capacitor, offering … Read more
This the D*A*M Dragonfly DF-06, which is somewhat confusingly not the same circuit as the D*A*M Drag n Fly. They’re both in the Fuzz Face family, but they each approach the tone control differently. The Drag n Fly does the tone shaping up front, while the Dragonfly does it at the end of the circuit, … Read more
I probably should start by saying that this is not a full trace, as I do not have one in my possession. However, you can put a lot together based on photos online. Mainly on the D*A*M forum here and via some reverb listing that show some different angles. The first three stages don’t appear strange, … Read more
Following on from the previous post, this is the D*A*M version of the Colorsound Fuzz Sound. Thread on the D*A*M forum can be found here. Basically take a D*A*M Fuzz Sound, and change the Fuzz pot to an internal trimmer. Unlike the regular Park 2 knob with a large 25u coupling cap between the darlington … Read more
The El Diablo… A Dave Main creation, part Sola Sound MK1.5 Tone Bender / part Vox Tone Bender – hence the MK1.75 moniker. And why El Diablo? apart from the colour, this thing sounds mean as hell. They appeared to use a couple of different transistors for Q2, but the OC75 remains up front – … Read more
Someone mentioned this in the comments recently (thank you ClassicFuzz), so I thought I’d have a look at the photos on Reverb. The Goldie is a MKI in a MKII enclosure from March 2022, likely to be inspired by this unit found in Germany – which is an absolute train wreck of work. … Read more
