BALDWIN-BURNS: Buzzaround, Tag Board Layout
This is my slightly more spacious take on the original tagboard layout for the Baldwin-Burns Buzzaround. Same size board and the same layout; it’s just spread out a bit more to take advantage of all the lugs available. BALDWIN-BURNS BUZZAROUND – TAGBOARD LAYOUT
JOHN HORNBY SKEWES: Zonk Machine (tagboard layout)
The Hornby Skewes Zonk Machine is pretty much a MKI Tone Bender with some value changes – most notably the 1n capacitor on the input and resistors to collectors. A classic guitar effect from back in the day. ZONK MACHINE – ORIGINAL TAG BOARD LAYOUT TAG BOARD LAYOUT There’s enough room on a 12-lug tag board … Read more

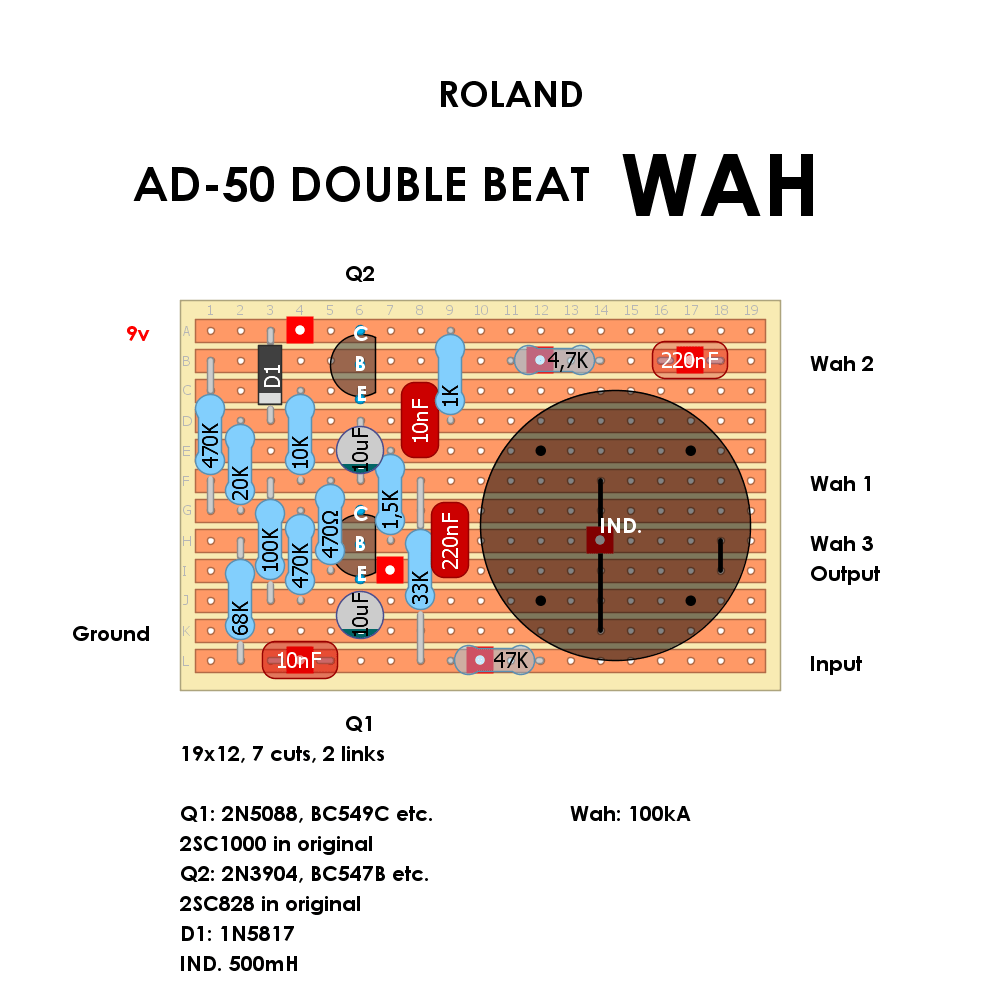

Roland AD-50 Double Beat Wah section
This was a request. Primary intended for the fuzz section but could of course be used as a stand alone unit.
