Cornish G2

Pete Cornish G2 – Vero / Tagboard Layout

2 Jun 202615 Jun 2018 by chords

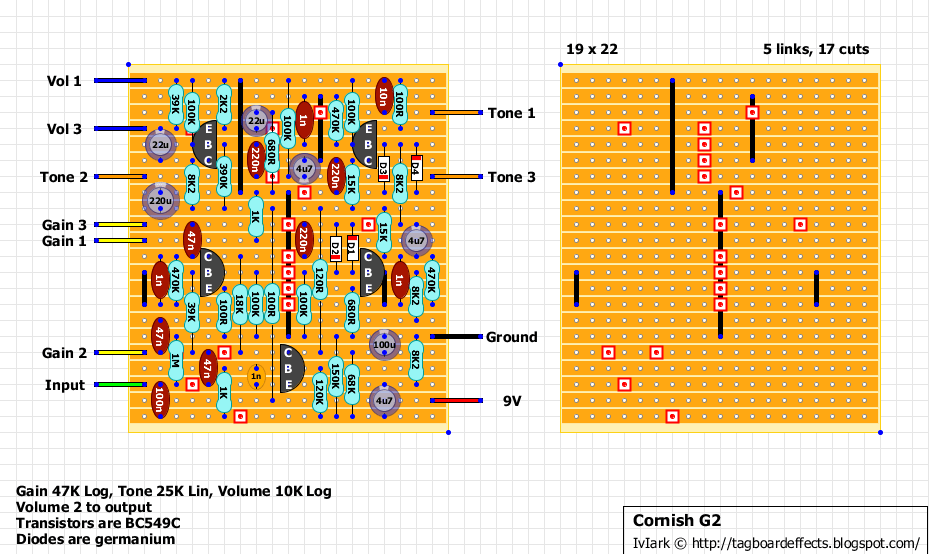

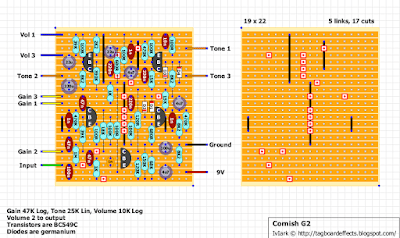

Pete Cornish G2 – Vero Layout

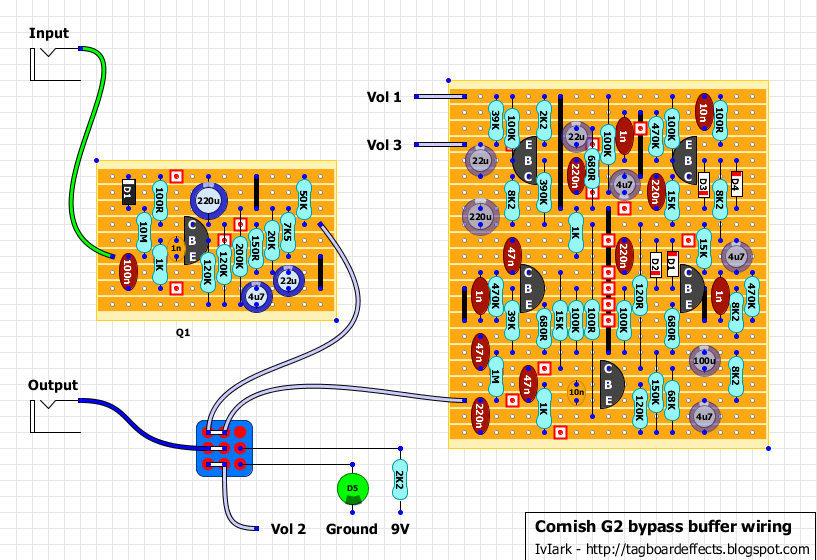

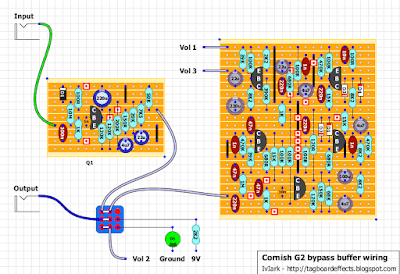

Pete Cornish G2 w/ Bypass Buffer & Wiring

Categories Uncategorized Tags guitarpedalbuilders

Jon Patton Cardinal Tremolo V2

Buffers – Klon Buffer & Pete Cornish Buffer – Vero Layout
