Electro Harmonix Deluxe Big Muff – EH3054C version

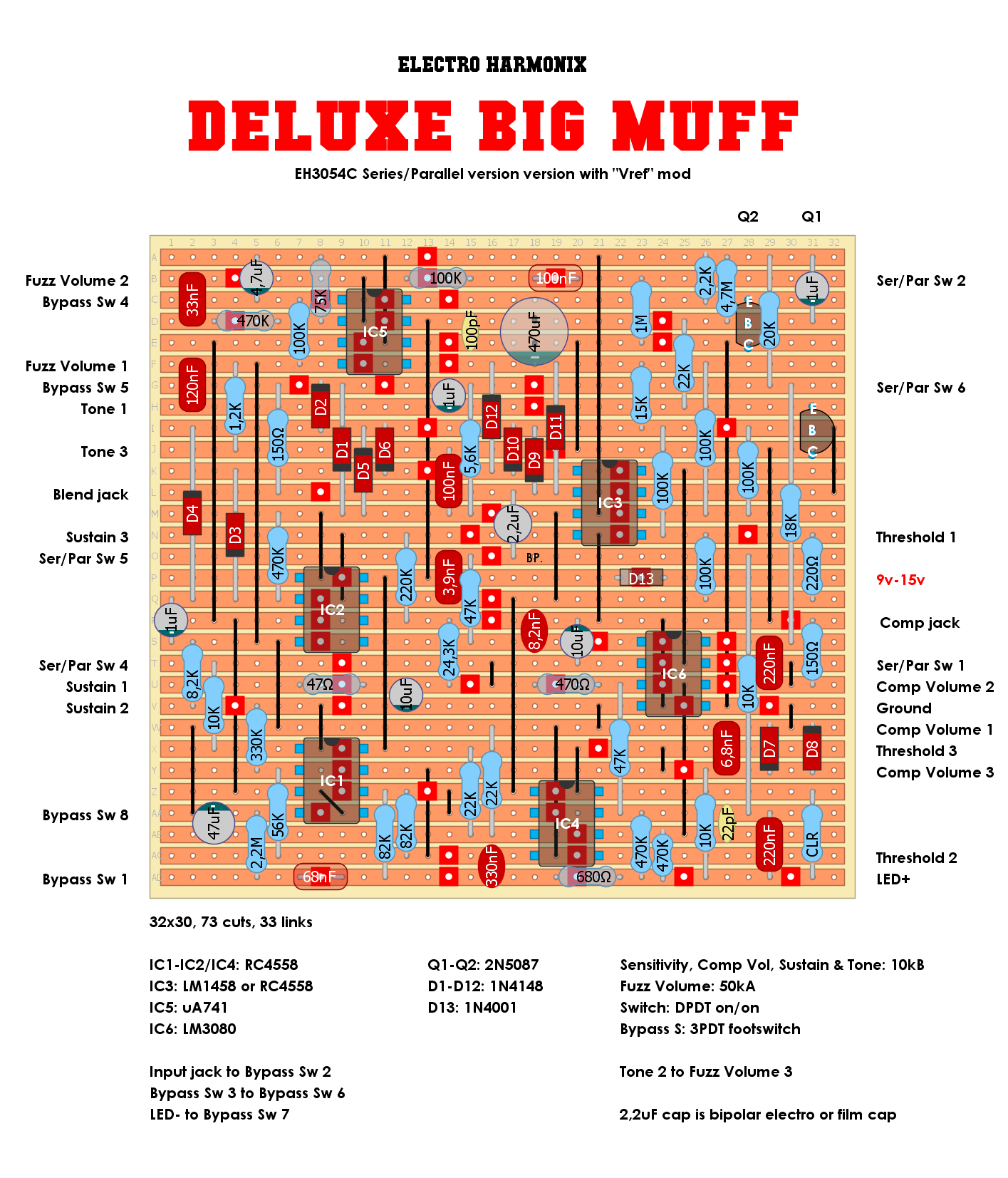

The late EH3054C version of the vintage Deluxe Big Muff. Some improvements had to be done like true bypass and common voltage refrence. Schematic is avaiable HERE.
Month: March 2022
God City N.E.W. The Thing That Should Not Be Preamp

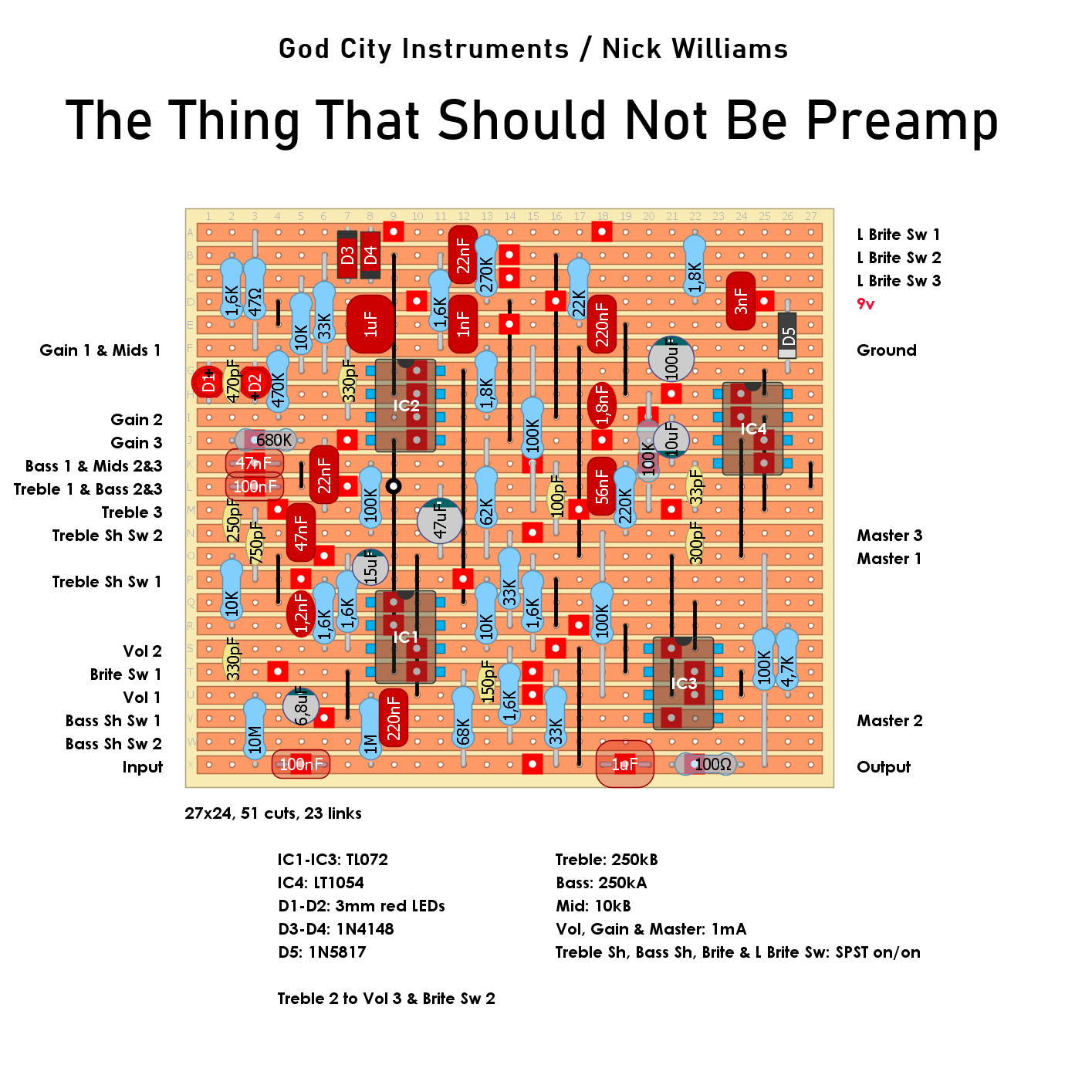

An op amp emulator of Mesa Boogie Mark II C+ which was used by Metallica for Master of Puppets. There is also a an eq board (which is huge!) so that one is for another post. Schematic is avaiable HERE.
God City N.E.W. Buzzaround

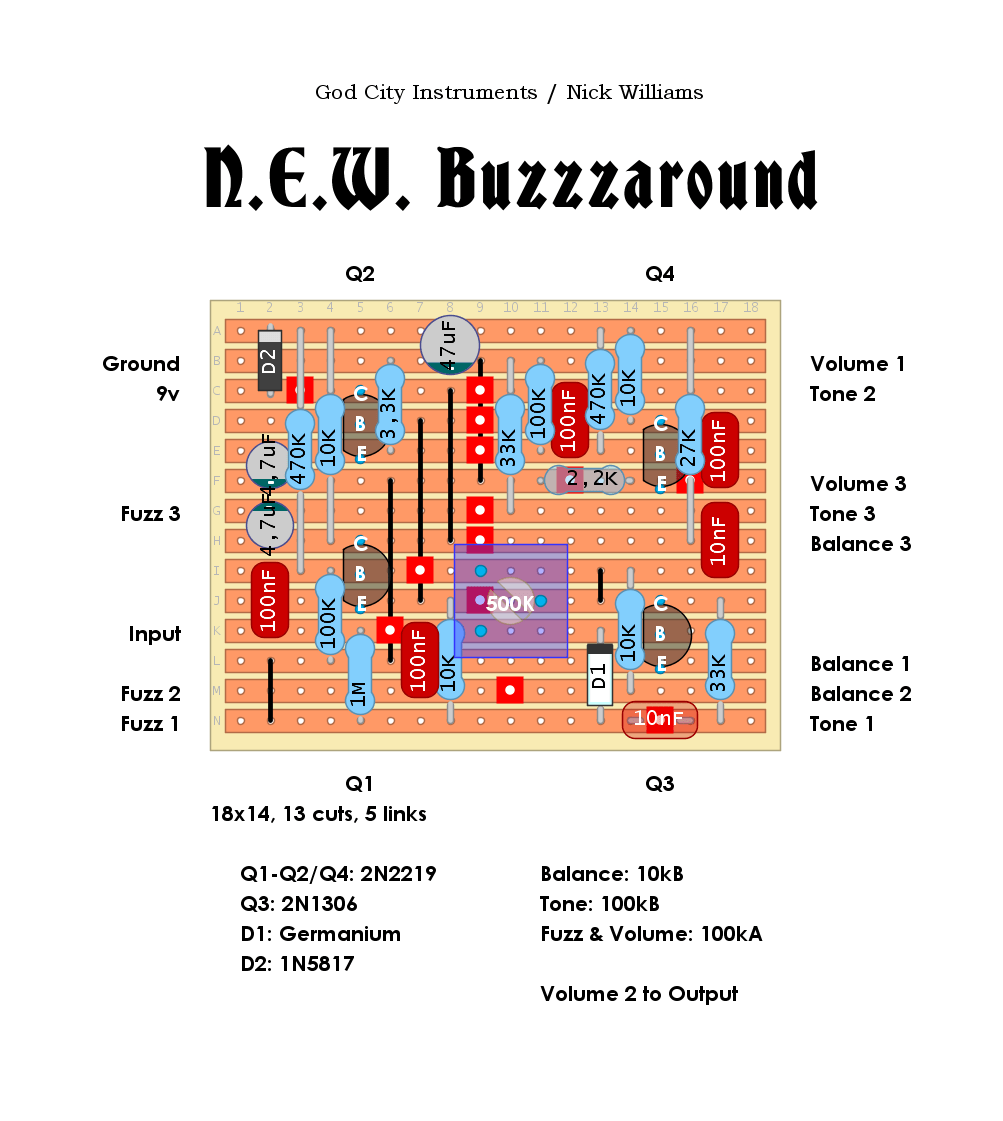

Nick Williams of Dunwich Amps take on the Buzzaround circuit. The most notable mods are the silicon transistors in the preamp section, a big muff tonestack with a recovery stage. Schematic can be downloaded HERE.
Interfax HP-1 Harmonic Percolator – Early silicon version

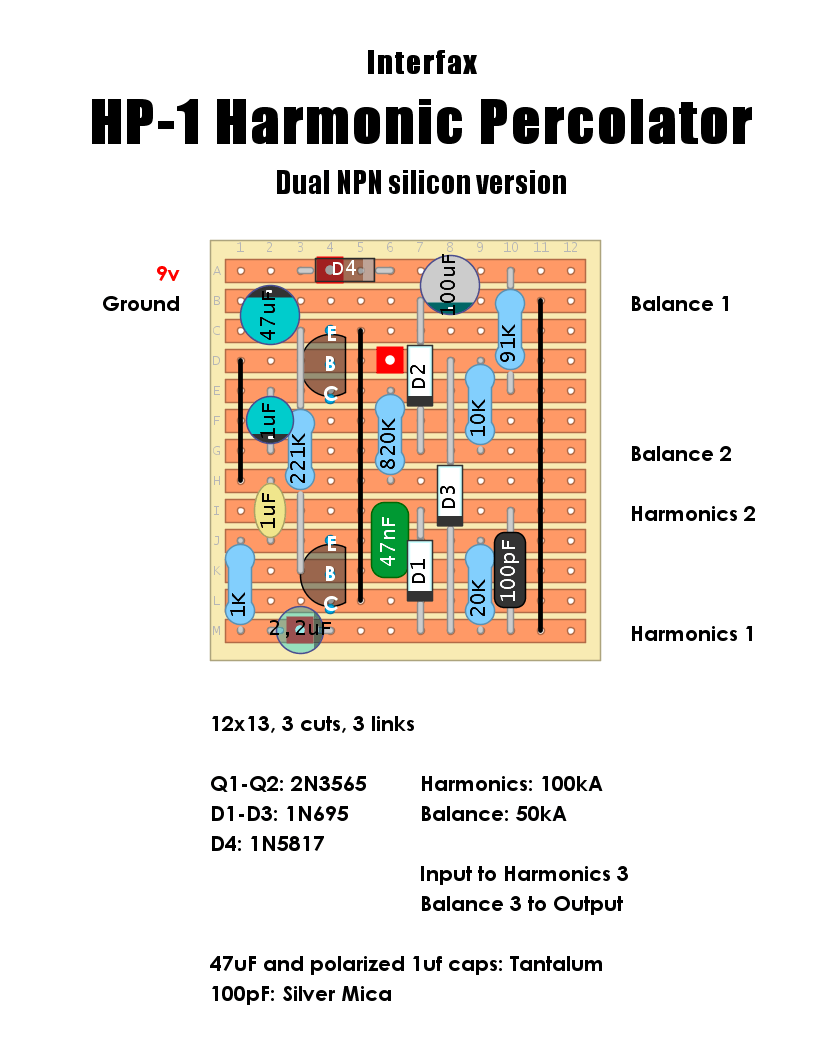

The earliest version of the infamous HP was actually a dual silicon transistor circuit. It also had a few addons and a few big cap fifferncies compared to the later Ge/Si version. Not sure how it sounds but I guess some of might be interested to to try this one out. The 2N3565 transistors had … Read more
Polytone Multivoicer

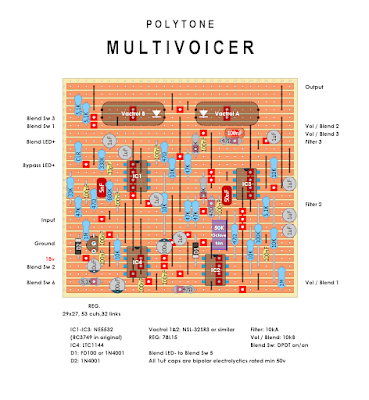

Have anyone heard of this one? This is a a super rare distortion unit with clean blend and octave up. There is no sound demos online but the lucky few ones that have played one says it is quite a wild sounding circuit. Schematic is a avaiable at Deadend Fx.
Dead Astronaut Skyscape Chorus

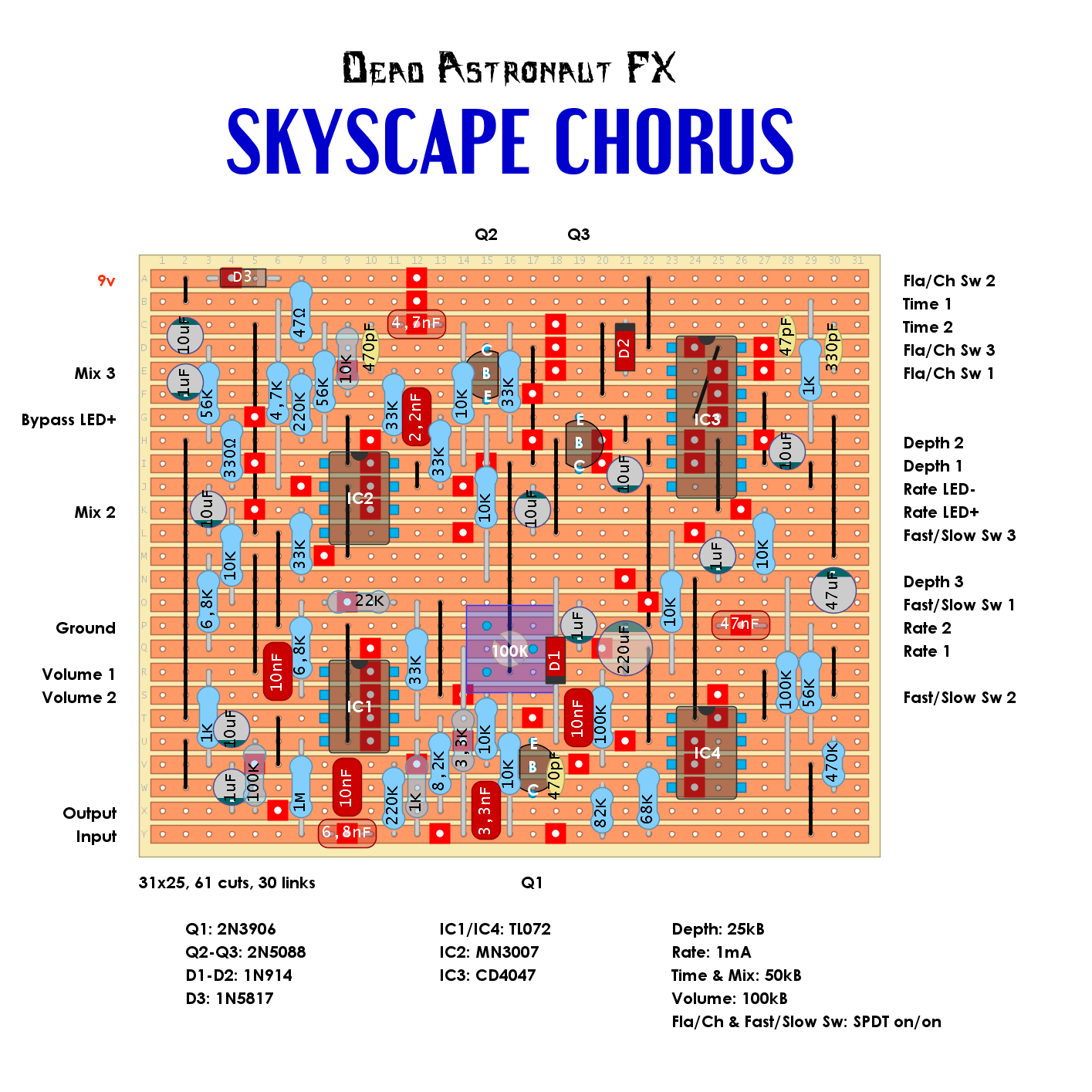

Based on EHX Small Clone but with lots of mods and useful addons. Schematic is avaiable HERE. *Update 231112* Layout is corrected since Erubi spotted some errors
