Danelectro Transparent Overdrive = PaulC Timmy!

6 Jun 202628 Jan 2009 by chords

http://www.freestompboxes.org/viewtopic.php?f=1&t=4065&start=0&st=0&sk=t&sd=a ^ Check that out! The big boys are in town and it looks like they are happy to rip the smaller ones off!

BJF Honeybee Traced?

6 Jun 20269 Jan 2009 by chords

http://freestompboxes.chipin.com/bjf-honey-bee-pedal-to-be-traced That’s what some want to see! Visit the above link to contribute or visit the freestompboxes forum to read the *huge* thread regarding this wonderful gain box 🙂

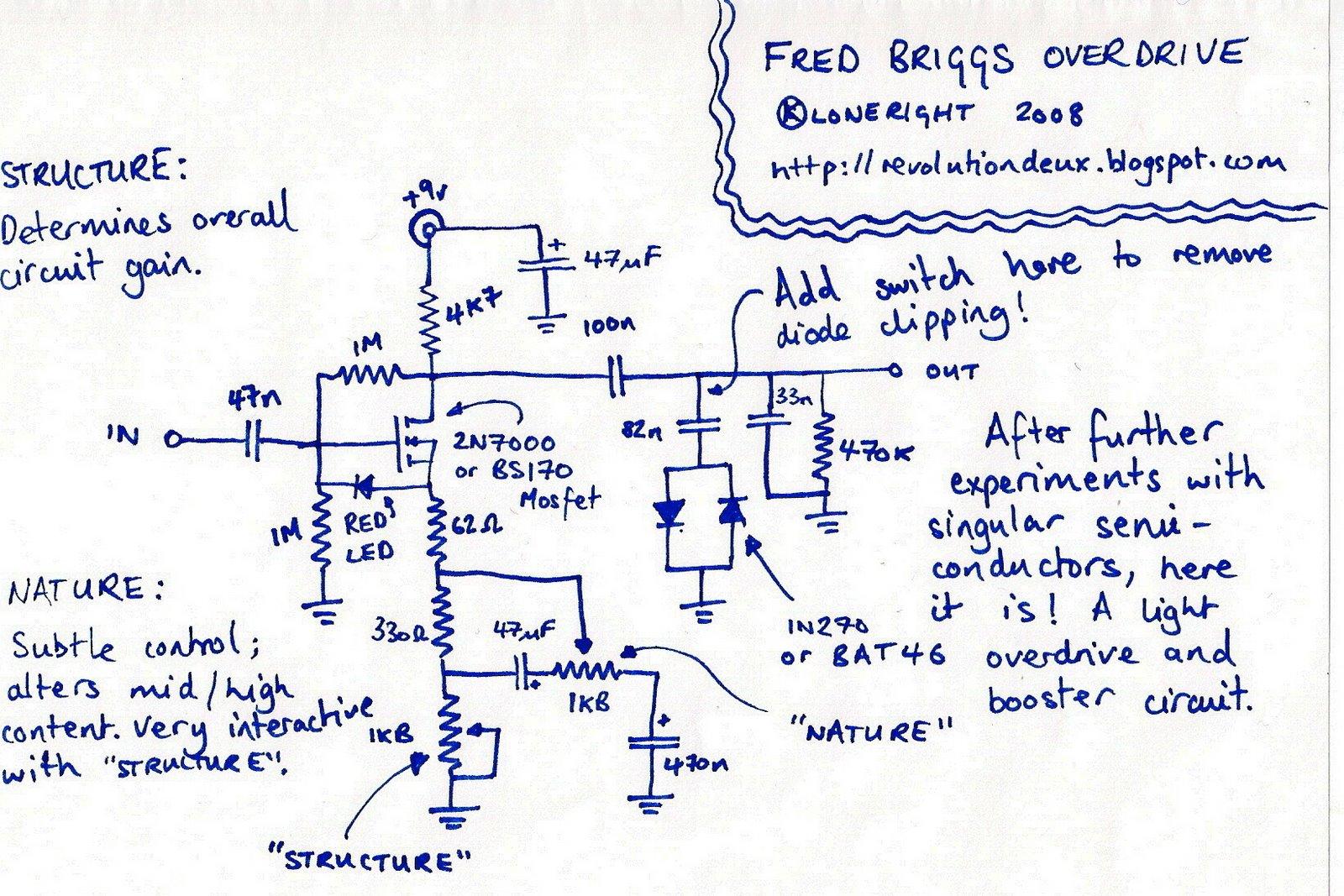

Fred Briggs Overdrive

6 Jun 20269 Jan 2009 by chords

Here it is, a mix of Zvex Super Hard On, Lovepedal COT50 and my very own Fred Briggs magic. My favourite circuit to date 🙂 Build it, it doesn’t disappoint!

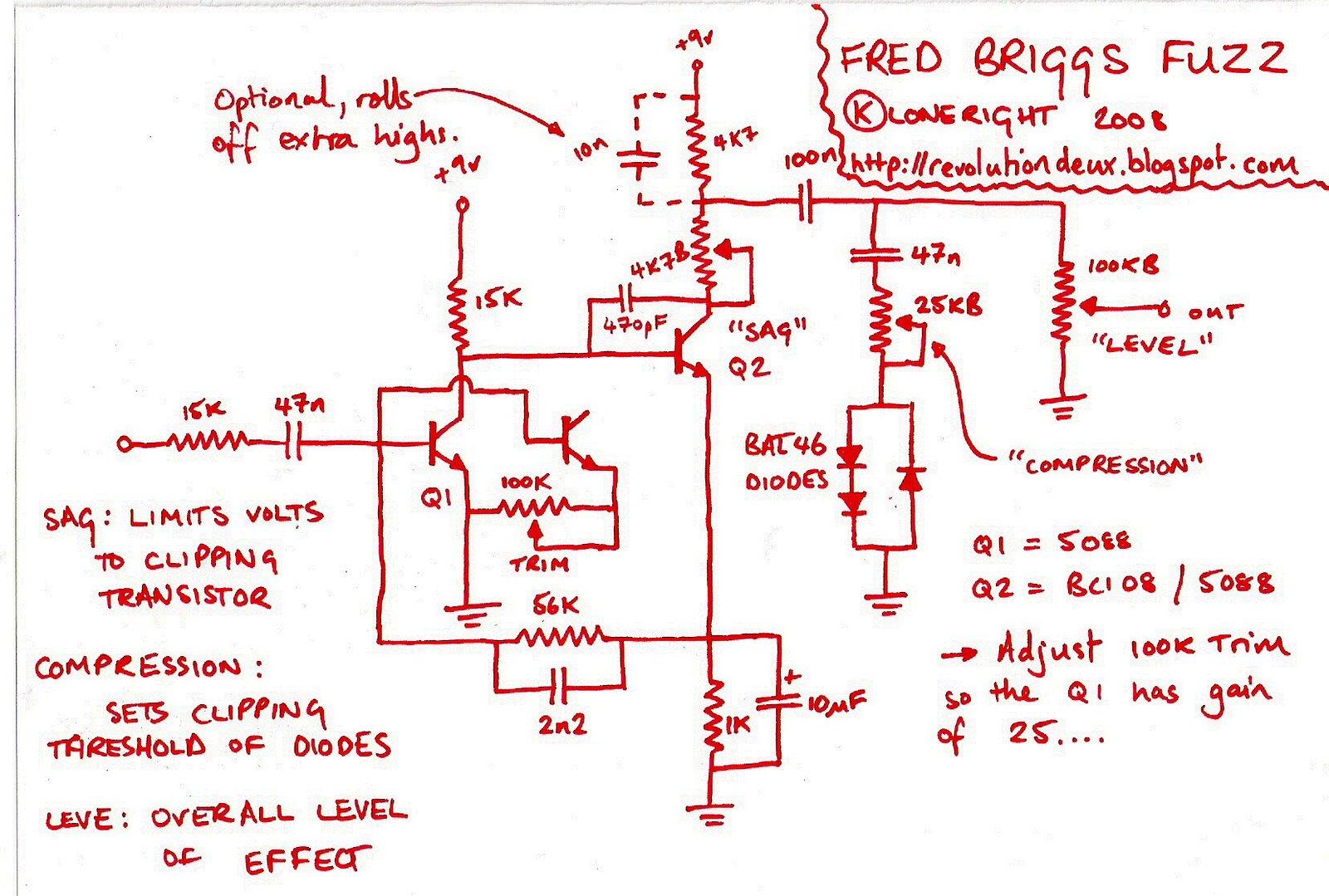

Fred Briggs – Fuzz

6 Jun 20269 Jan 2009 by chords

Here is an interesting take on the classic fuzz face design. Note fun “Sag” control and the piggy backed transistors which allow you to tailor the gain of the first transistor just to taste 🙂 This thing can go from light overdrive to full of spatter fuzz depending on your guitar volume and the sag … Read more

Nick Greer – Green Giant

6 Jun 20266 Jan 2009 by chords

Thanks again to the Freestompboxes community (samhambone for the original scheme and purplepeopleeater for the cleaned up version) we have a schematic for the Nick Greer Green Giant overdrive pedal. As you can see it’s a simple “Electra Overdrive” with a pot added between the diodes and the signal to raise the clipping threshold. It’s … Read more

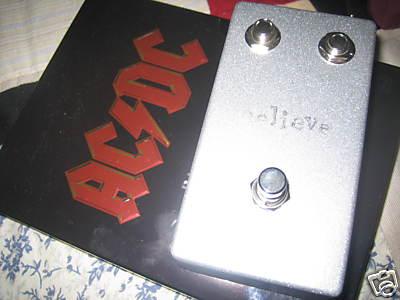

Lovestuff – Porkies = Lovepedal Believe

6 Jun 20264 Jan 2009 by chords

Here is another lovepedal wonder. A gut shot of the early “Believe” pedal. As you can see by comparing the gut shot to the PCB from general guitar gadgets; it’s a Dan Armstrong Green Ringer octave clone…. You can find the General Guitar Gadgets project here. The Green Ringer is a great little octave circuit. … Read more
