Month: December 2023
Umbrella Company Mayonaise Fuzz
A japanese boutique Big Muff variant with some bell and whistles. The 1979 switch adds a different stexture and aggression to the distortion. Doping switch is basically and Mid/Scoop tonestack switch. And the Mode switch (which is an internal DIP switch in stock units) toggles between two values for both clipping caps which adds some … Read more
Lastgasp Art Laboratories “46” Sooperfuzz
Traced by Deadend Fx. I opted for a layout for the stock circuit without the three additional Deadend Fx controls. Note that there is some intended noise is coming through with the Gain pot is dimed which is perfectly normal, it a part of the design. Schematic is avaiable HERE.
Electro-Faustus EF103 Guitar Disruptor
The perfect device for some X-mas tunes…😃 Schematic is avaiable HERE.

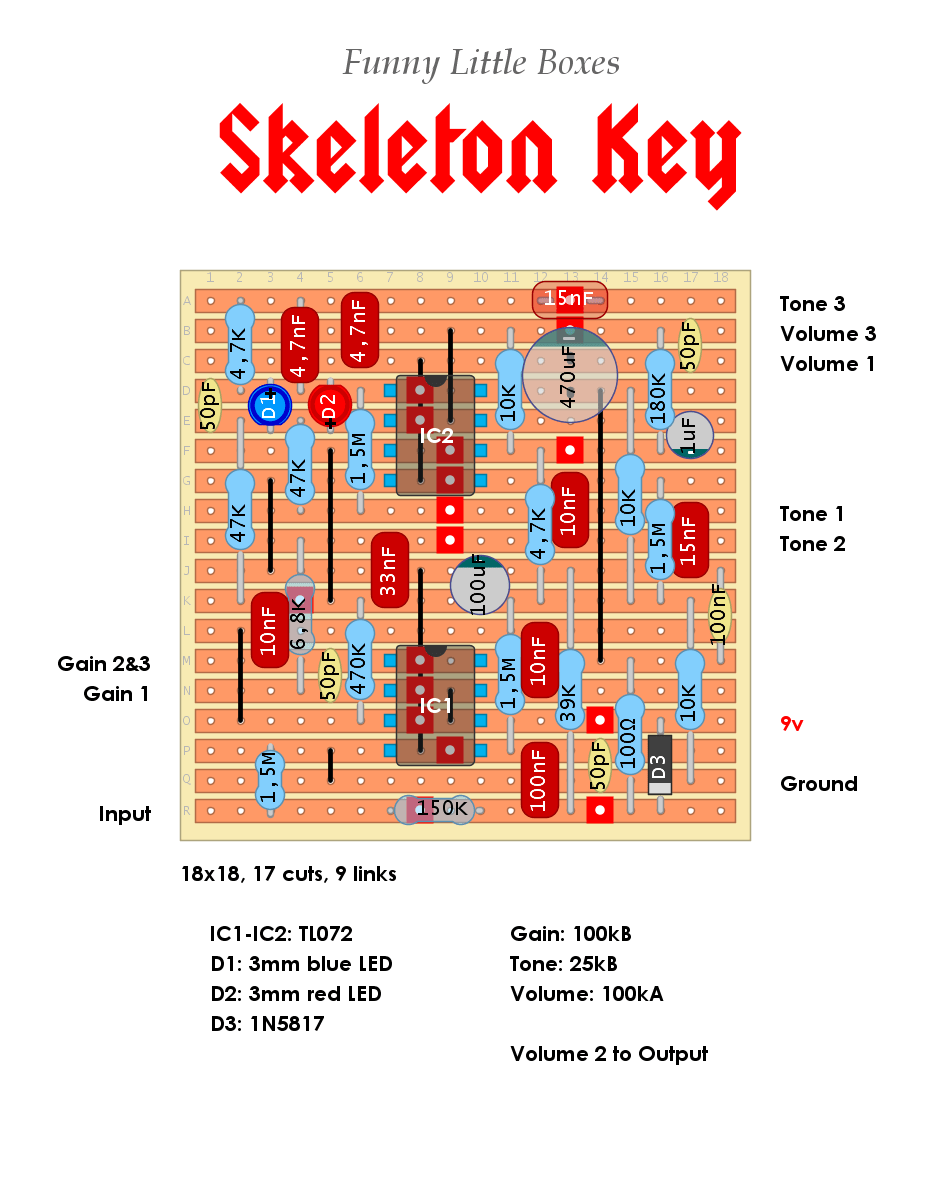

Funny Little Boxes Skeleton Key
This is supposed to be a QOTSA in a box. According to demos online, this and an amp on the verge of breakup will almost get you there… The 470uF power filter cap is a bit overkill, you can use a 100uF instead. Schematic is avaiable HERE.
Creepy Fingers Regulus 8 Fuzz
Long time, no see. No layouts in December so far for numerous reasons. For the most part, things have been crazy busy over here, mostly with fun stuff. And I needed a small break from pedal building in general… And I felt a bit resenment that Google and/or Firefox that can’t fix the bug that … Read more
