Blackstone Appliances MOSFET Overdrive

4 Jun 202618 Feb 2023 by chords

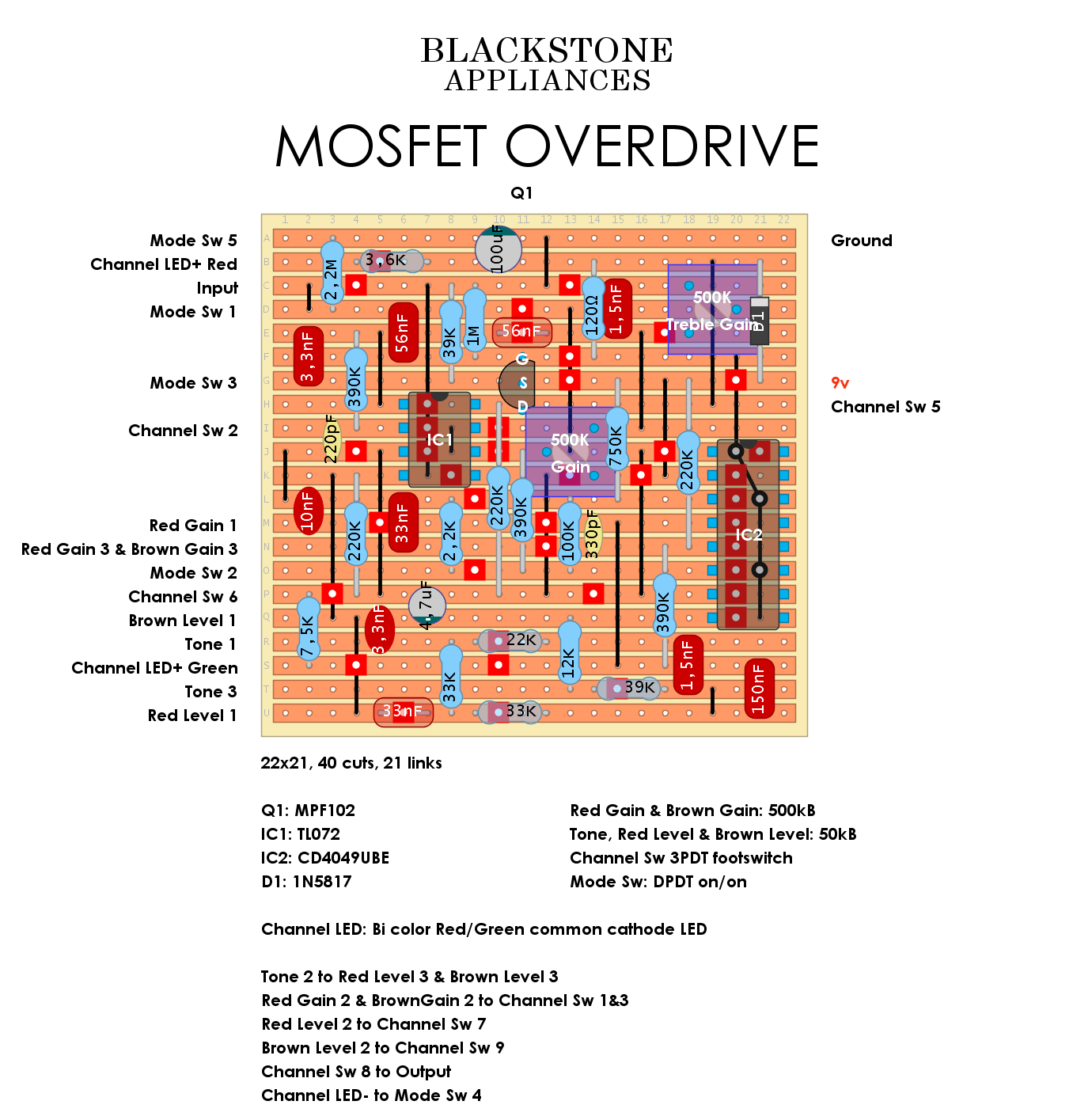

Blackstone MOSFET Overdrive dcb295dc4fd9

Schematic is avaiable HERE.

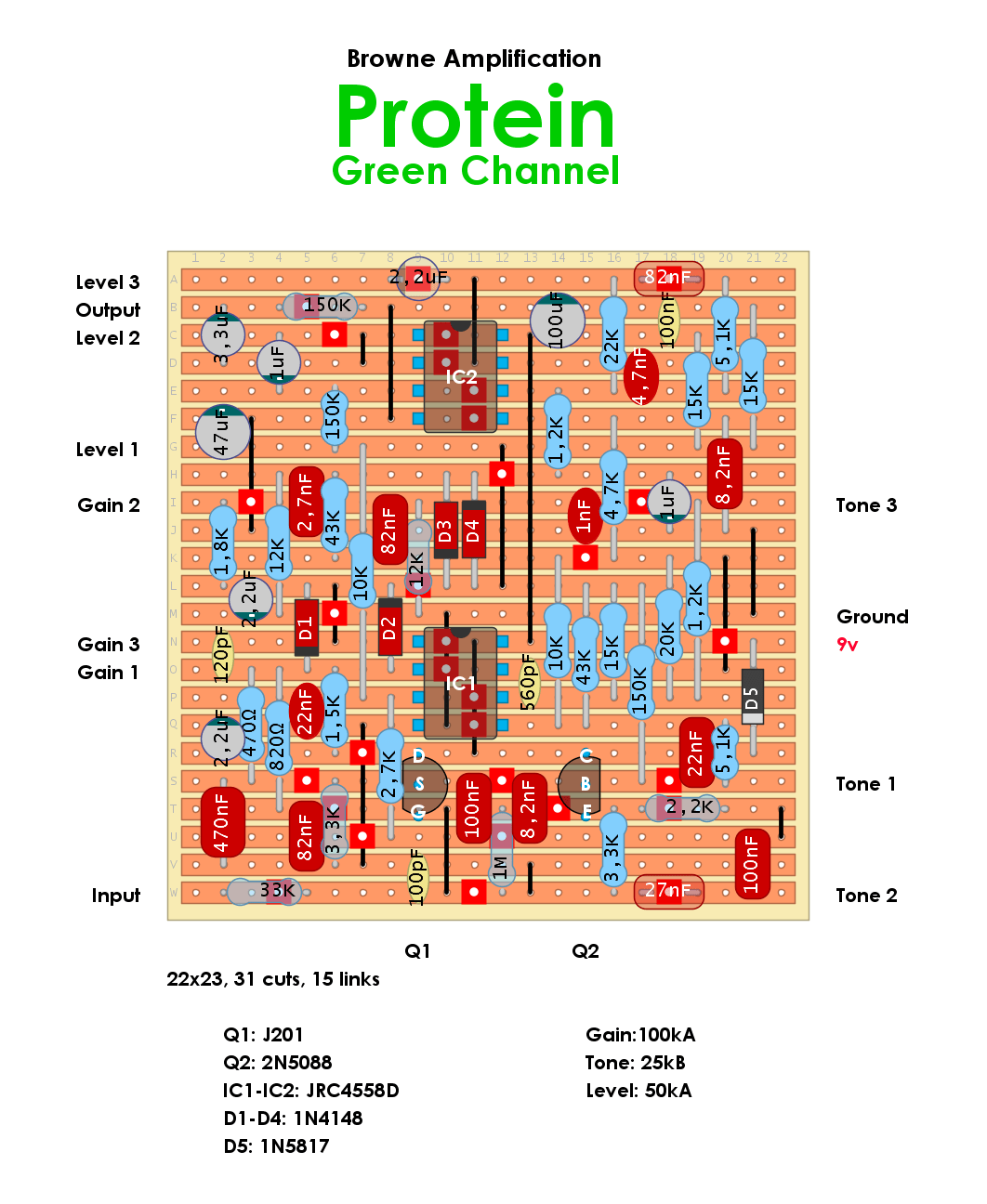

Browne Amplification Protein Green Channel

4 Jun 202617 Feb 2023 by chords

Per request. Schematic is avaiable HERE.

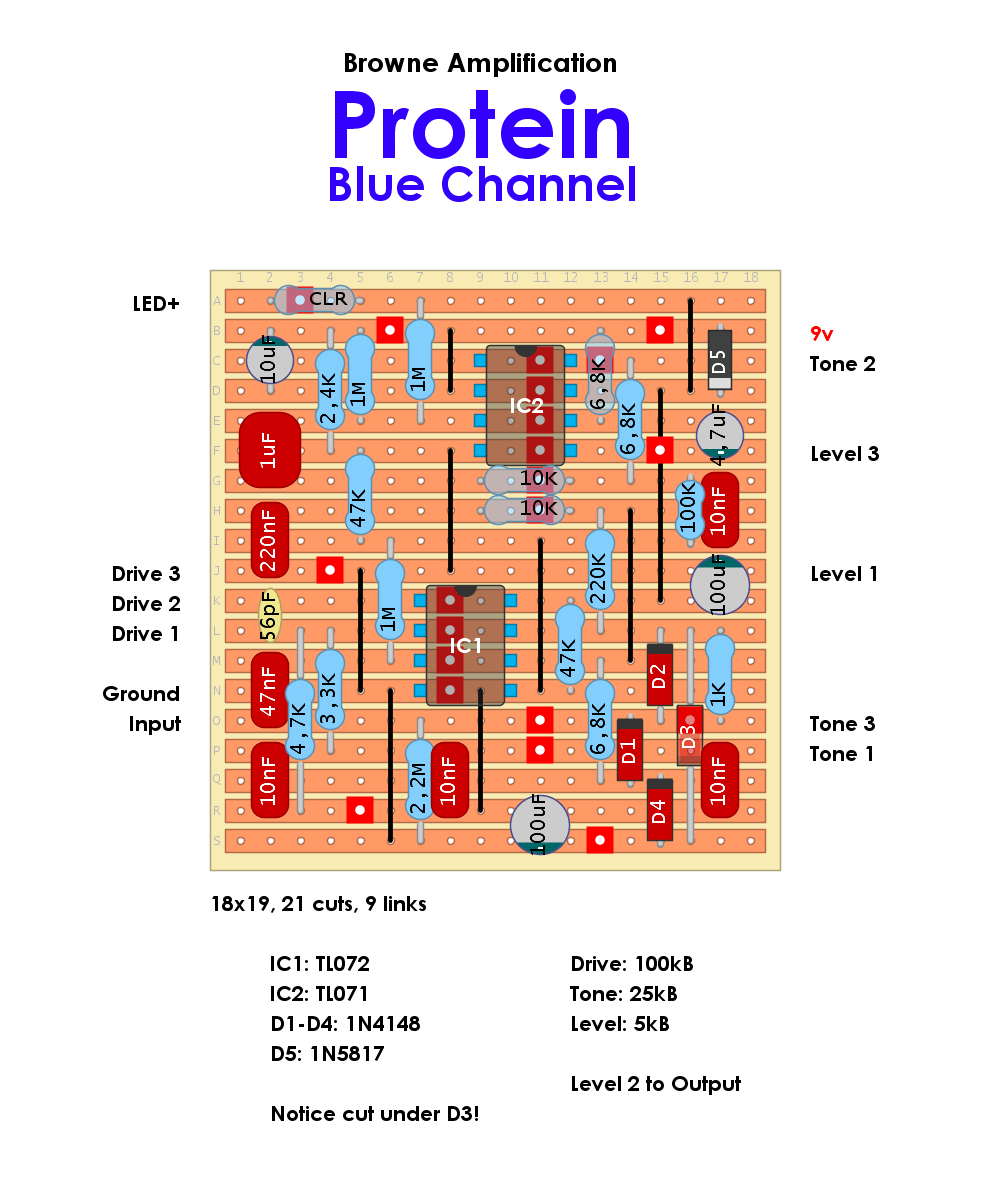

Browne Amplification Protein Blue Channel

4 Jun 202617 Feb 2023 by chords

Schematic is avaiable HERE.

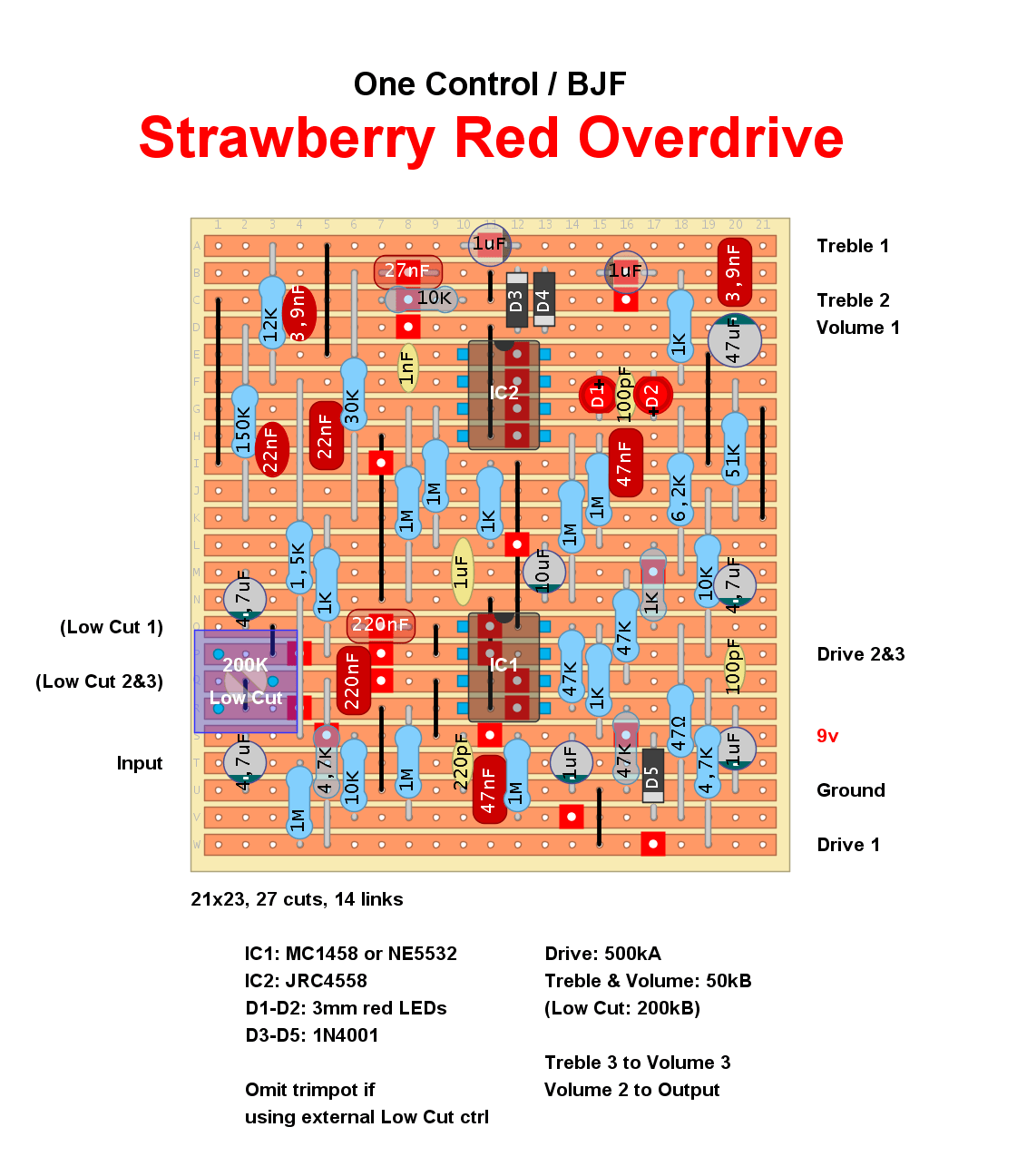

One Control / BJF Strawberry Red Overdrive

4 Jun 202615 Feb 2023 by chords

Schematic is avaiable HERE.

Chuck D. Bones / PedalPCB CMOS Overdrive Deluxe

4 Jun 20265 Feb 2023 by chords

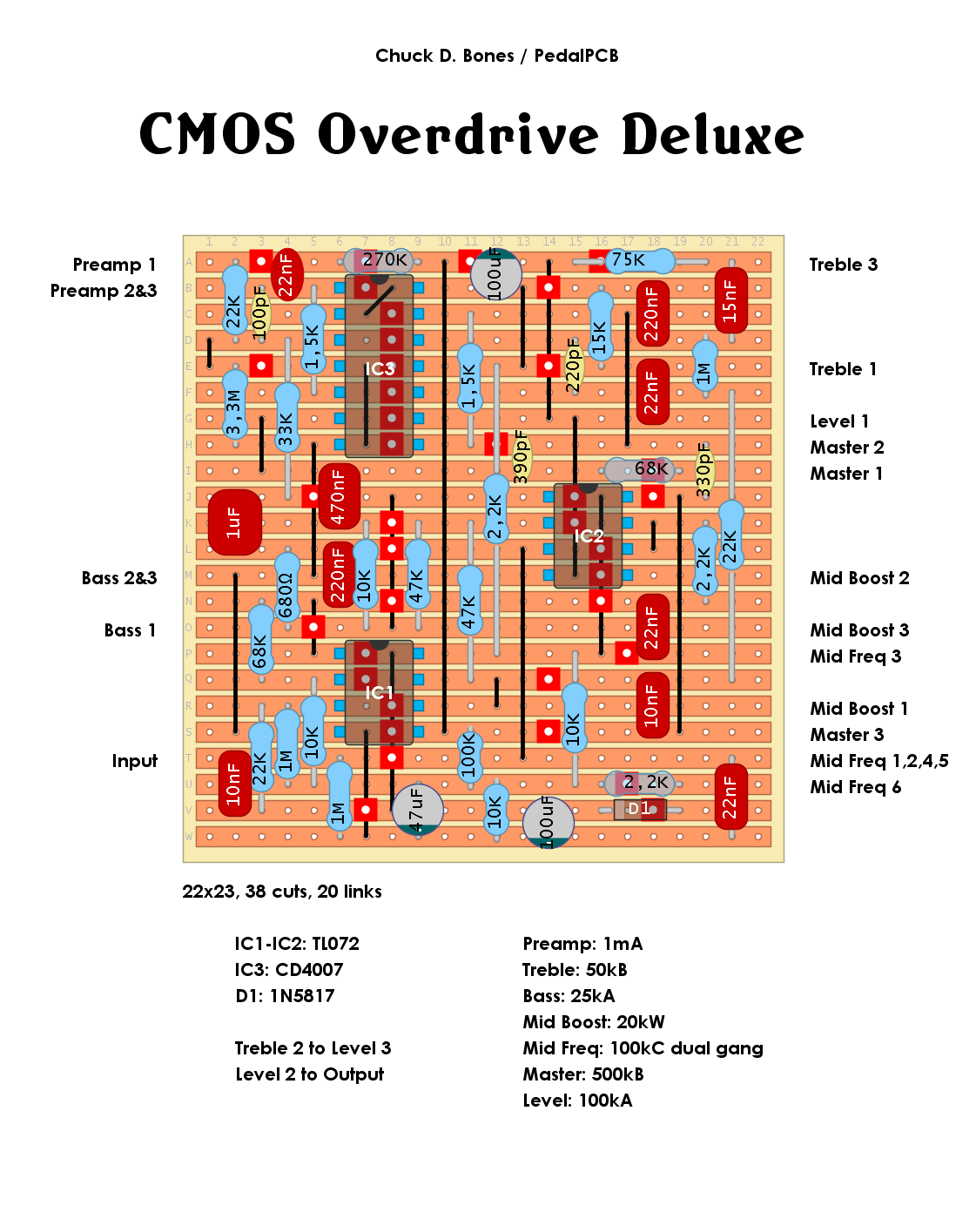

PedalPCB CMOS Overdrive Deluxe 8933e12aae31

Per request. Schematic can be found HERE.

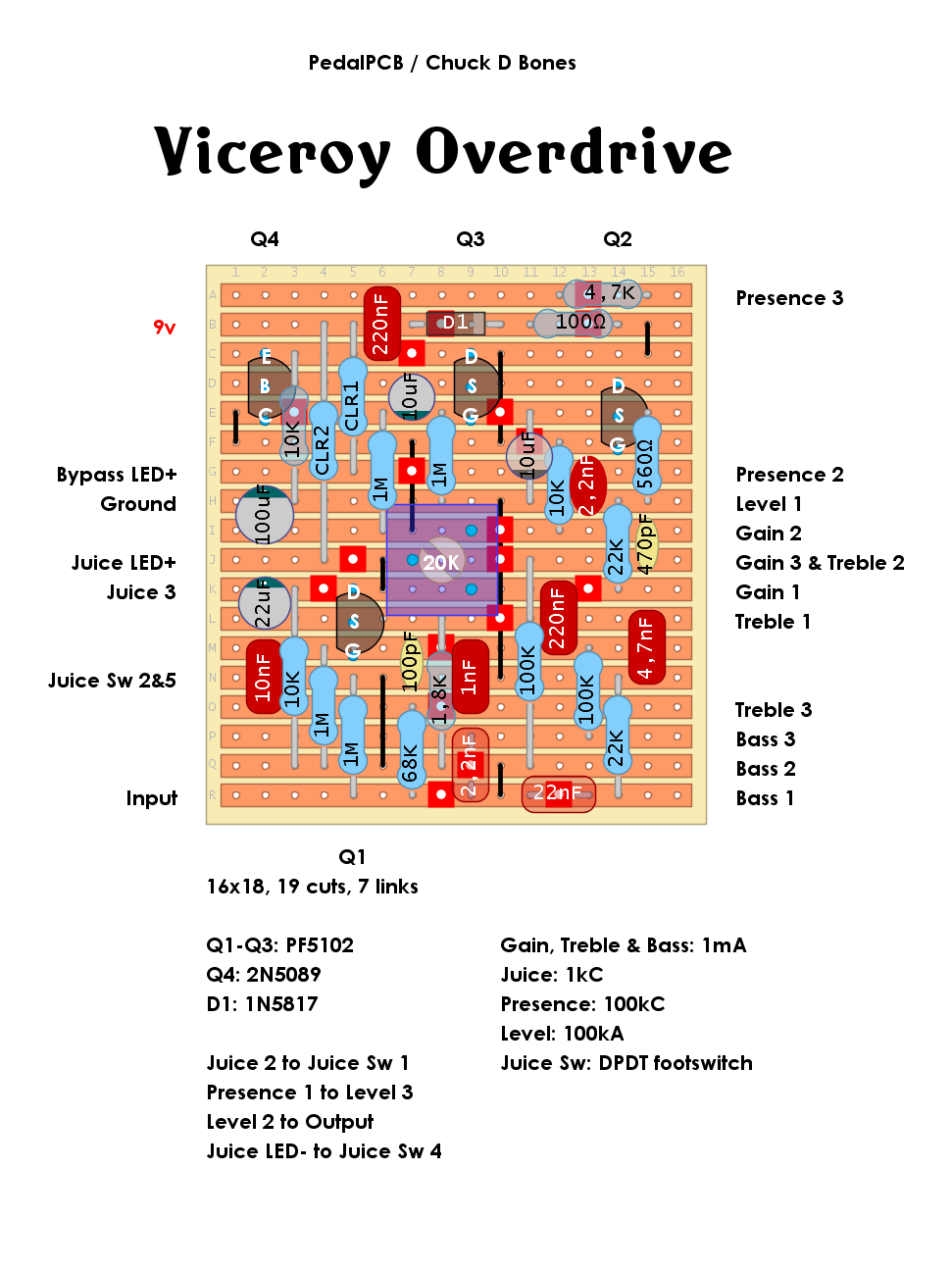

PedalPCB Viceroy Overdrive

4 Jun 20265 Feb 2023 by chords

Chuck D Bones improved version of EQD Monarch Overdrive. Schematic can be found HERE.

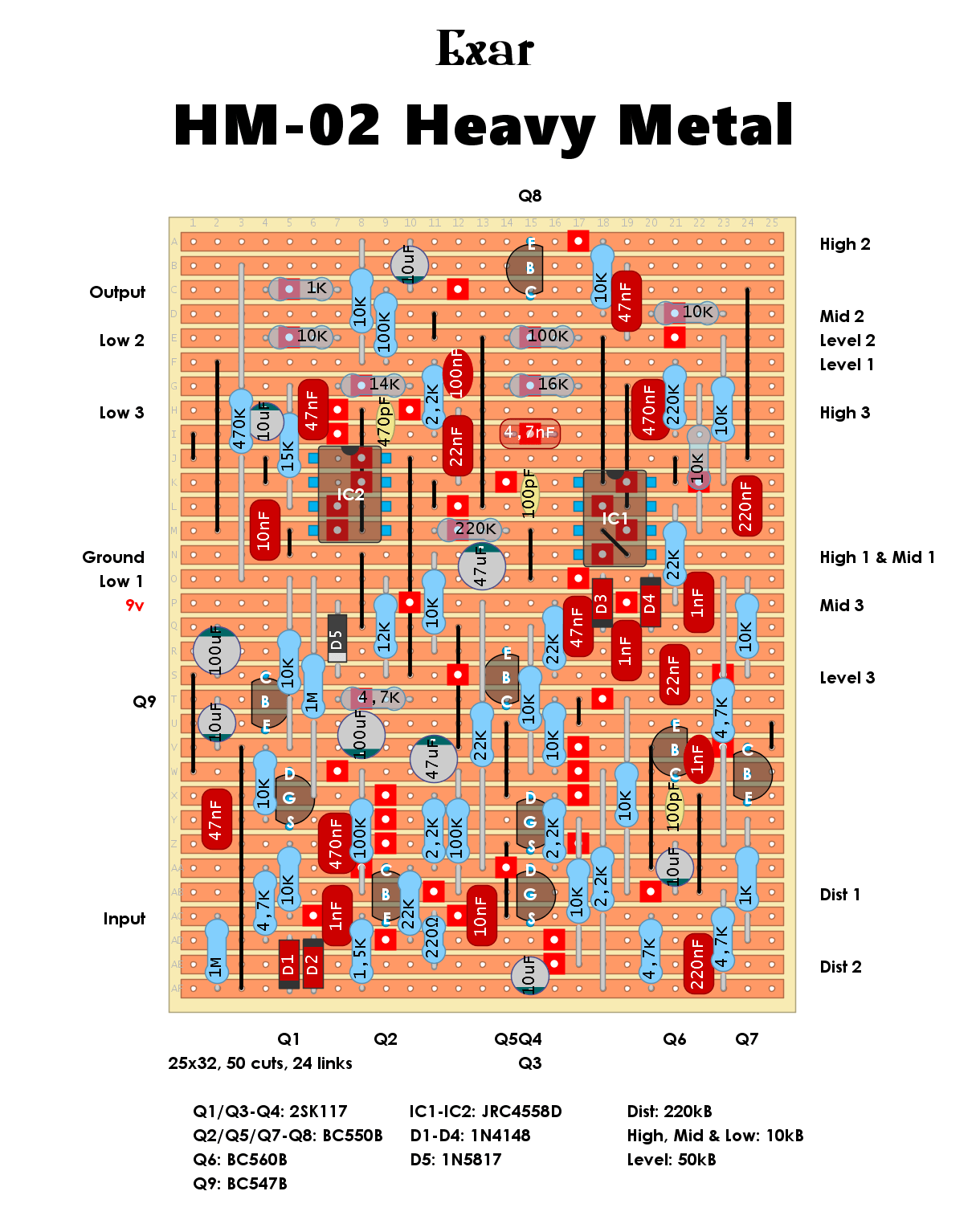

As many others, I thought this was just a clone or a close derivate to the Boss HM2. We couldn’t be more wrong. Vitali from drunk beaver pedals opladed a schematic for it and it reveals a quite an interesting circuit. The distortion section resembles Boss DS2 with a discrete op amp and hard clipping … Read more
