Chris just sent me an another Spin FV-1 based layout. And he verified it. “This is a layout for the Earthquaker Organizer Polyphonic Organ Emulator that I drew up using the Pedalpcb schematic. Two things about this layout (which is verified – I have all ready built it): 1) it addresses the volume drop issue … Read more
Traced by moushh. This thing looks quite wild. With the gain control set at minimum, you have the stock Acapulco Gold gain setting. Turn it up and you’ll have much way much more gain avaiable… The Bright control is an welcome addition, a simple adjustable low pass filter.
Here is another great layout by Sebastian! In his own words… Just wanted to share a layout I did of the RE-20 circuit from the 1776 Multiplex Echo Machine. It seemed like there aren’t a lot of options for delay effects with parallel, independent delay controls. For the sake of simplicity (and a layout that … Read more

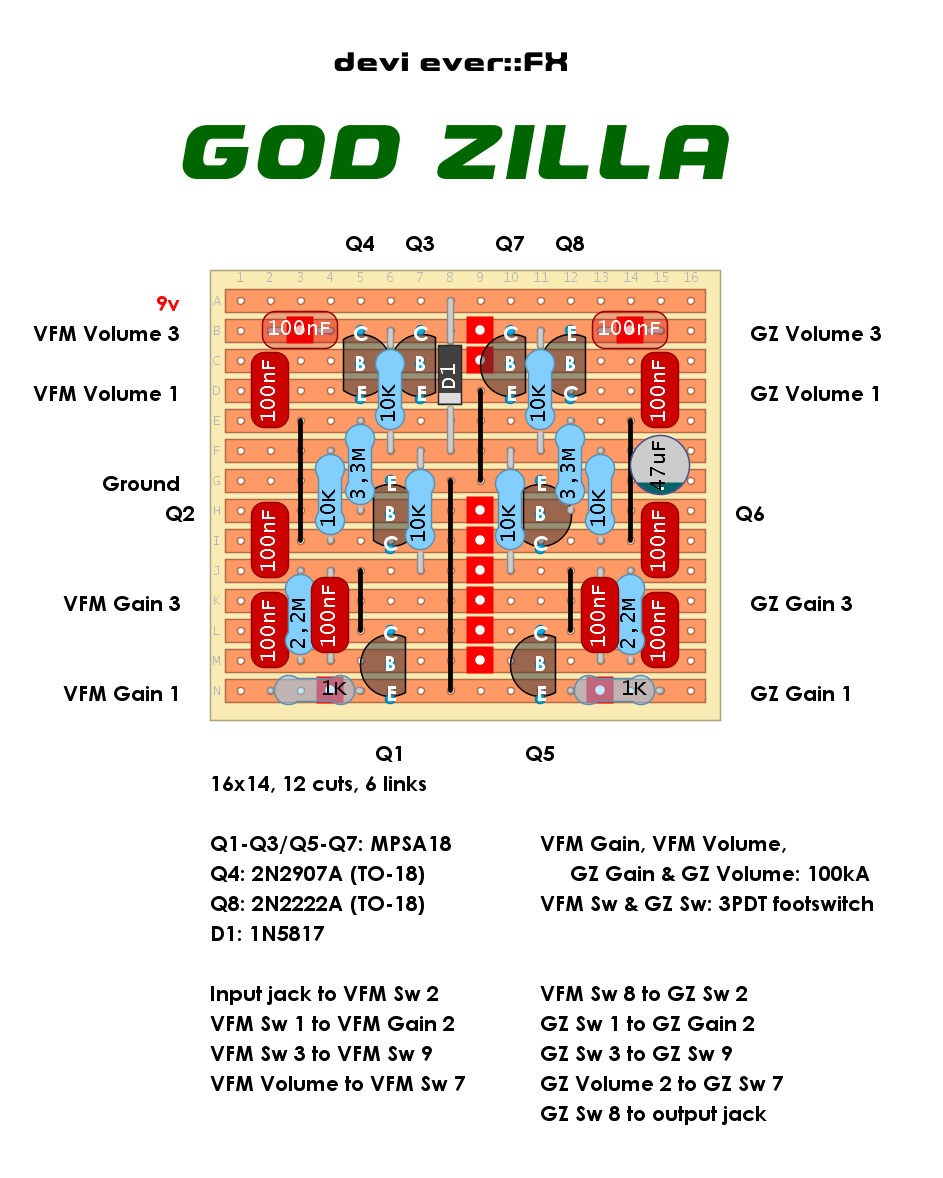

Another Devi dual pedal. This is basically a Vintage Fuzz Master going into Goddess Zero, so this is two unruly octave up fuzzes in this layout.
