Month: February 2025

VOCU Hybrid Overdrive

4 Jun 202628 Feb 2025 by chords

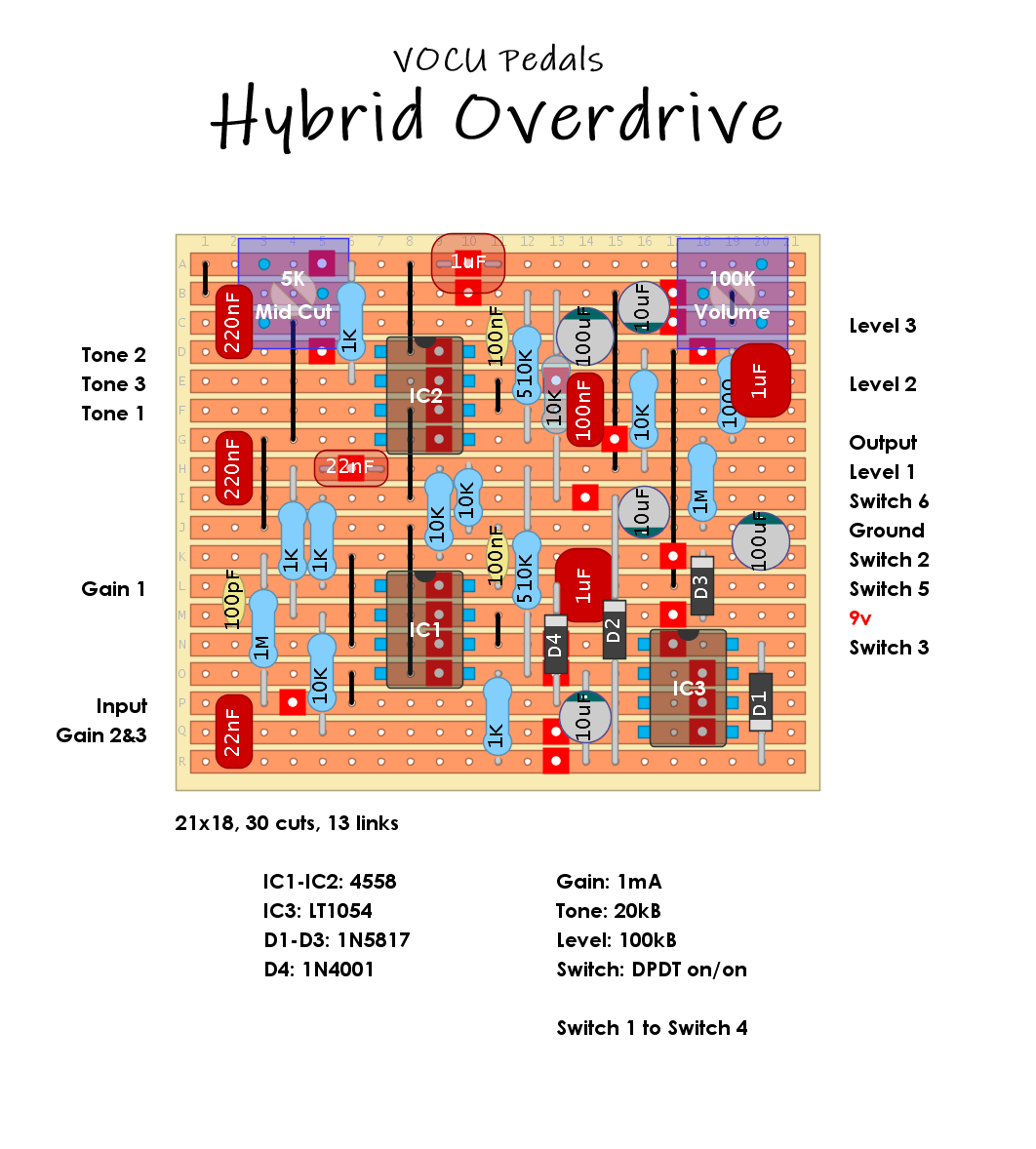

VOCU Hybrid Overdrive c86c88ed47c4

Schematic is avaiable HERE.

Categories Uncategorized Tags Booster, dirtboxlayouts, Overdrive, Verified, VOCU Pedals Leave a comment

Pro Analog Devices Dual Drive Mk. 1

4 Jun 202627 Feb 2025 by chords

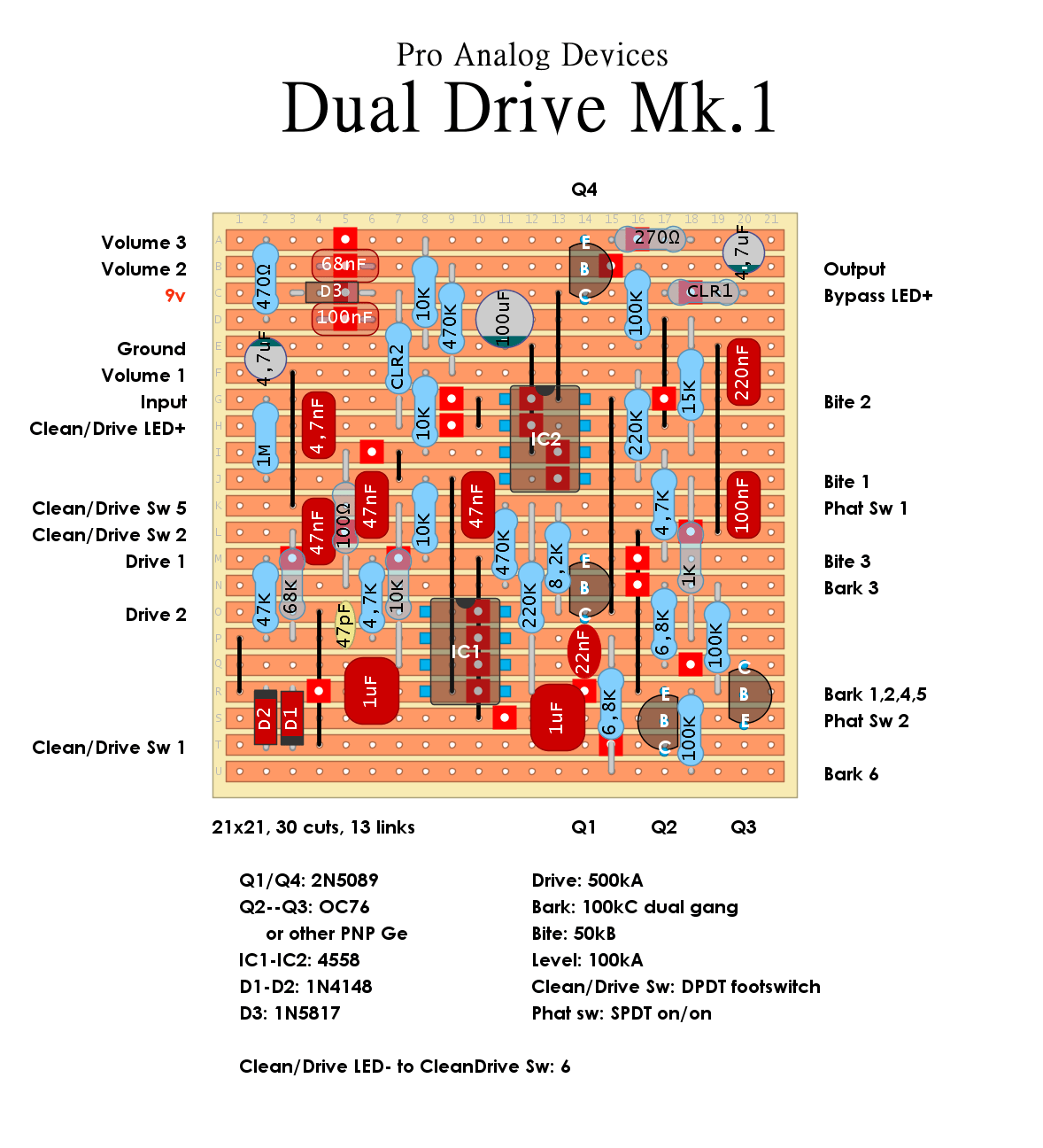

Pro Analog Dual Drive Mk 1 bdb8107254e7

Schematic is avaiable HERE.

Categories Uncategorized Tags dirtboxlayouts, Overdrive, Pro Analog, Verified Leave a comment
