EarthQuaker Devices Life Pedal
For Fuzz Friday here’s the coolest Green Ringer + Rat pedal around! (To be fair, it’s an awesome combo) The Green Ringer is on a JFET blend and the Rat section is pretty standard. There’s also a fairly generic MOSFET boost on board as well, similar to a SHO or Black Eye. This should all … Read more
EarthQuaker Devices Plumes

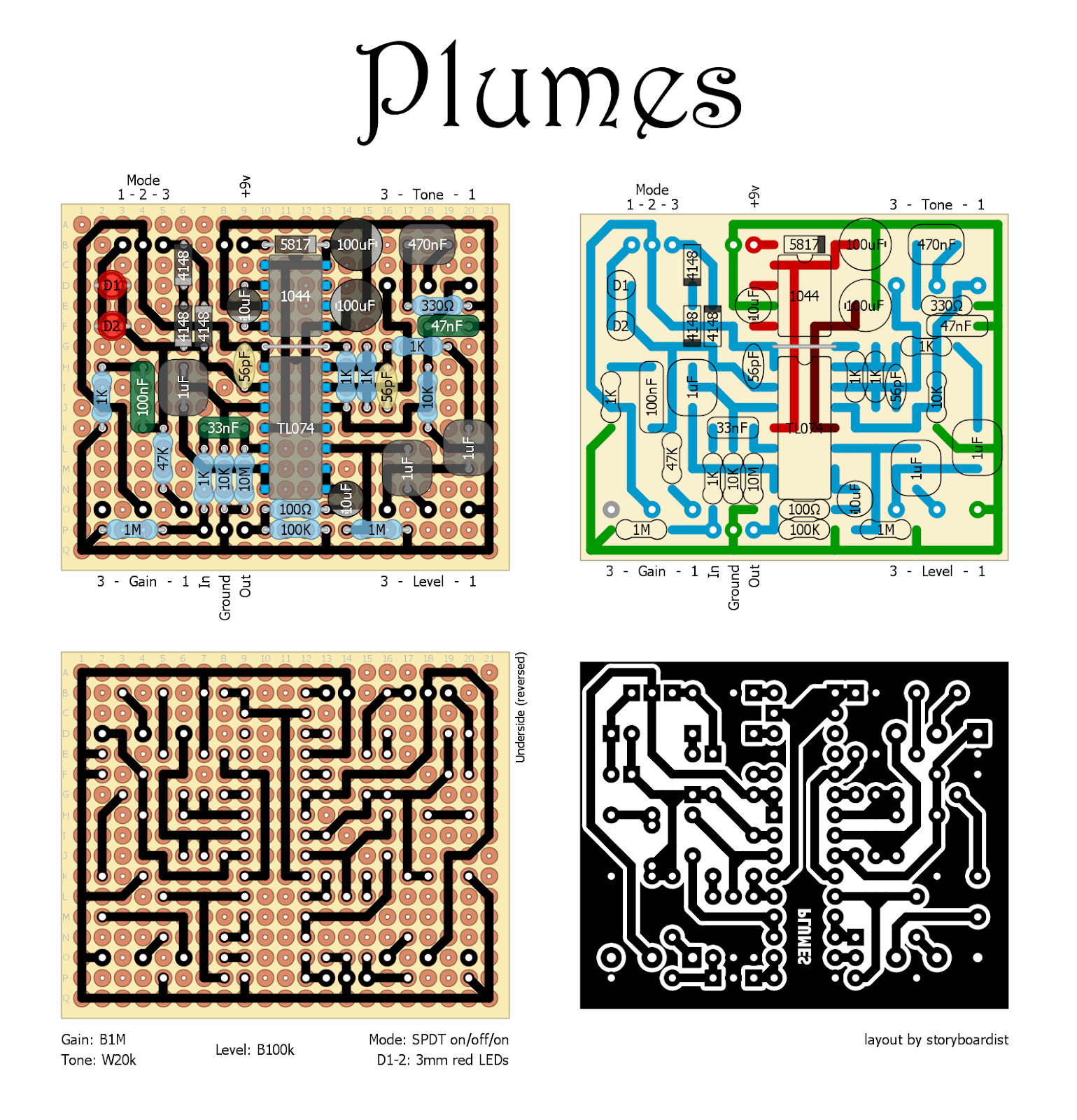

Today’s layout is the EQD Plumes. It’s based on the Tube Screamer but with a load of tweaks, including the usual BJT buffers replaced with op amp buffers, selectable clipping, and a charge pump to provide a bipolar supply. Should fit nicely in a 1590B. Here’s the schematic as requested:
