Catalinbread Dirty Little Secret RED
Same mods as with DLS V3 (external gain and tone switches). Schematic is avaiable HERE
Catalinbread
Catalinbread Dirty Little Secret V3
Slightly modified with the internal DIP switches moved to the outside and splitted into two DPDT switches. One is for gain and one is for the tonestack (Super Bass and Super Lead modes). Schematic is avaiable HERE
Catalinbread Dirty Little Secret V2
Recently traced by Aion Electronics. Schematic is avaiable HERE.

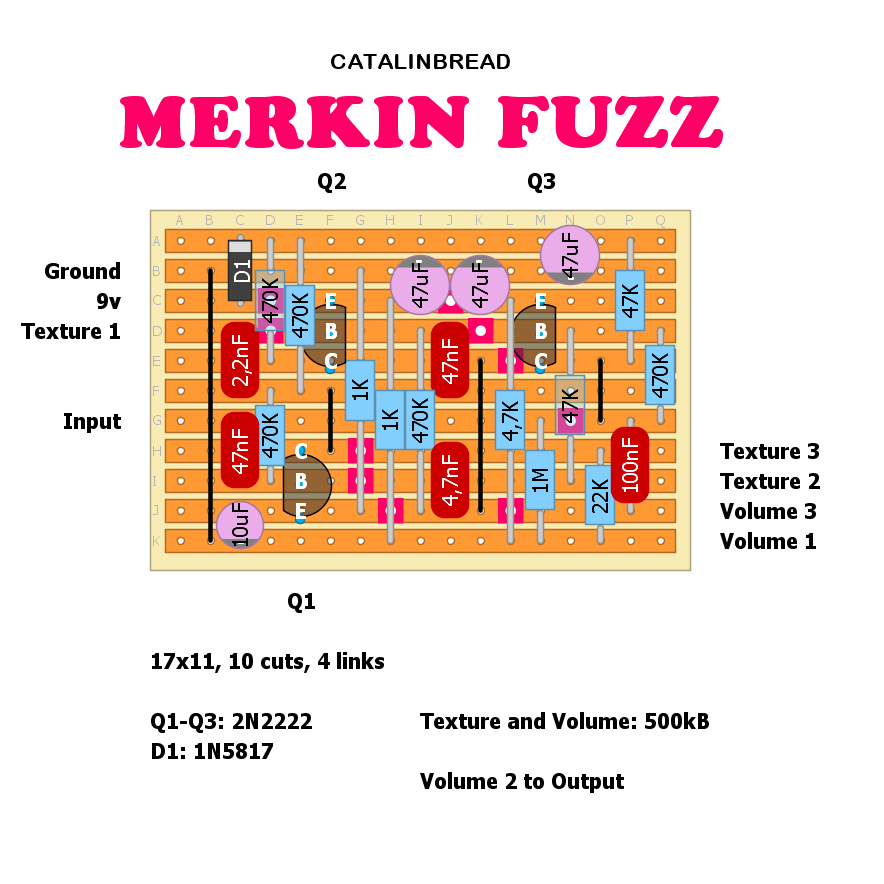

CATALINBREAD: Merkin Fuzz, Point to Point Layout
The Catalinbread Merkin Fuzz is their take on the classic Mosrite Fuzzrite, but with a few changes in values and a boost section at the end. Now I know a lot of guitar pedals have some odd names, but a Merkin Fuzz? Really??? Google it…. CATALINBREAD MERKIN FUZZ – POINT-TO-POINT LAYOUT
CATALINBREAD: Manx Loaghtan
After the Thorpy Fallout Cloud, I thought I might do another bax Big Muff. The Catalinbread Manx Loaghtan pre-dates Thorpy’s by quite a few years. The same basic idea, take a Big Muff and swap out the single tone control for a baxandall tone stack. CATALINBREAD MANX LOAGHTAN – VERO LAYOUT EQ CURVES
