EarthQuaker Devices Fuzzmaster General
Traced and generously shared by Dirt Monger Instruments. Schematic can be downloaded HERE.
EarthQuaker Devices
EARTHQUAKER DEVICES: Spires Green Channel
The Earthquaker Devices Spires green channel is a variation of one of my favourite fuzz circuits – the Rosac Nufuzz. It’s a progression of a fuzzrite from the original designer, but it has a tone control on the output sweeping between a small and large cap to provide a thin to thick fuzz sound. There’s … Read more
EarthQuaker Devices Spires Green Channel
A Rosac Nu Fuzz done EQD style… Heavily modified values compared to the stock Rosac schematic that is floating around online. It suggest that it should have more volume on tap and a tone control with much wider range than its ancestor. Schematic is avaiable HERE.
EarthQuaker Devices Spires Red Channel
For those who don’t want the whole Spires circuit with all the offboard wiring comes two separate öayouts for each channel. The red channel is a modified silicon fuzz face with some additional filtering and a fuzz control at the input. MPS3704 transistors seems to be not that common but a quick equivalent search reveals … Read more
EarthQuaker Devices Spires
*Update 230916* Now the correct schematics for both channels is uploaded at PedalPCB. Red Channel (Fuzz Face) schematic is avaiable HERE. Green Channel (Rosac) schematic is avaiable HERE. The layout is updated and is now tagged as Unverified.
EarthQuaker Devices Zap Machine V2
Traced by Gray Bench Electronics. It is basically a heavilly tweaked hybrid Tonebender Mk. II. I added an anti pop resistor at the input and reoriented the 4,7uF cap. Schematic and teardown video is avaiable HERE.
Earthquaker Devices Hummingbird V2
New Year, might make Modulation Monday a thing. We’ll see. Anyway, here’s the EQD Hummingbird V2. It’s derived from the Vox Repeat Percussion and now updated to use the 2N6027 in place of the obsolete 2N2646. There’s also a couple other improvements from the earlier version so a new layout seemed like a good idea. … Read more

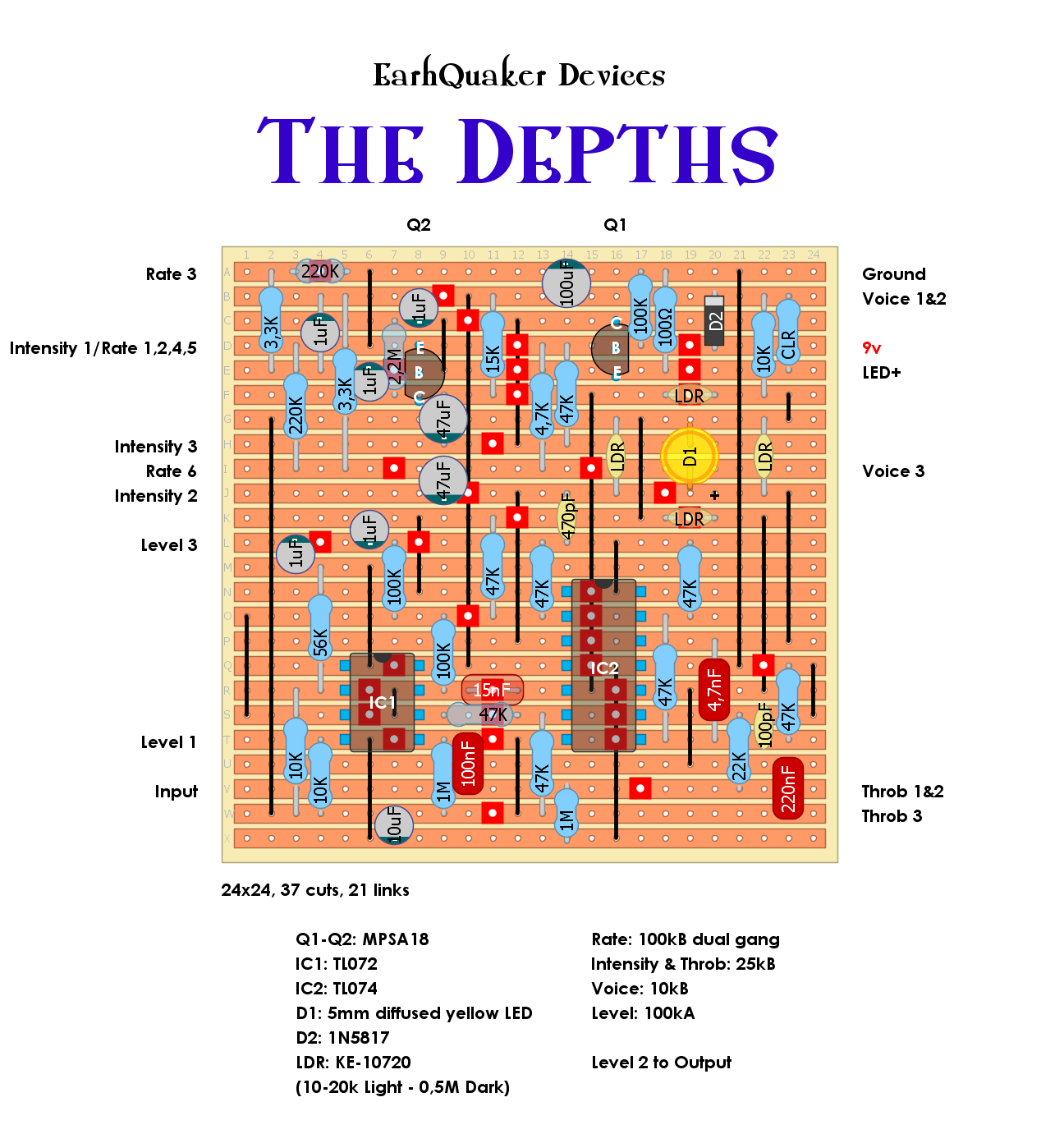

EARTHQUAKER DEVICES: The Depths
I think it’s fair to say that you should not attempt this unless you are pretty confident with your builds. The Earthquaker Devices The Depths, is their take on the Uni-Vibe. The schematic can be found here, on PedalPCB in the build doc. EARTHQUAKER DEVICES THE DEPTHS – VERO LAYOUT THE DEPTHS VIDEO … Read more
EARTHQUAKER DEVICES: Disaster Transport LFO
Add this board to the Disaster Transport Junior to convert to the Disaster Transport. Increasing the 470n cap will provide a slower LFO EARTHQUAKER DEVICES DISASTER TRANSPORT LFO – VERO LAYOUT
