VERO 0.15″

D*A*M: Fuzzsound MKIII, 0.15″ Vero Layout

by

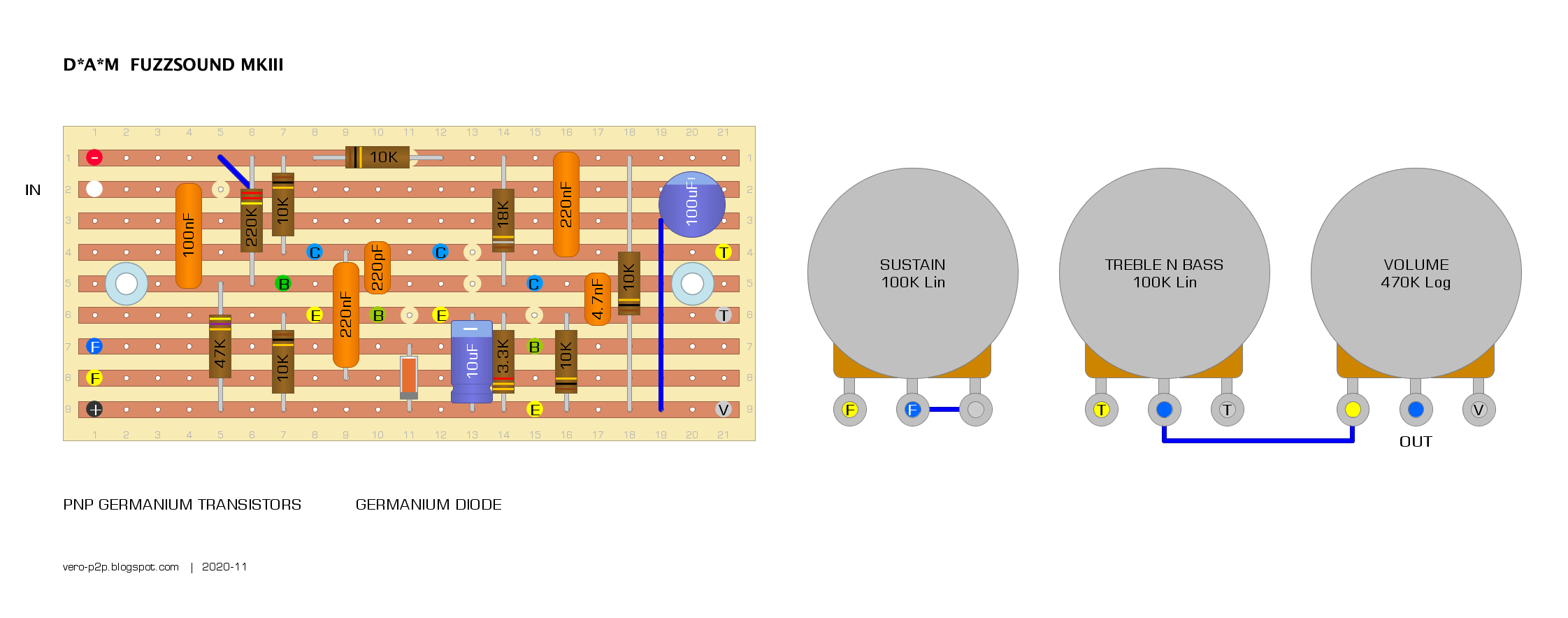

DAM Fuzzsound MKIII vero layout e79135abc204

After looking at a few photos of D*A*M Tone Bender MKIII innards, I think this is the standard layout used on most (on 0.15 inch vero). I haven’t listed transistors used etc, as the internet has more than enough info on this, and if you have found this page, I’m sure you are quite aware of positive ground circuits … Read more

SOLA SOUND: Tone Bender MKII Professional, 0.15″ Vero

by

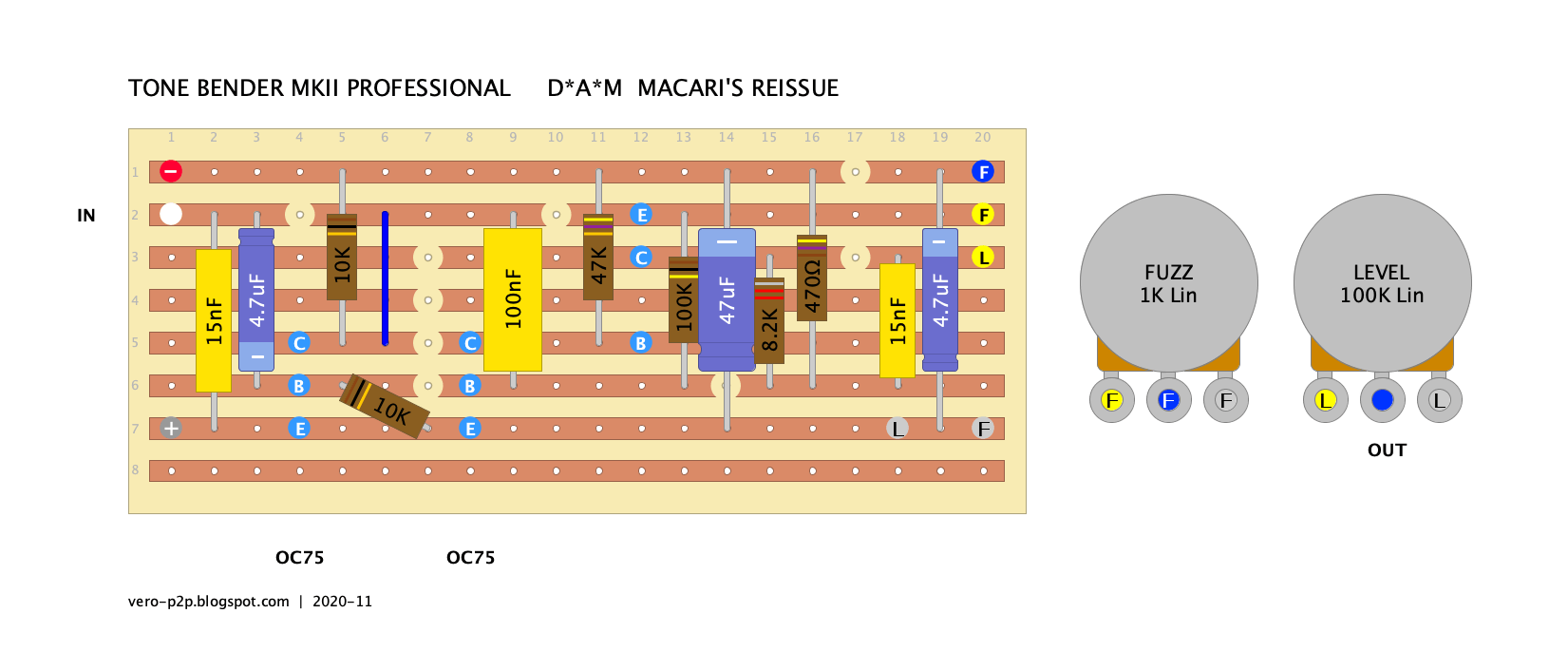

TONE BENDER MKII DAM MACARI 1e85ffa670ba

Not strictly my layout, as this is a copy of the original Sola Sound Tone Bender MKII board.   This is a little different to most MKII schematics, as it has a 10k resistor from base to ground on Q1, and a 47k on the collector of Q2.  I’ve read that this is best for leaky … Read more
