[Note] This post also contains the Bearfoot FX Dyna Red Distortion [Note]
Everyone loves the Dyna Red – A great sounding overdrive/distortion circuit from Born of BJFe. A great, dynamic response with a smooth top end ar features of this great unit. Here’s a demo video;

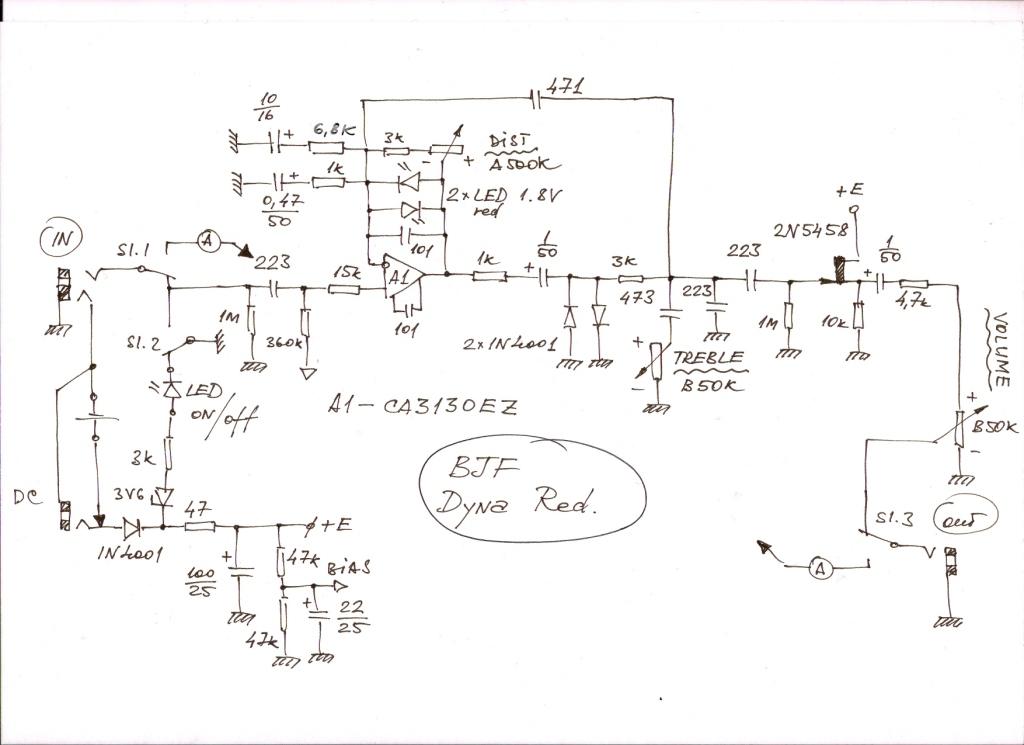

Check out the schematic here;
This schematic was reversed from a dyna red which had been modified by Bjorn himself to produce more character in the lower mids, Soulsonic found that by replacing the 0.47uF cap on the feedback loop with a 0.1uF cap that the original sound was restored.
Integrating the bass control of Paul C’s Timmy circuit could work wonders, go on, give it a try!

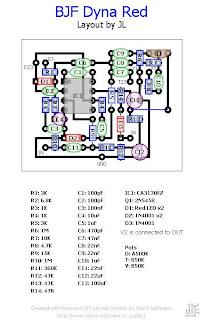

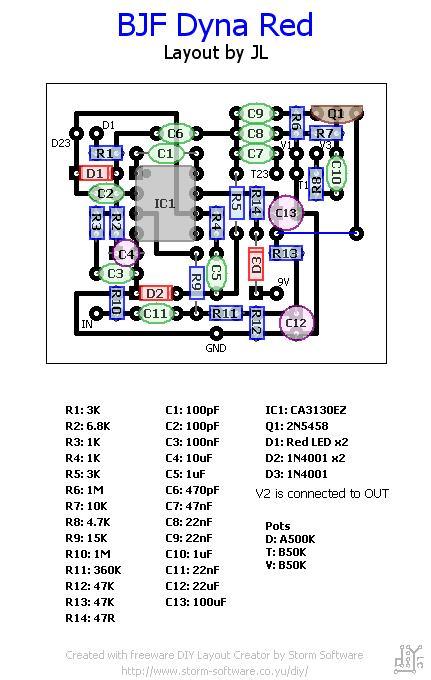

Here’s a perf/pcb layout for you;
Many thanks to all involved over at freestompboxes.org 🙂

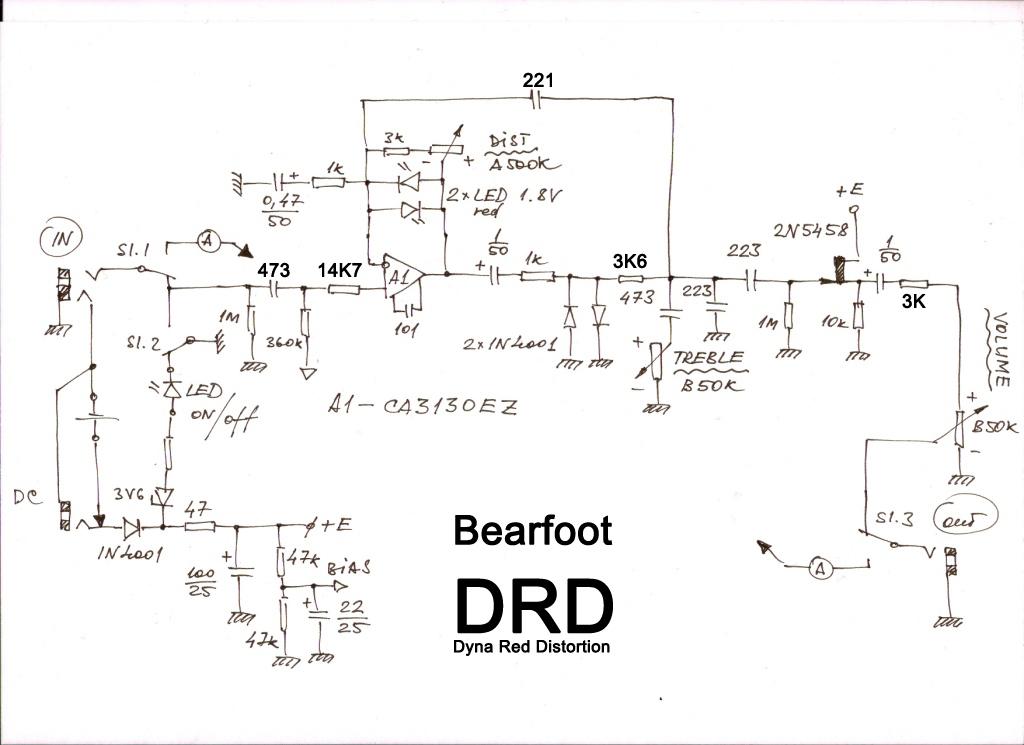

And now the Bearfoot Dyna Red Distortion, here’s the scheme;
For more great info on Bjorn’s stuff get over to the BJFe forum (http://www.bjfe.org) and ask some questions, Bjorn always puts an interesting answer down for you 🙂 Get involved with the HoneyBee Project too!
