[Lots of pretty custom shop Fuzz Factories]
For mere completeness – and to stop me getting so many emails 😉 Here is the schematic a vero board layout for the ever famous Zvex Fuzz Factory, crazy fuzz sounds galore. And, a few actually useful ones too (If you tweak for long enough – don’t forget to write them down!)! Check out the demos on the zvex website: http://zvex.com/fuzz.html
Here’s a demo video of the Fuzz Factory in action:

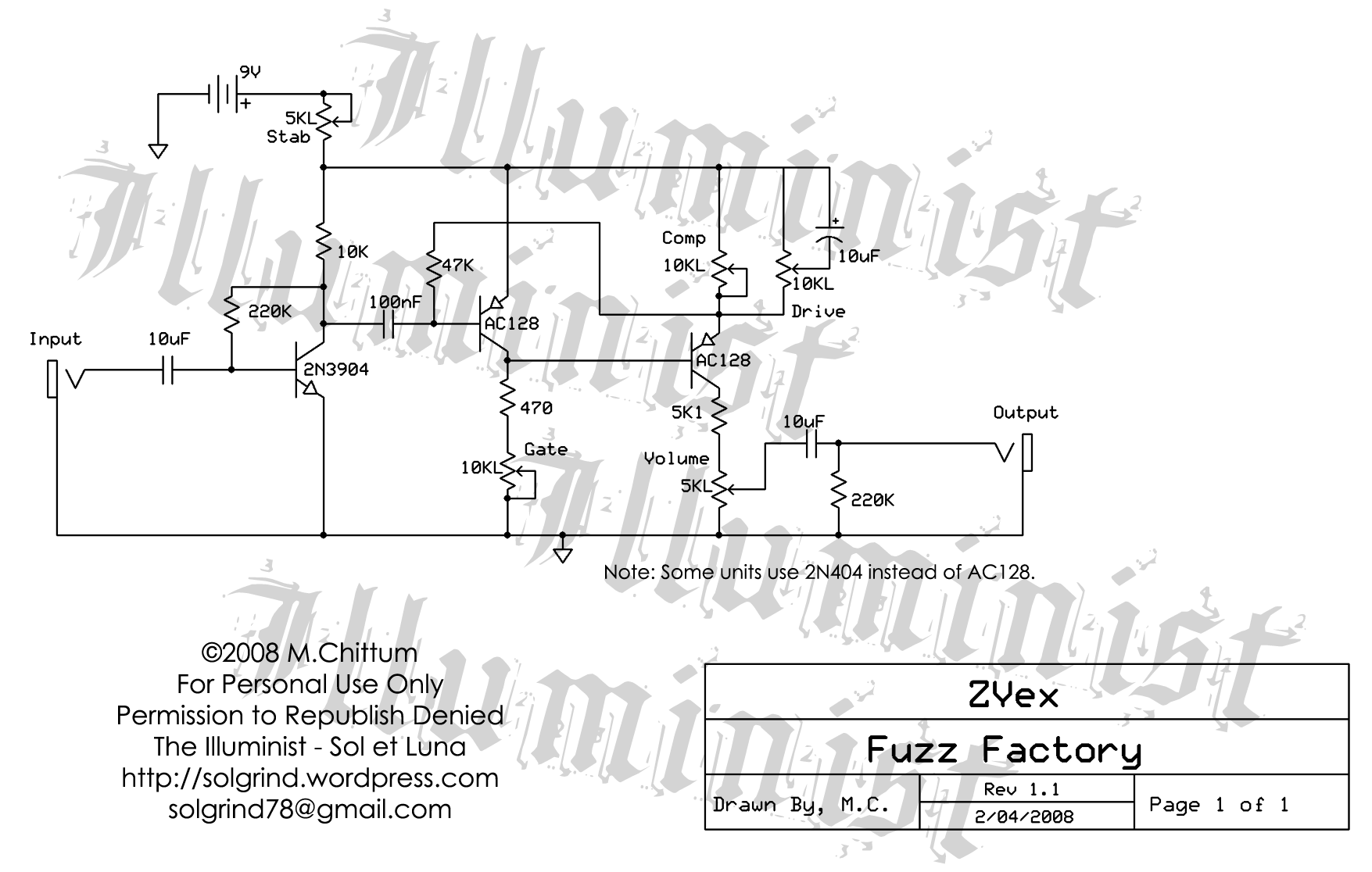

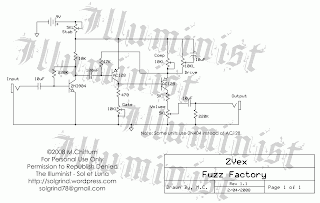

For the schematic (Very easy to read and generate your own layout for) see here: http://solgrind.wordpress.com/2008/02/04/zvex-fuzz-factory/
I know he’s denied permission to repost but the link isn’t always active – here it is to make sure it doesn’t disappear (Sorry Martin, I’ll get round to redrawing it myself soon!);

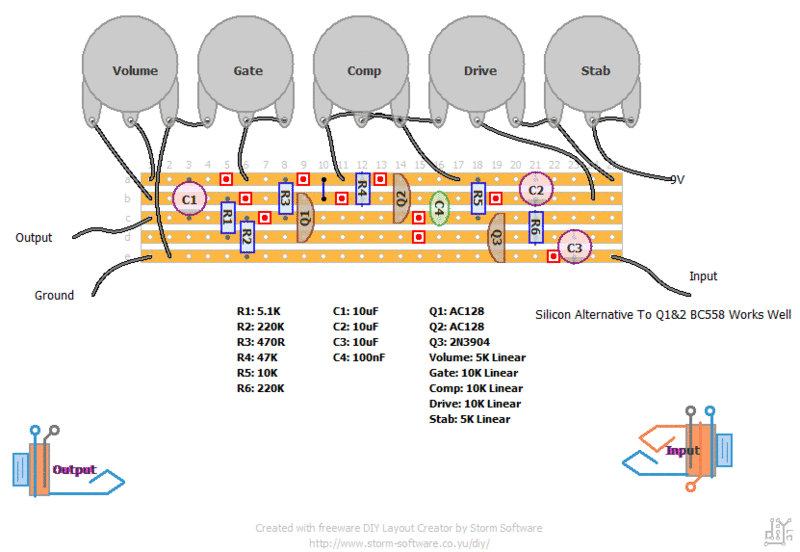

Vero Layout –

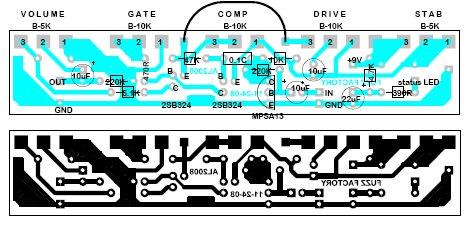

PCB Layout (I have no idea whose this is? But it’s all good.) –
For an alternate PCB layout/schematic/entire project! Check out Madbean’s brilliant work here: http://www.madbeanpedals.com/projects/Zombii/docs/Zombii_ver.5.pdf
