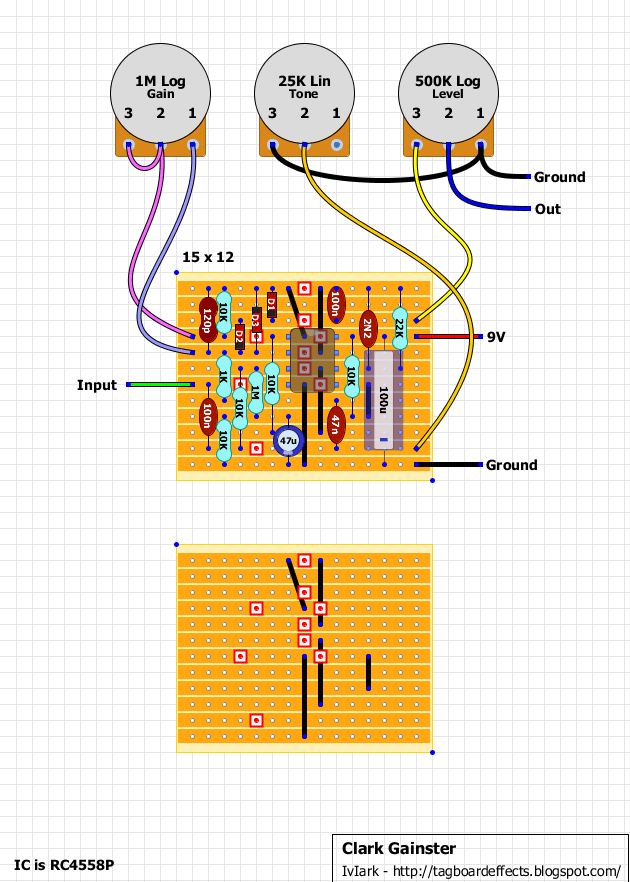

Here’s a version of the Clark Gainster for those who don’t want to use the massive paper-in-oil caps in the version posted previously. I only put in the large axial 100u cap because there was a bit of space in the bottom right of the layout and I had some that size. You can obviously use a smaller radial cap here but there’s no scope to further compact the layout because of the other components around it. Still this will easily fit in a 1590B and so gives an option for a “Small Box” Gainster.
Geiri’s demo vid of his supercool build:
Kit is the 3 knob version
