Ive never done this before, but today I did by hand copy out onto Pad-per-Hole (perfboard) the OLC Chunky Cheese schematic.
For those interested, here is the layout. You can get the details of the components from the OLC PDF (http://www.olcircuits.com/documents2008/olc_chunkycheese_buildguide.pdf)

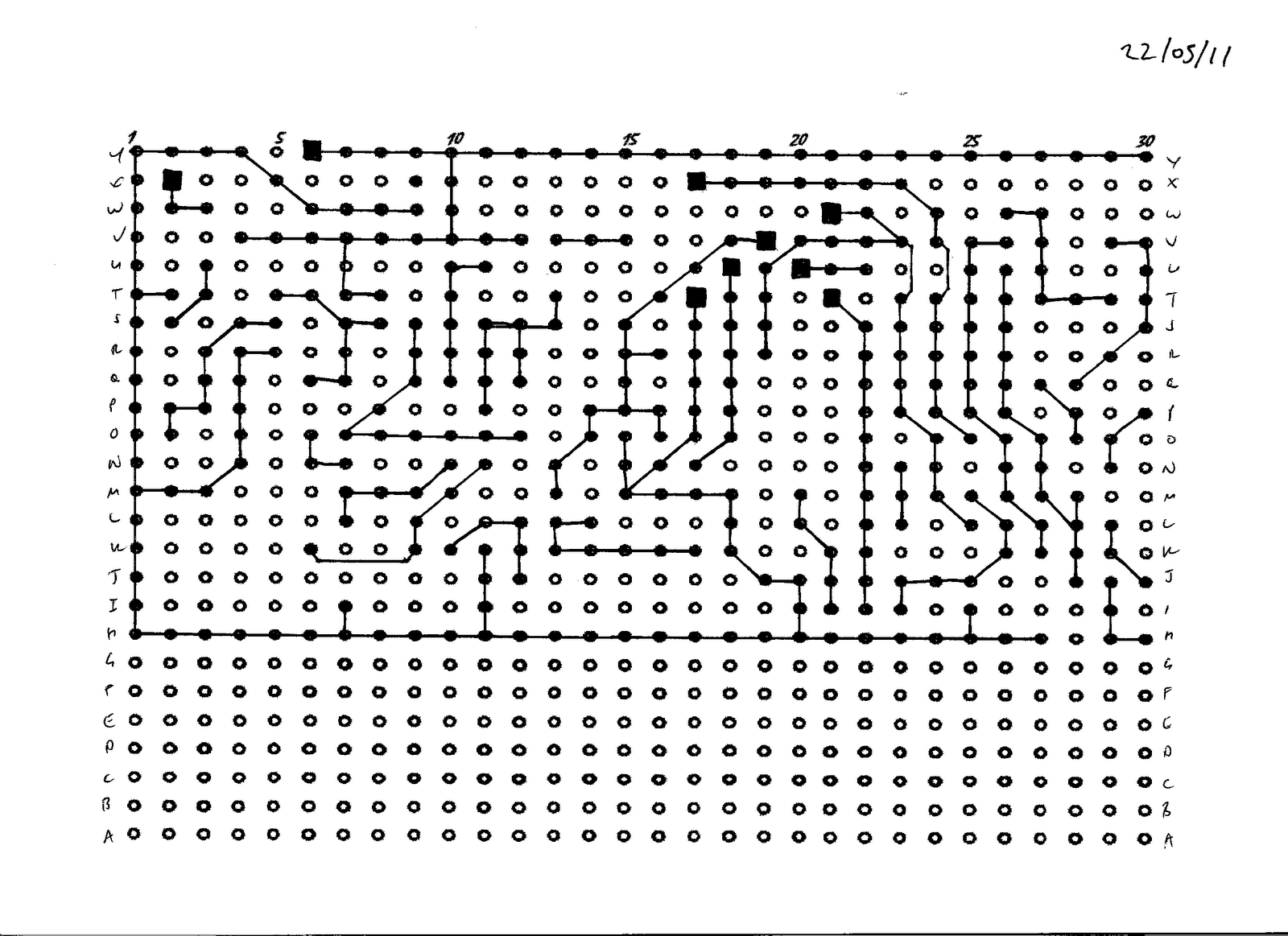

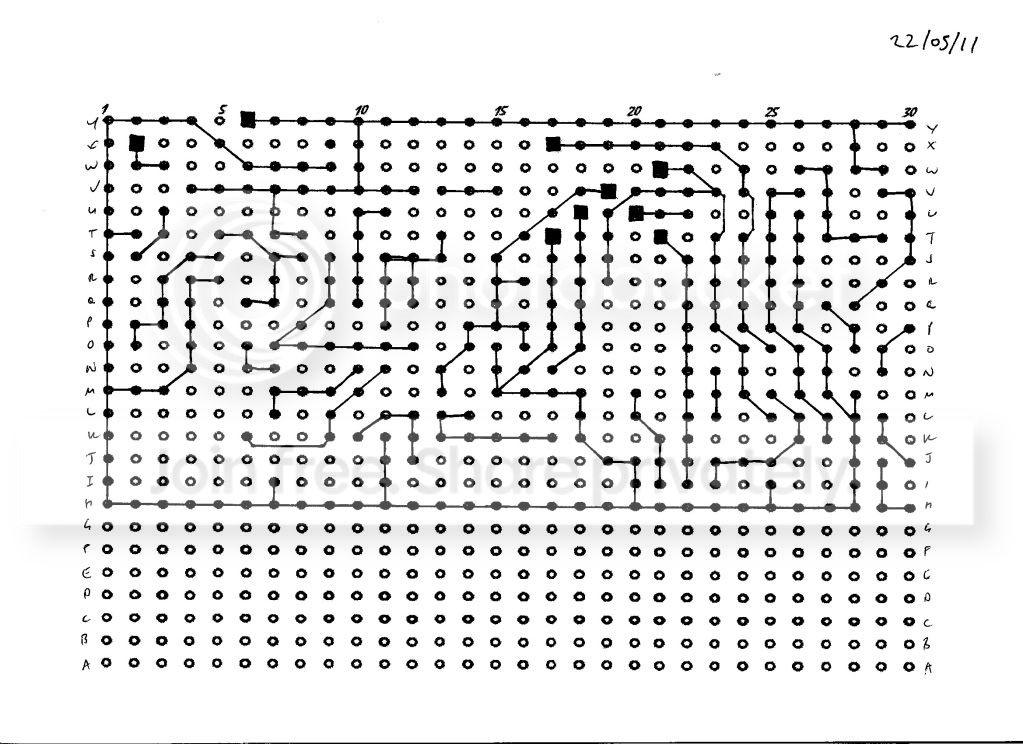

Here is just the links UPDATED 1st JUNE VERIFIED

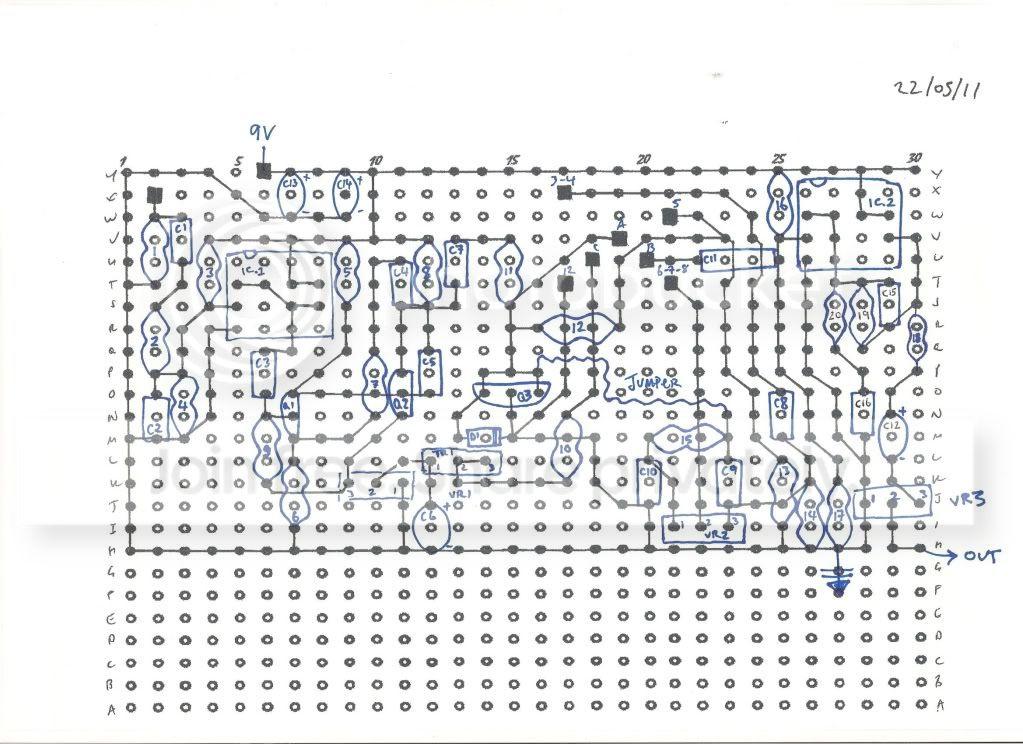

Here is with my cheesy (pun intended) scribbles of the component locations. Id love it if someone could check and see there arent major boo boos. UPDATED 1st JUNE VERIFIED
Ill have a go at verifying this tommorow. Damn drawing took me hours as it is! Kept screwing up the drawing and wanted it perfect…no Tipex allowed! OH yeah, one other thing, Input is the pad at 2,V (top left of the board).
My grand plan is to build this, then a take on the Brown Source called the Tone Source, and then I have bought some oversize boxes to build my own CheeseSource out of 🙂
Wish me luck…
Ian
UPDATE

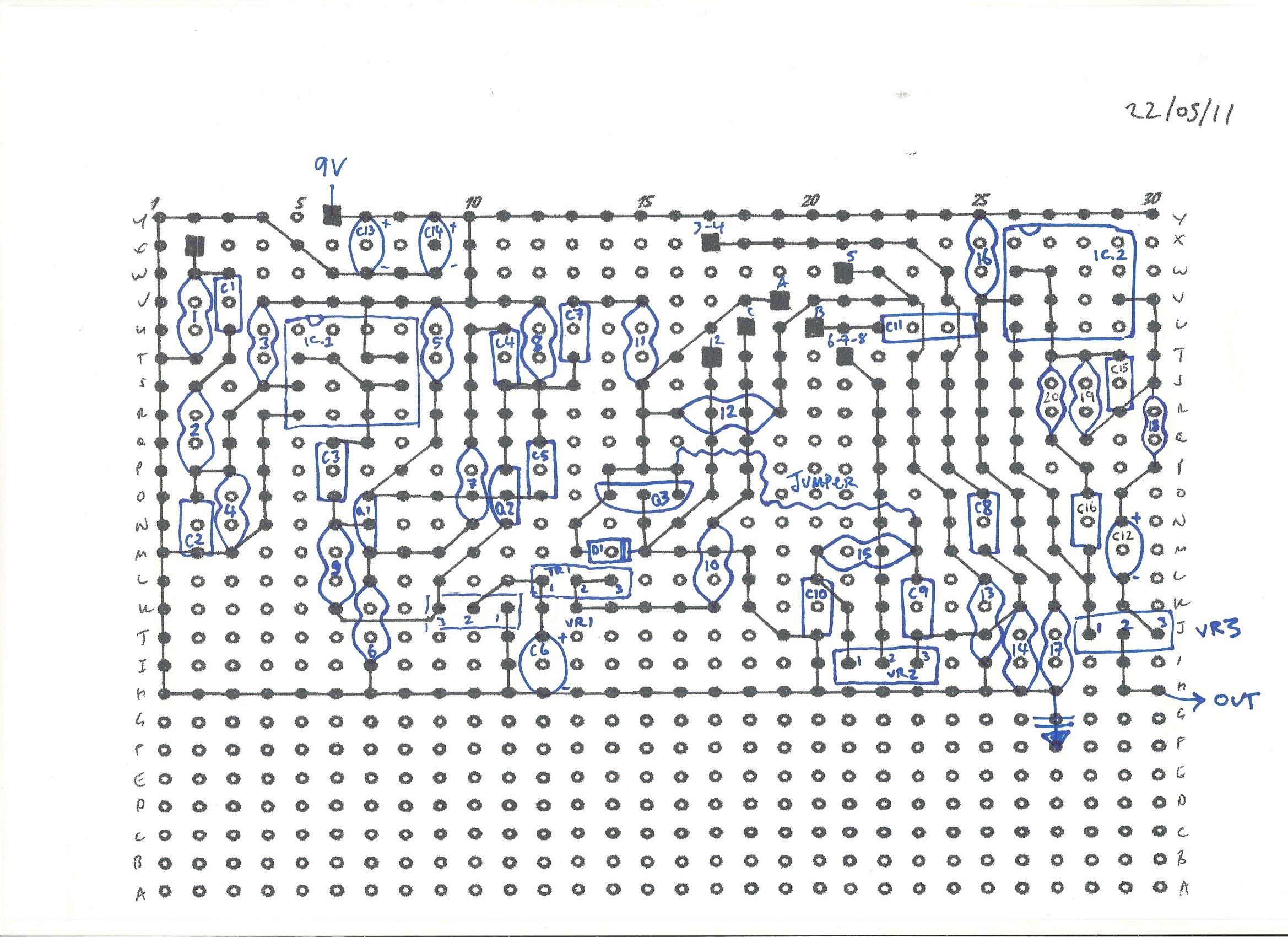

I have fixed this. There was 2 issues with the previous attempt. Firstly, I had forgotten to add the 9v to the second IC (top right of the layout, to pin 7). Secondly, the volume control needed to be grounded from the Lug 1 connection. With these fixes in place, the pedal works as advertised. Happy days!
I will make up the Tone Source next, then make my version of the Cheese Source 🙂
