DAM Red Rooster corrected 131310df9c86

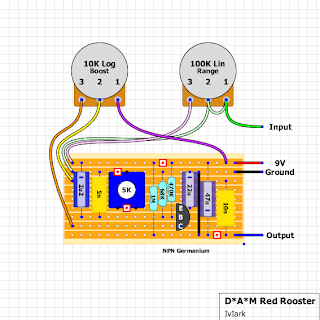

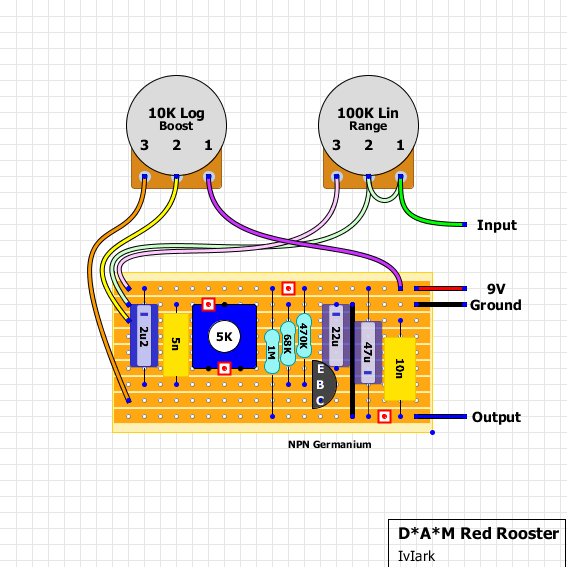

DAM Red Rooster vero layout

3 Jun 20264 Nov 2011 by chords

For fx40b, one of the sites senior testers! :o)

This one is confirmed, enjoy

Categories Uncategorized Tags Booster, DAM, Overdrive, tagboardeffects, Verified, Vero
