The Bearfoot/BJF Model H is supposed to do that “Hi-Watt” tone but without requiring 200 valve driven watts and 100 12″ speakers to get there.. Hmmmm, well it does sound pretty nice. Here’s a quick demo to enlighten you:
Well the schematic has been drawn up by WhiteKeyHole over at freestompboxes.org and here it is for viewing:

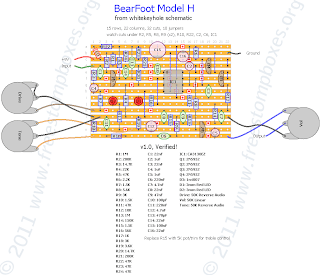

As you can see the structure is almost identical to a Mad Professor (also designed by BJF) Blueberry. Or a hotrodded Honeybee. If you wanna build yourself one pick up some vero board; here’s a layout:
