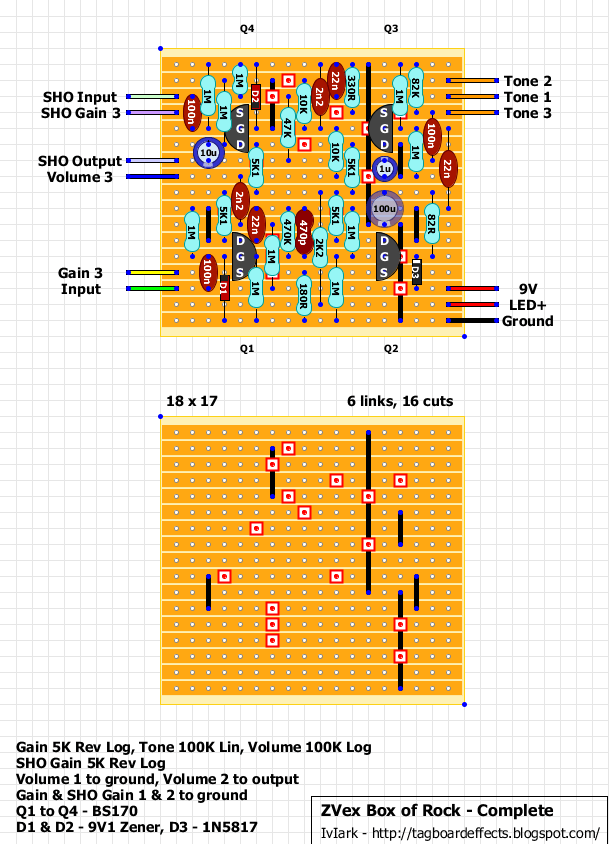

I’ve already posted the dirt side vero so I thought I’d redo it for the complete one with SHO. This ended up pretty compact so will easily fit in a 1590B.
Updated 5th Jan 2014 – ground link added to avoid 2 ground connections to board. LED current limiting resistor also added to make use of available space provided by the additional column.
