Si Tonbender MKII Pro Zep Version 78f8a756f703

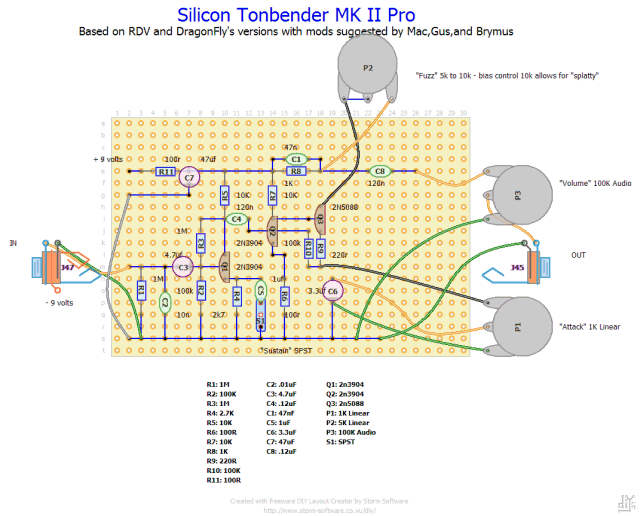

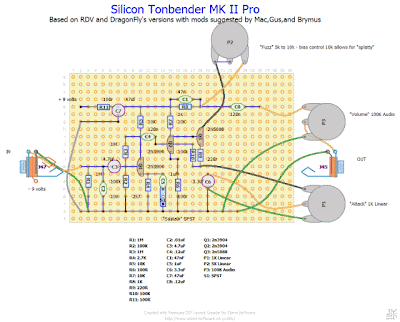

Silicon Transistor Tonebender MKII Pro

13 Jun 202626 May 2012 by chords

Based on RDV and DragonFly’s versions with mods

Categories Uncategorized Tags Distortion, guitar, guitar pedal, guitarpedalbuilders, layout, Overdrive, pcb

Drive Master – Tone Controlled Marshall Blues Breaker

Octave Doubling Fuzz Distortion
