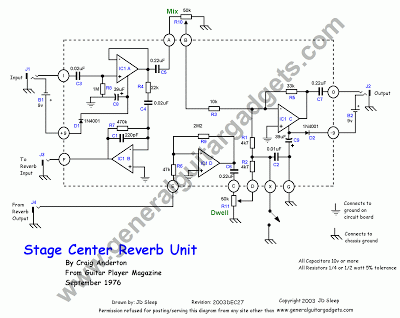

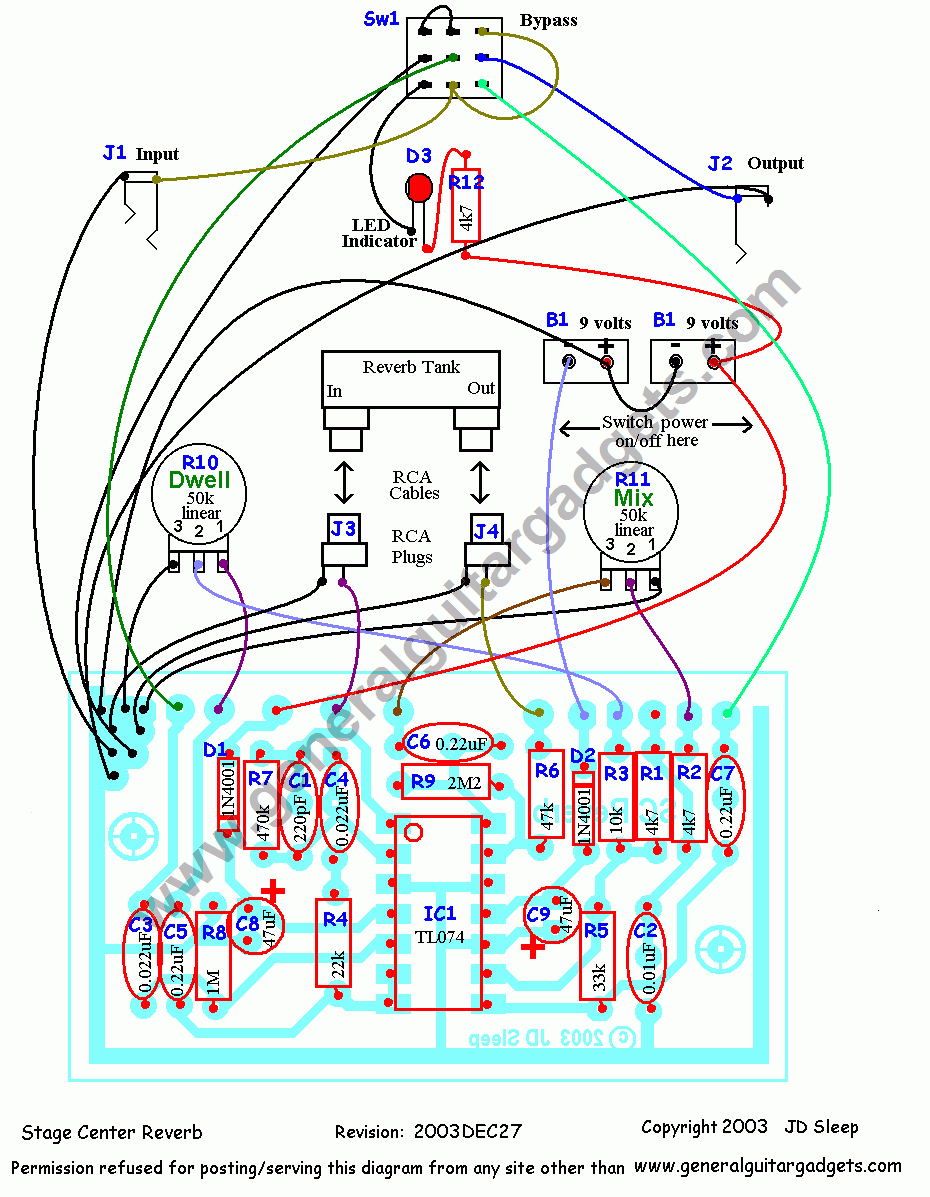

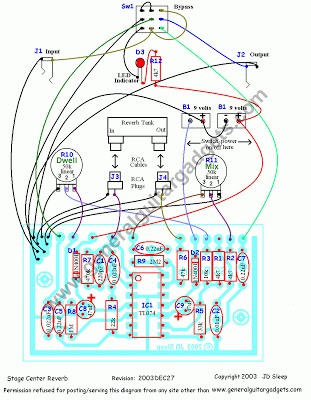

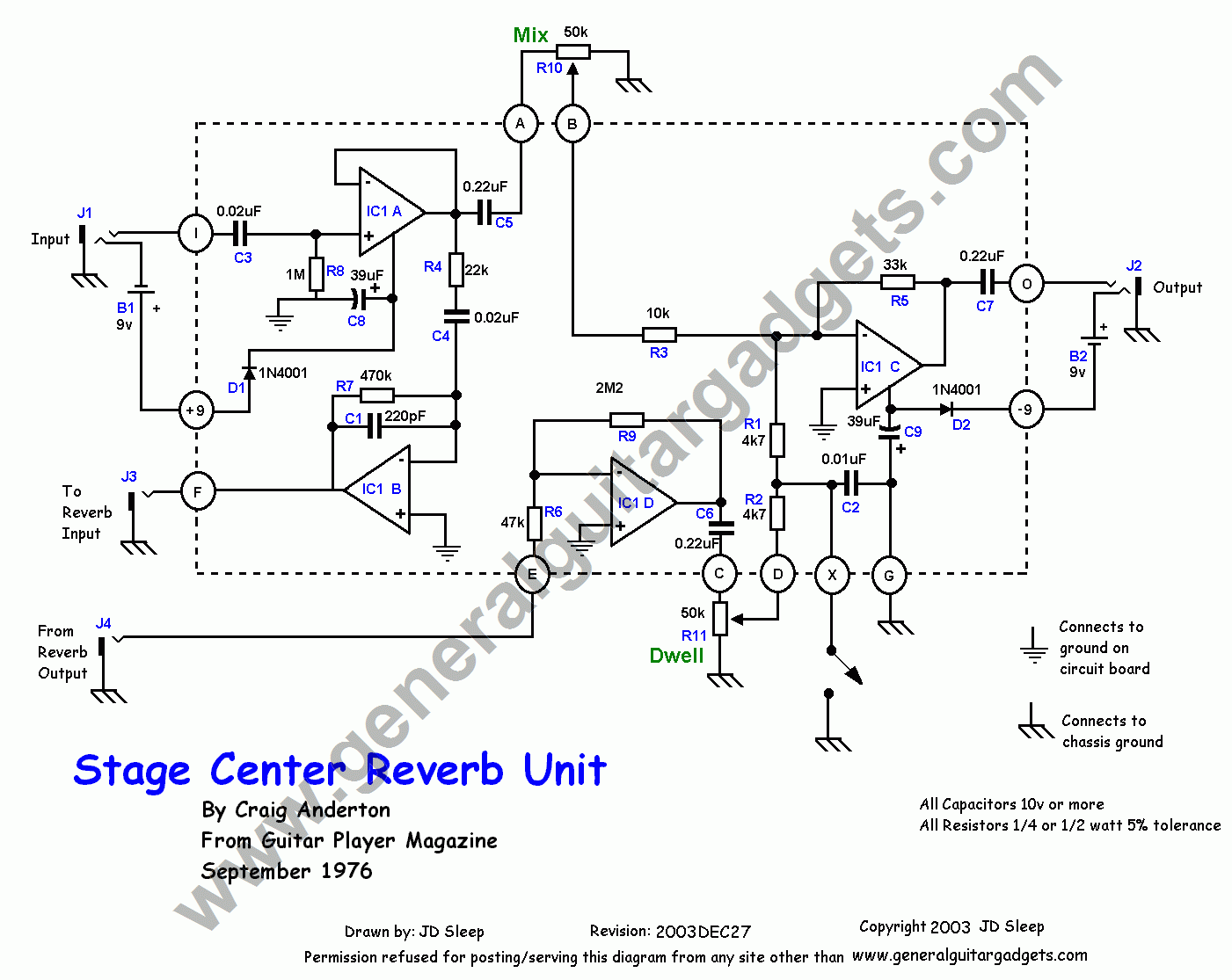

Stage Center Reverb Bill of Materials
Resistor ((1/4 watt rating)
2 – 4.7k
1 – 10k
1 – 22k
1 – 33k
1 – 47k
1 – 470k
1 – 1M
1 – 2.2M
Pots
2 – 50k log can be linear or log (audio) taper.
Capacitors (minimum 16 volt rating)
1 – 220pF
1 – 0.01uF
2 – 0.02uF
3 – 0.22uF
2 – 39uF
Op Amp
1 – TL074
Other
Reverb Springs – Input Impedance of 310 Ohms (Accutronics 4DB2C1D)
Reverb Springs Bag (optional)
2 – cables with RCA jacks on both ends. These are used to connect the reverb springs to the circuit.
1 – 3PDT or DPDT heavy duty foot switch
2 – 1N4001 diodes
1 – 14 pin op amp socket (optional)
1 – Stereo Quarter inch Jack (input)
1 – Mono quarter inch jacks (output)
2 – RCA female jacks
2 – 9v battery snaps & holder and/or DC jack(s)
Copper-clad board, etchant, 24 gauge stranded wire
Enclosure
