Info about the original:
Like the Dyna-Ranger, the Joyride is a highly-adjustable, 3 discreet
transistor, warm, organic, and very amp-like sounding overdrive pedal
that offers everything from a subtle bump-up with hair, to punishing,
highly-boosted over-the-top overdrive. With Volume, Treble, Bass and
“Drive” controls, it is very flexible.

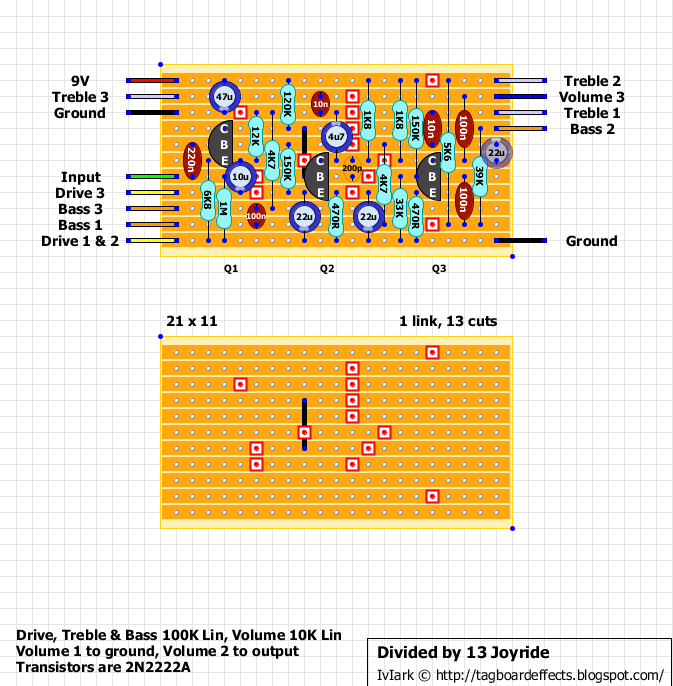

Note: There was an unnecessary 22u cap in the last layout above Q1, so if you’ve built this with the old
layout snip that cap out. If you’re building this now, make sure
you’re using the latest layout with just one 47u cap above Q1.
