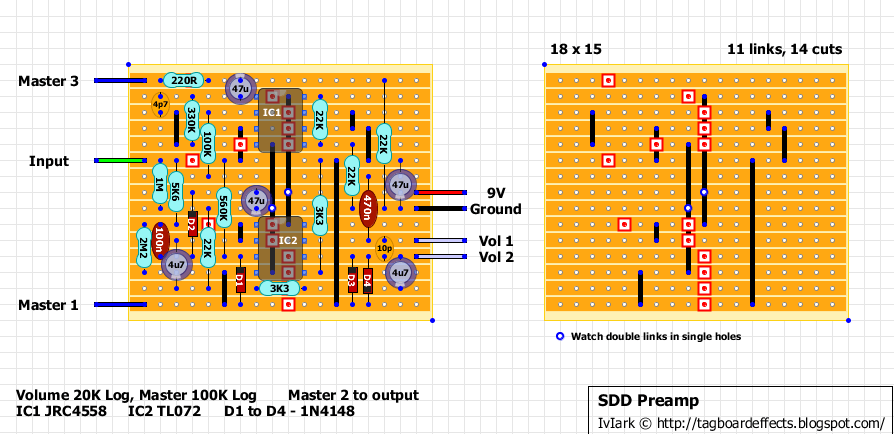

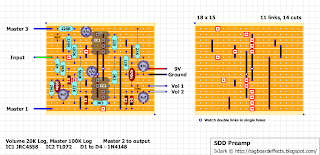

Requested by a few people, this is the pre-amp section of the rack mounted Korg SDD-3000 digital delay. One for the U2 fans who want to try to get a bit closer to The Edge’s tone.
This one based on Analogguru’s schematic with a simplified 9V supply.
Analogguru SDD-3000 Preamp
