Dragonfly Fuzz DFZ1 43218636a55a

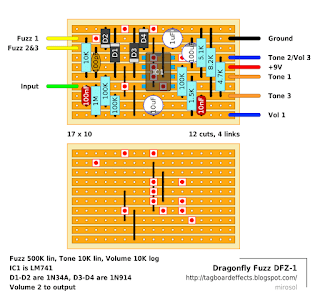

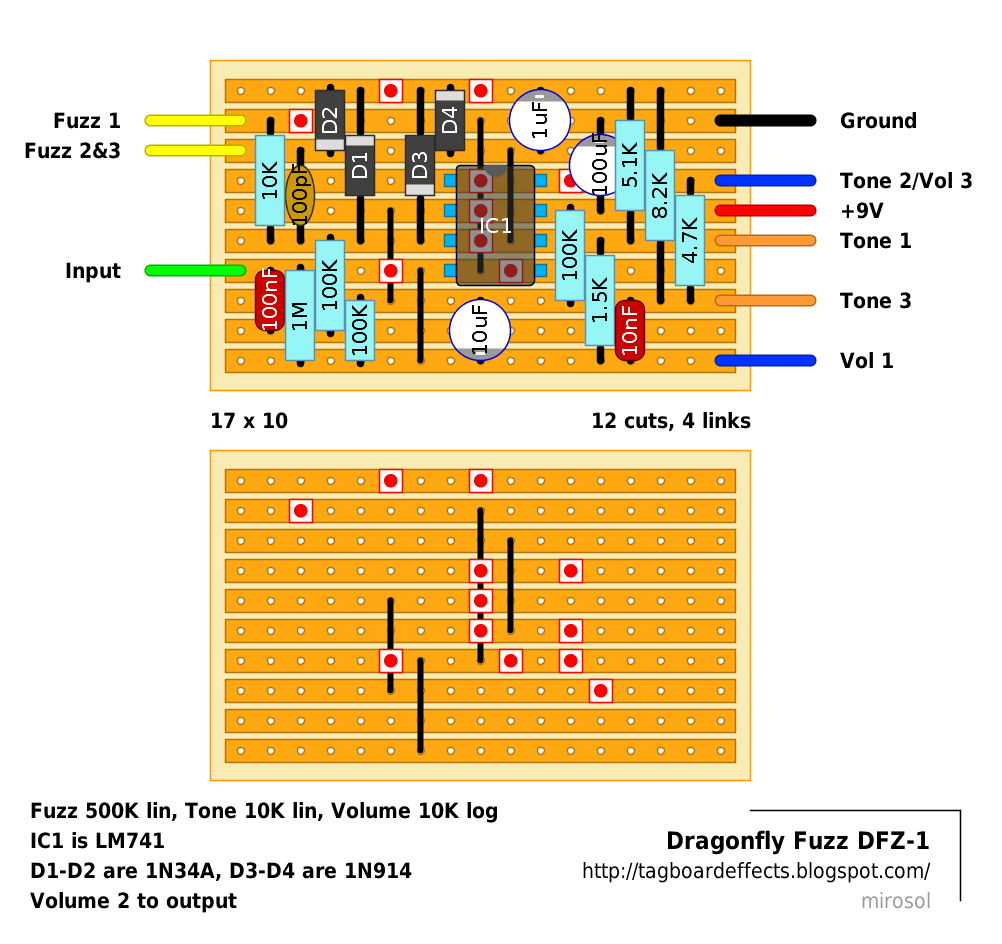

Dragonfly Fuzz DFZ-1

3 Jun 202618 Feb 2013 by chords

Continuing with the Dragonfly schematics archive.

Categories Uncategorized Tags Fuzz, tagboardeffects, Verified, Vero
