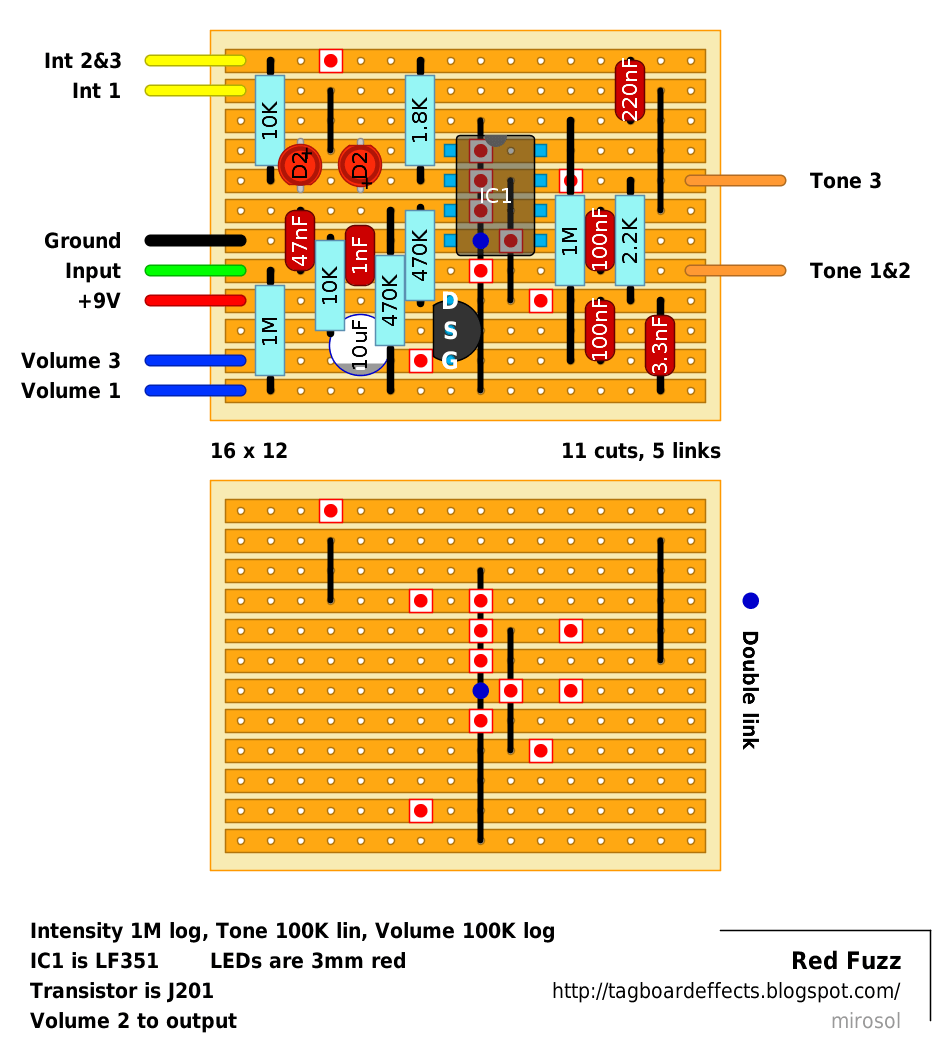

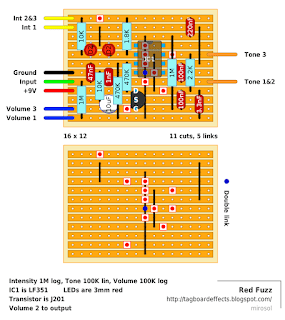

Red Fuzz

3 Jun 20262 Feb 2013 by chords

Another DIY classic. Little info and clips at General Guitar Gadgets.

Categories Uncategorized Tags Fuzz, tagboardeffects, Verified, Vero

Blackout Effectors Fix’d Fuzz Deluxe

DOD FX52 – Classic Fuzz
