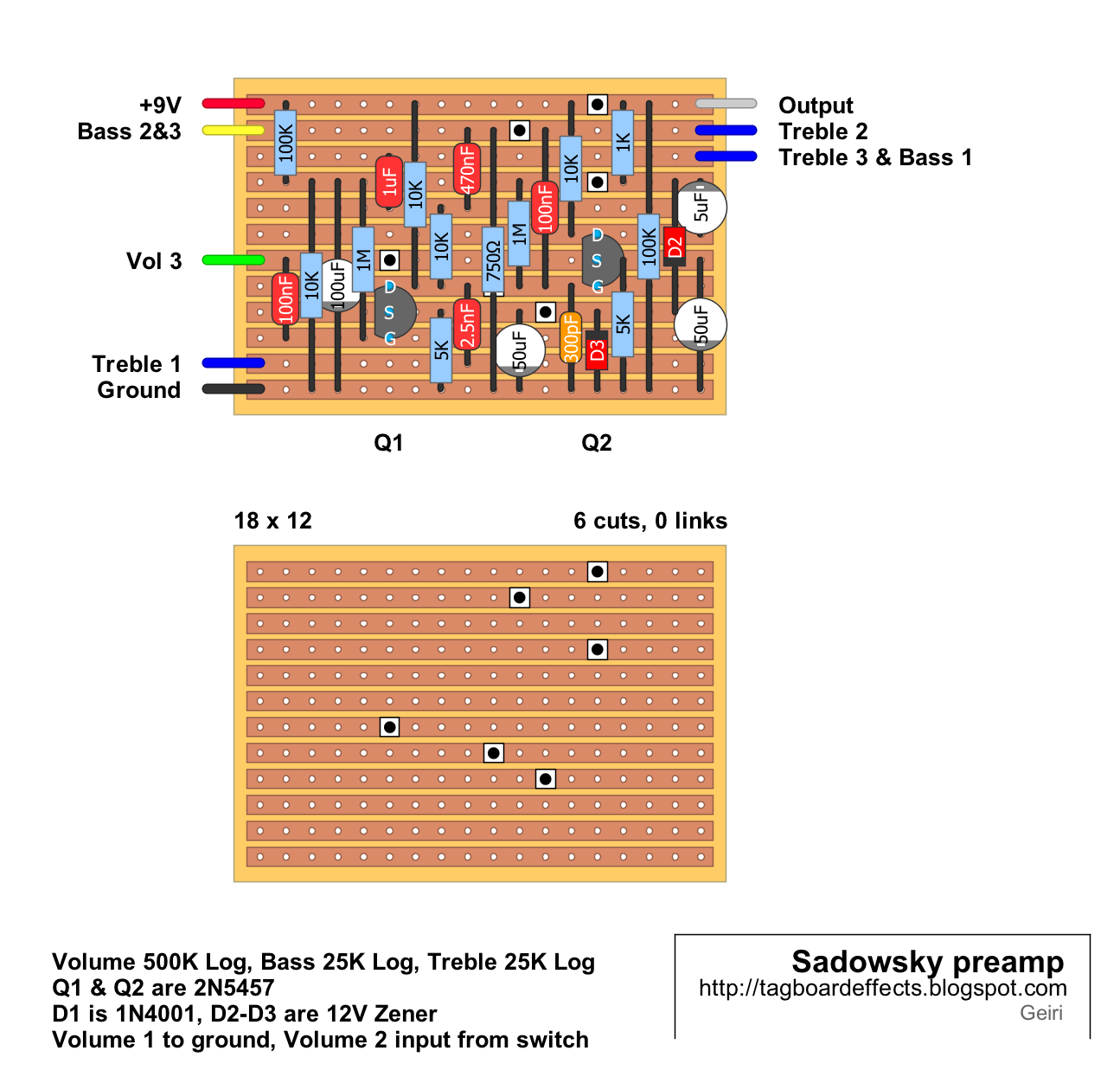

Request, and unusually for the site, this layout has been done by our very own Geiri who asked to post it here so everyone can share it, so thanks Geiri! :o)
Info about the original:
The Sadowsky Outboard Bass Preamp/DI Pedal contains the same famous
circuitry built into every Sadowsky bass. Housed in a small footpedal
box for use on the floor, it measures just 4.5″ x 4.5″ x 2.25″ and
weighs 1.5 pounds. Just plug your bass into the box and then go from the
box to your amp, and/or direct to the board.
Controls consist of volume, treble boost and bass boost. The
Preamp/DI Pedal is perfect for vintage basses where installation of an
onboard preamp would affect the instrument’s original condition and
resale value. The Preamp/DI pedal is recommended for all passive basses,
basses with active pickups, and instruments that have active
electronics that can be bypassed. It also works great with all upright
bass pickups.
