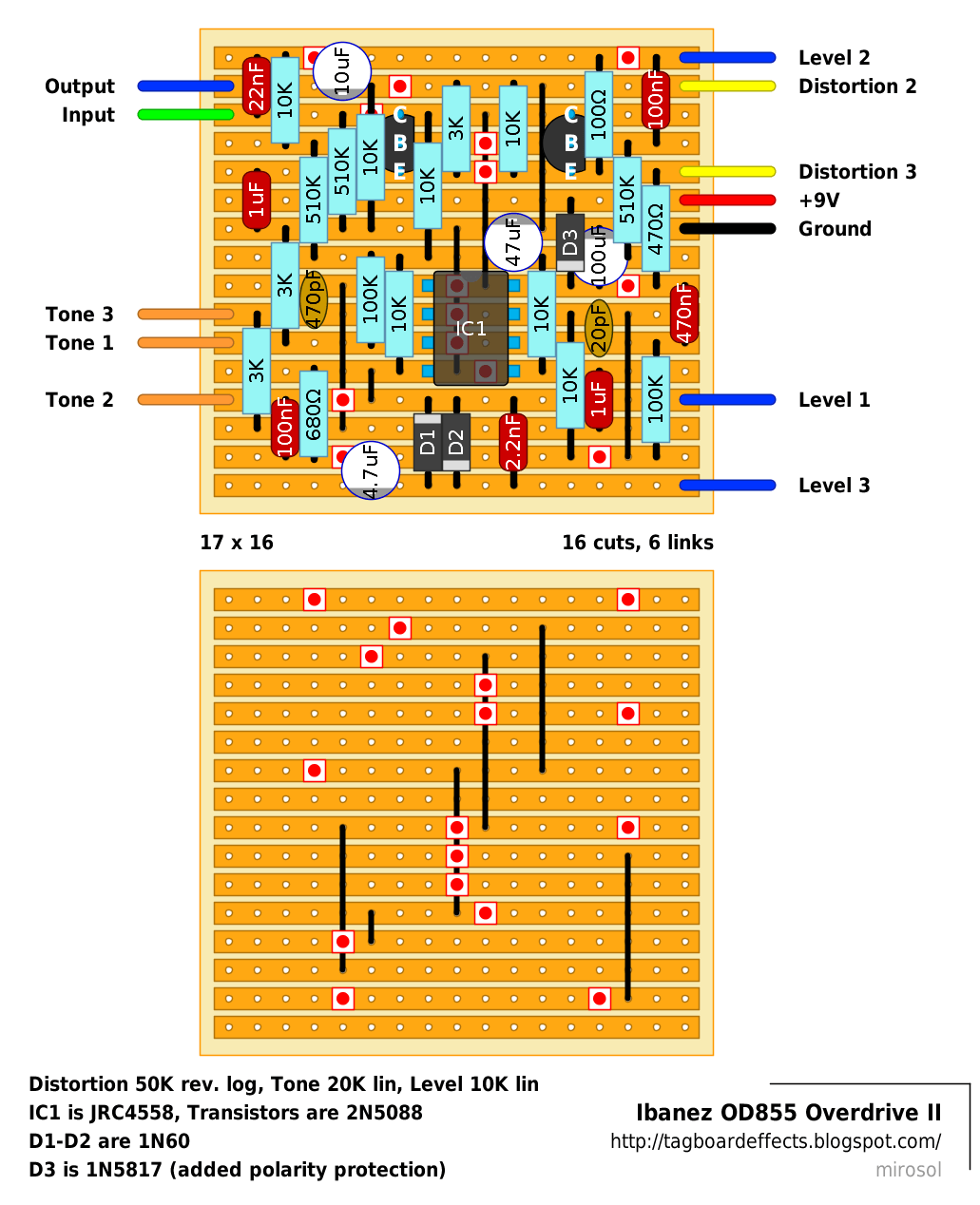

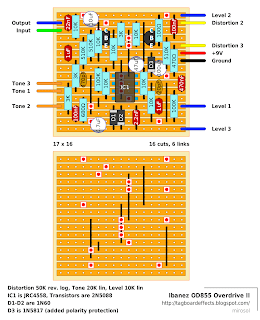

Now. This is per the factory schematic, so it should (finally) be ok – don’t go looking for the old defunct layout, as it is gone for good. Transistors are used for buffers, so i swapped the pinouts for your everyday devices. Tone pot is G-tapered 20K in the original, but linear should work fine in its place. Turned out pretty neat and still quite compact.
Thanks to Norwichbadger – this one is now verified.
