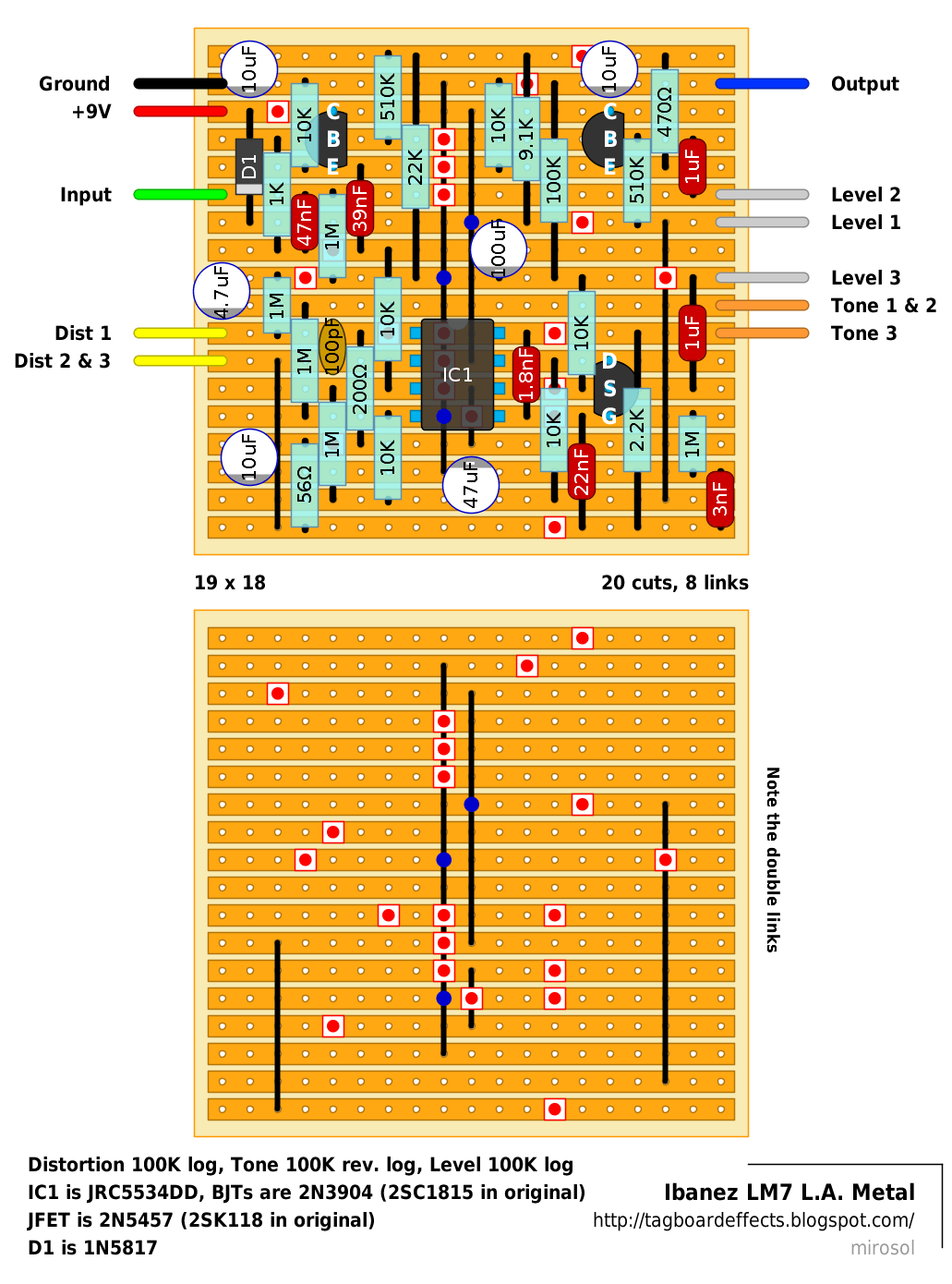

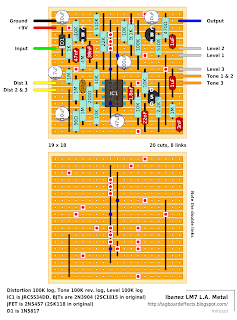

Ibanez LM7 L.A. Metal (layout v2)

13 Jun 202615 Oct 2013 by chords

Another redux drawn from Dirk’s schematic..

Categories Uncategorized Tags Distortion, Ibanez, tagboardeffects, Unverified, Vero
