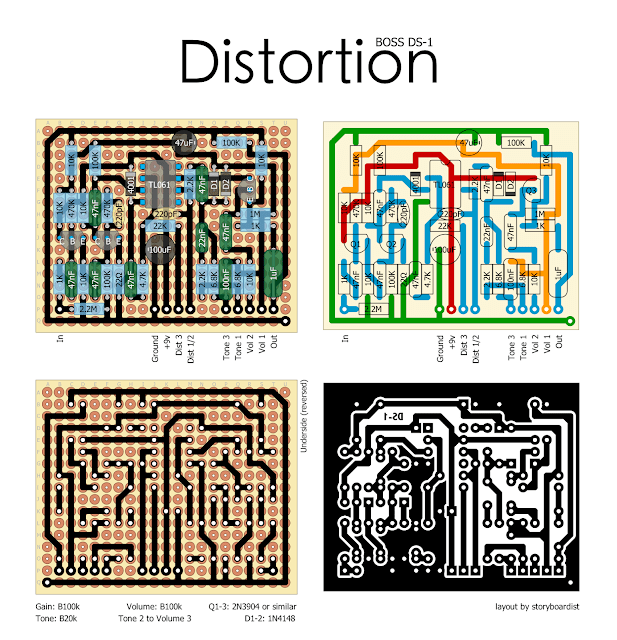

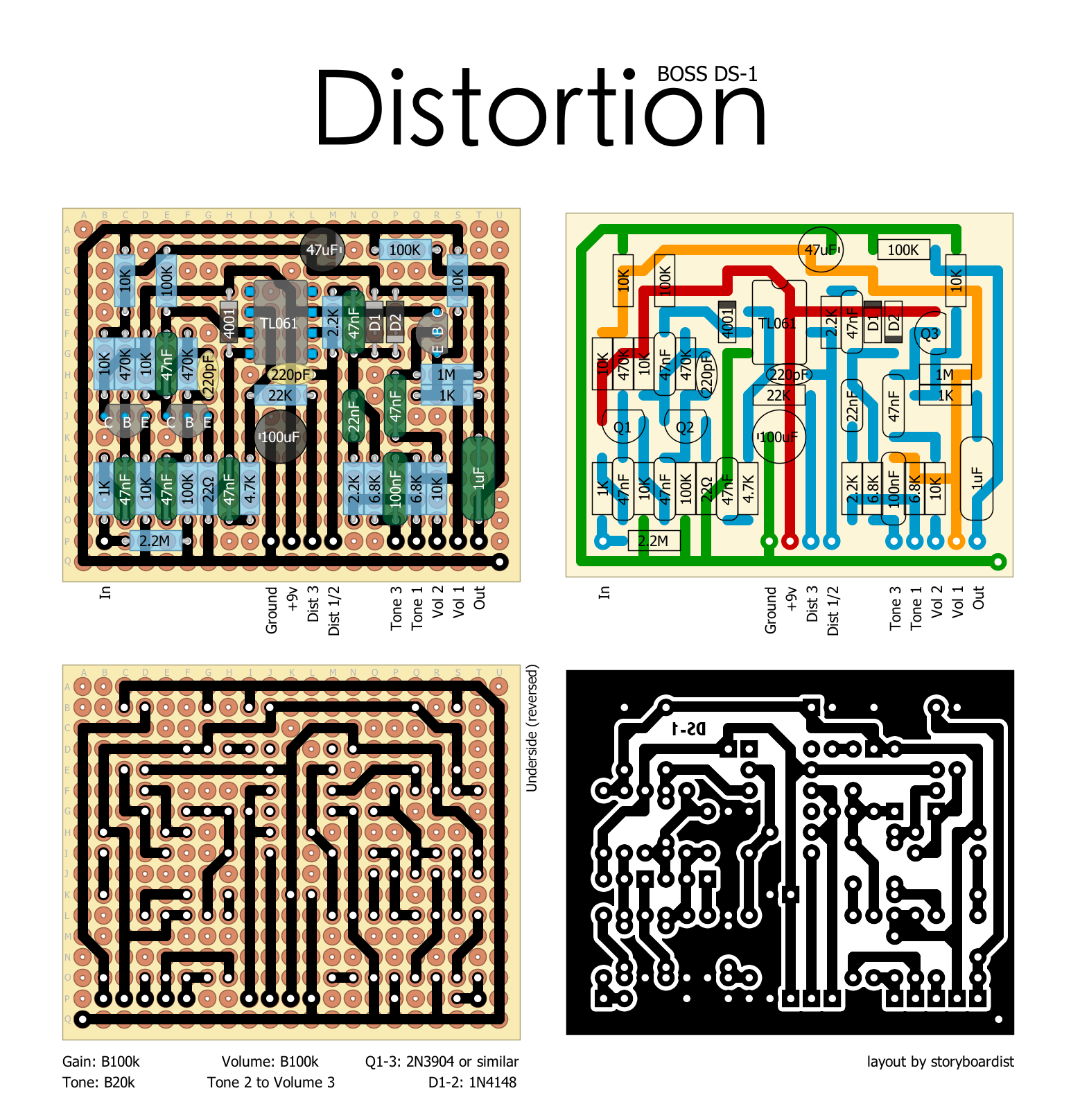

Here’s the classic Boss DS-1 Distortion, used by many greats like Kurt Cobain, Joe Satriani, and Steve Vai, just to name a few. This one has been modified to eliminate the typical Boss flip-flop switching so it can be wired for true bypass, but it retains the input and output buffers.
Schematic can be found here.
