Another new gigantic layout for you!
This is a Chris Carter’s project from Madbean’s forum.
( http://www.madbeanpedals.com/forum/index.php?topic=20459.0 ).

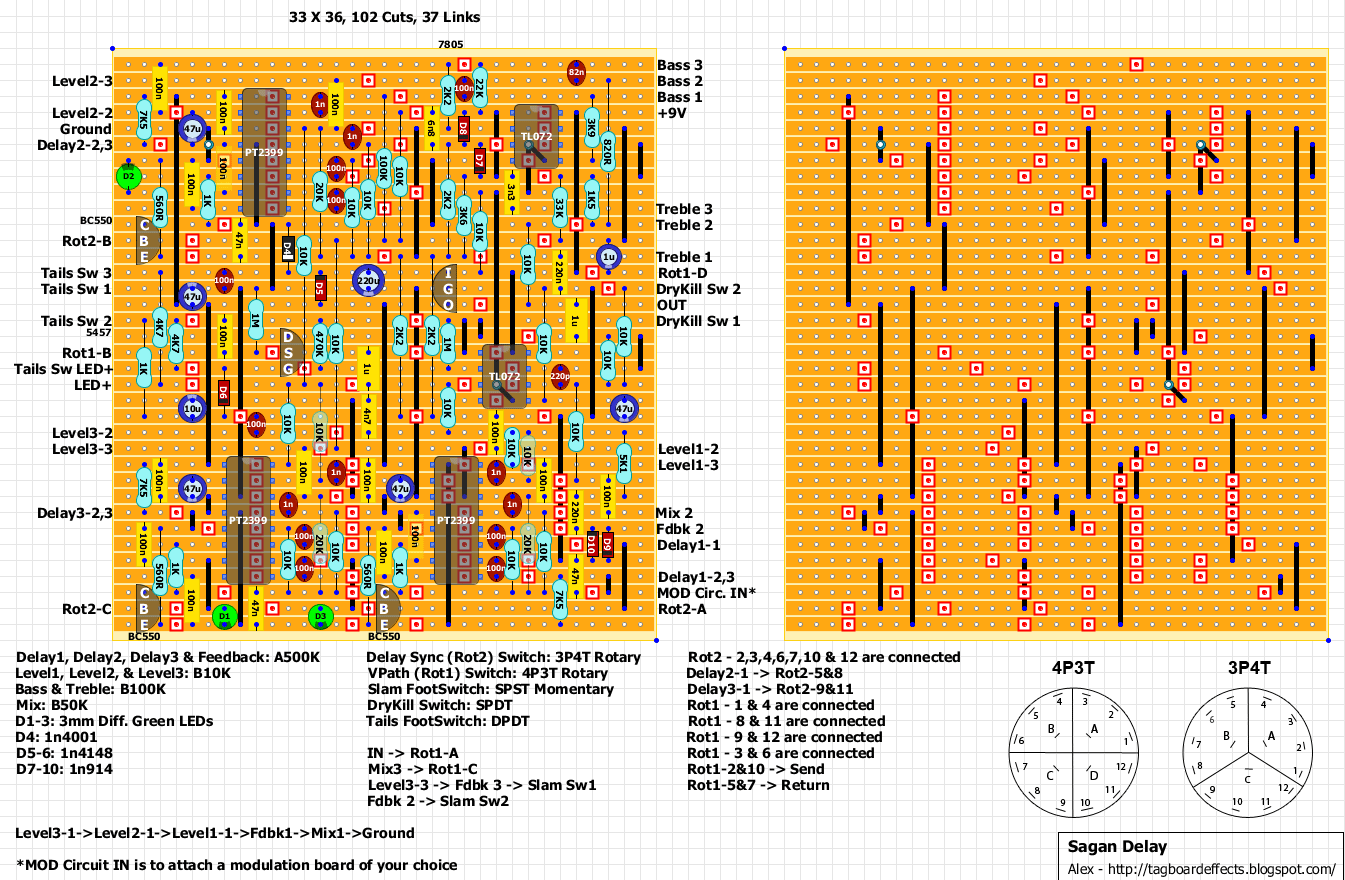

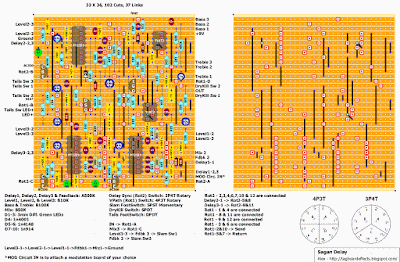

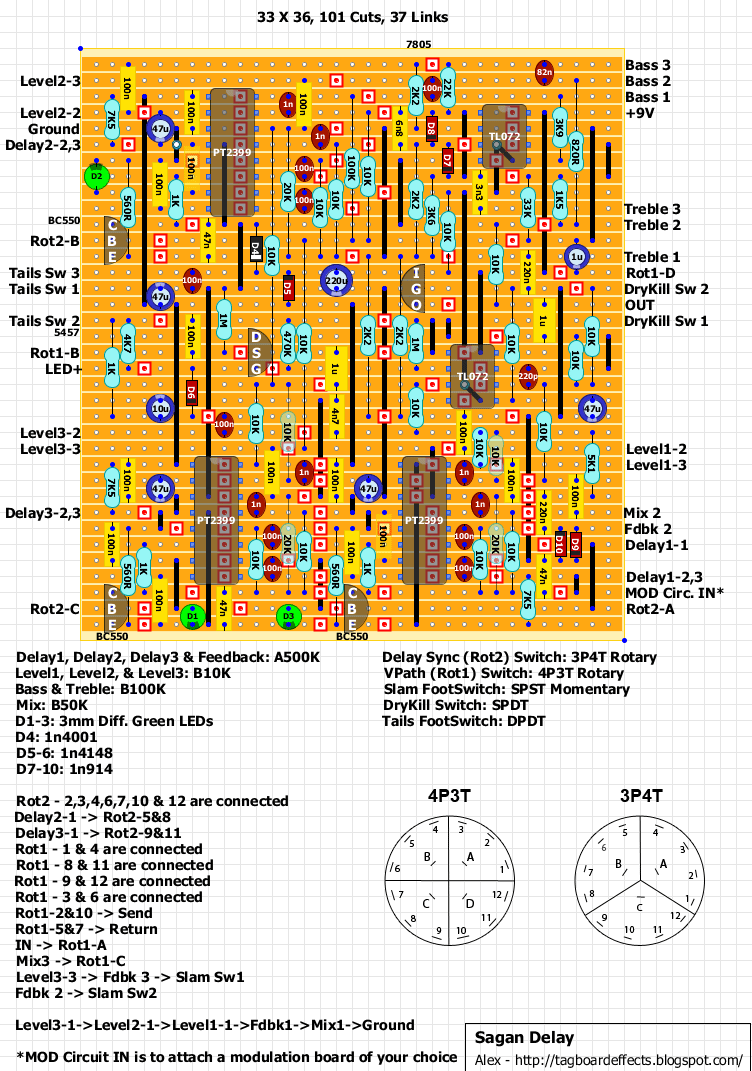

He tried to create a PT2399-based delay that resembles the Roland Space Echo.
You can find all extra infos here:
drive.google.com/file/d/0B7QeV_7r70dTUHY1VHhMS3BkaFVuZjJGdVMzOXVyYTI0NG5V/view
Thanks to Savvas for verifying this monster!
Here is a video from Chris:
…and one from Savvas:
