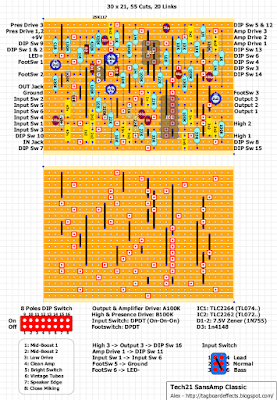

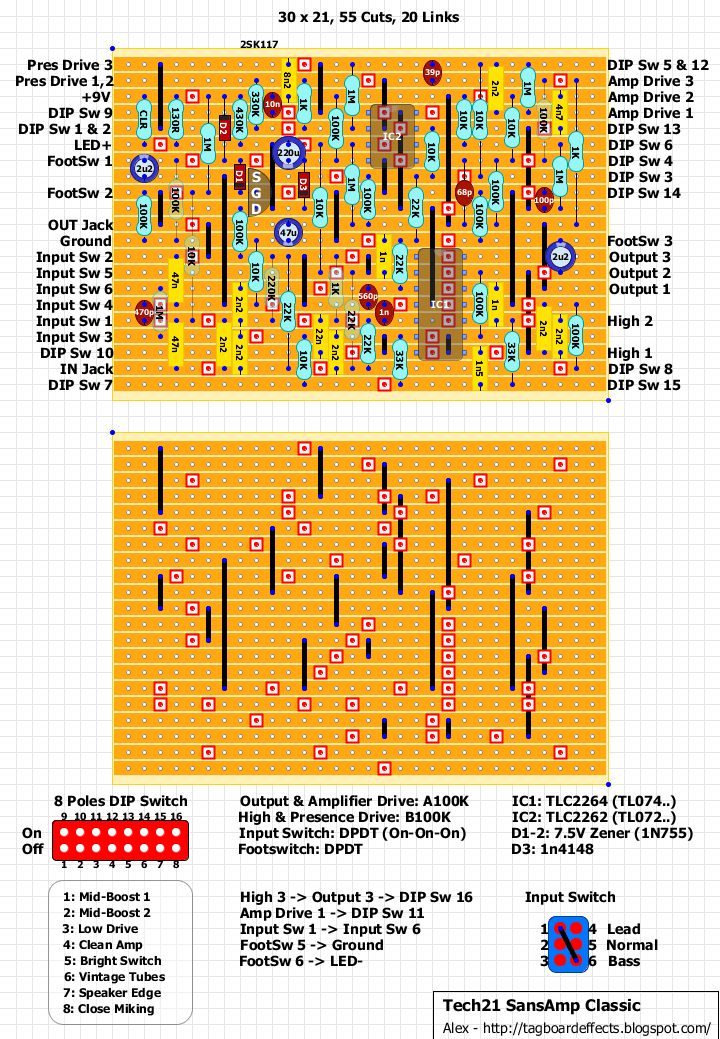

Here is a layout for a very famous pedal.
There were some noise issues with the original buffered version.

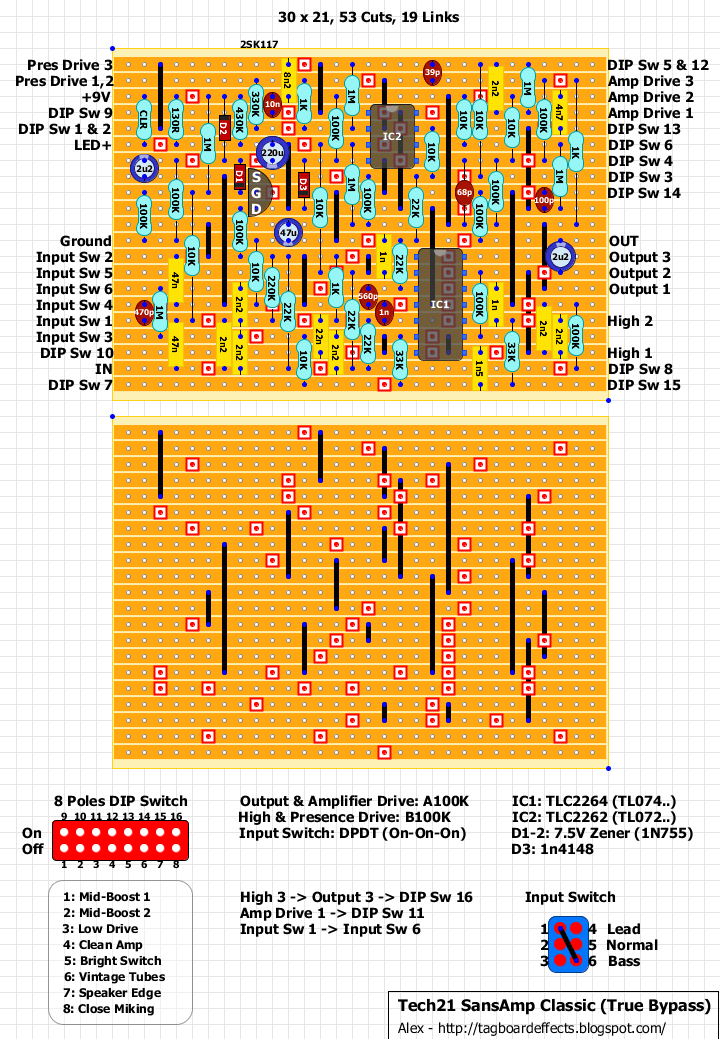

I’ve added a true bypass version below.
Tech 21 SansAmp Classic
Tools, Tones and Toys for Guitarists
Here is a layout for a very famous pedal.
There were some noise issues with the original buffered version.
I’ve added a true bypass version below.
