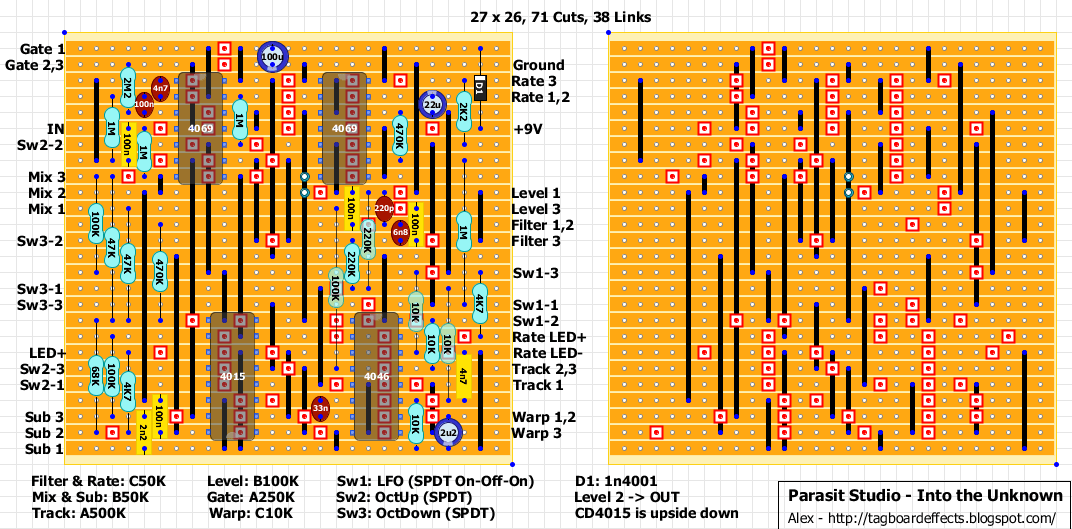

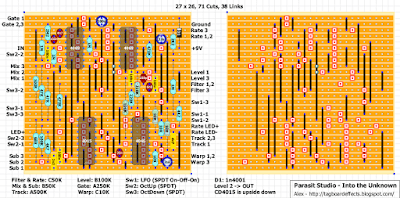

Fredrik (Freppo) from Parasit Studio asked me to draw a vero layout for his latest creation:
Into the Unknown Guitar Synthesizer Deluxe, the big brother of his 0415 Guitar Synth.
If you want more infos on this great pedal or want to buy one of Fredrik’s tidy PCBs you can check his website: www.parasitstudio.se

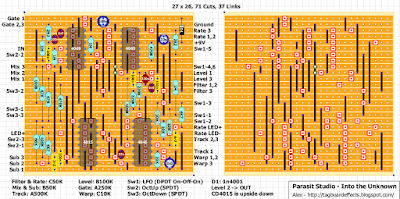

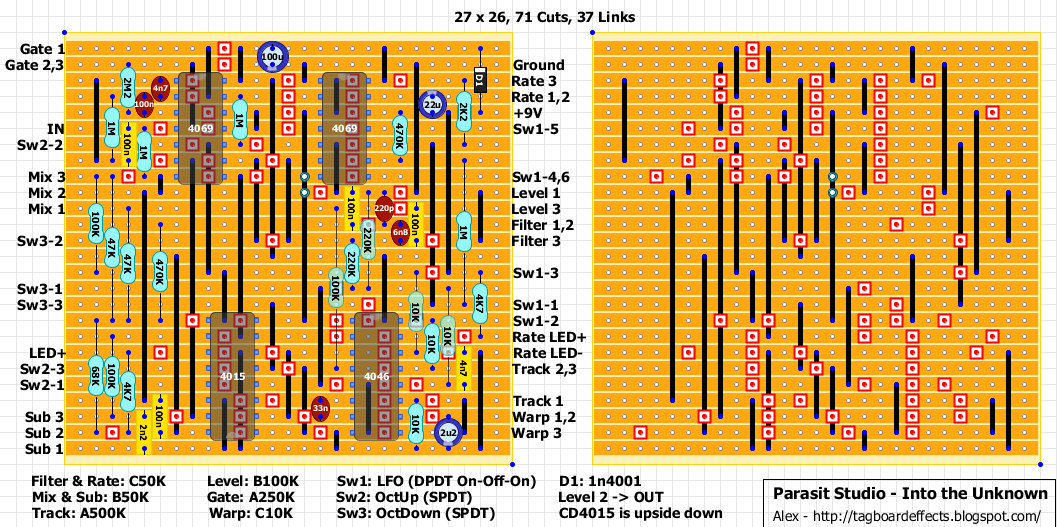

Here is a slightly modified version to stop ticking in bypass mode.
Removed the link between pins 8 & 11 of CD4069 in the top right corner and changed the LFO switch to DPDT On-Off-On.
Connected pin 8 to the new switch lugs 4 & 6 and pin 11 to lug 5.
Thanks to Michael Oriente for his suggested mod!
You can check Comments for more details.
