Madbean’s great new project based on Earthquaker Devices Sea Machine.
Original infos available here.
17/07/2016 Layout updated!
Changed 33n cap to 3n3 and 10k resistor from PT2399’s pin 14 back to 1K.

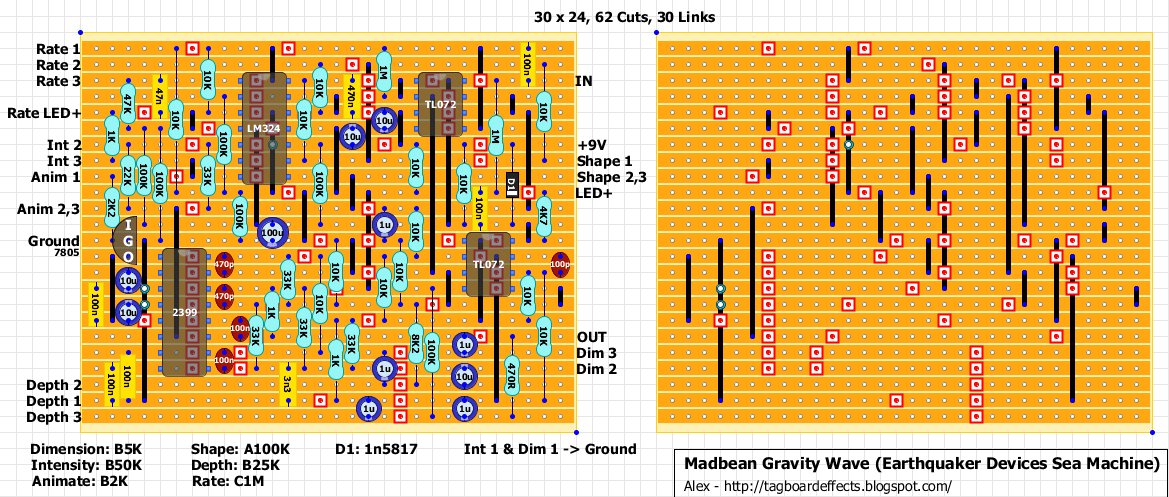

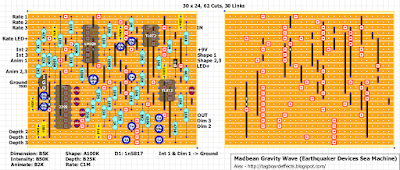

Madbean Gravity Wave (Earthquaker Devices Sea Machine)
