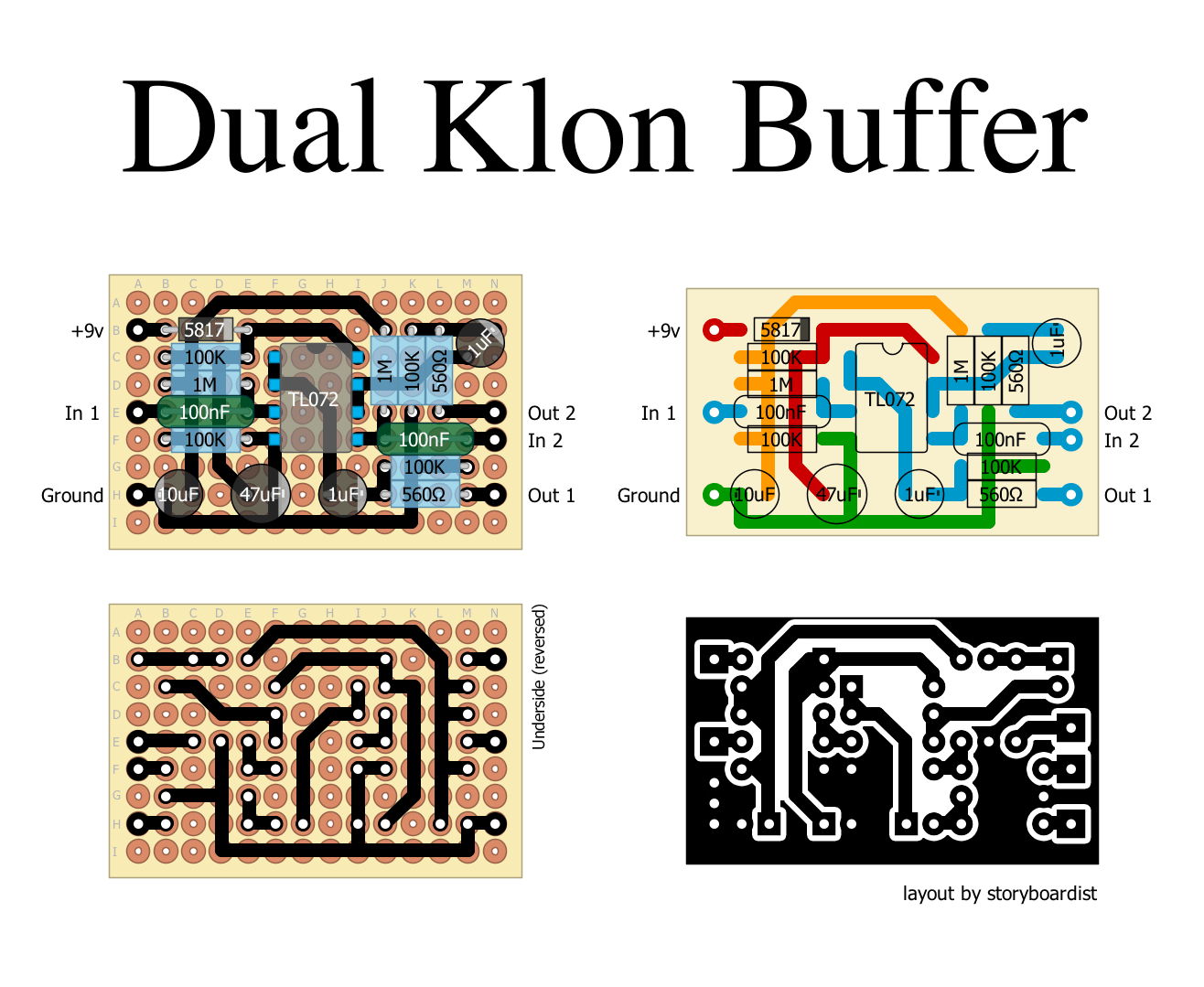

In an effort to make my own personal pedal board better, I’m building buffers at the input and output of my signal chain. As space and DC jacks are always a premium, I thought to build a dual buffer in a 1590A enclosure. The Klon Buffer is great and since it only uses half of a TL072, I figured I could just use the other half for the second buffer. It’s a little tight depending on the jacks you use, but the board is small enough to mount vertically to an inside wall of a 1590A while the wall opposite can mount the 4 input/output jacks. Here’s my drilling template to better illustrate.

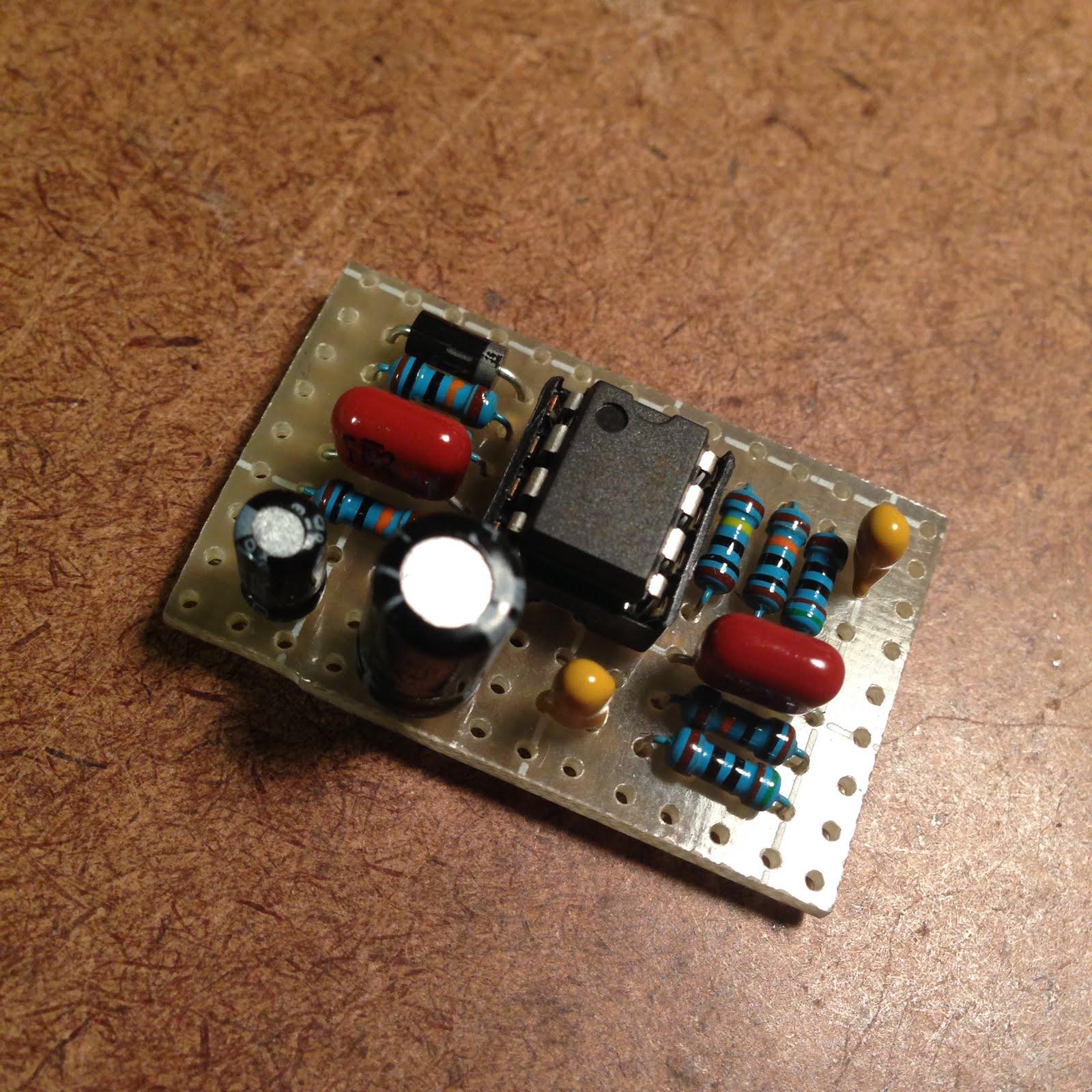

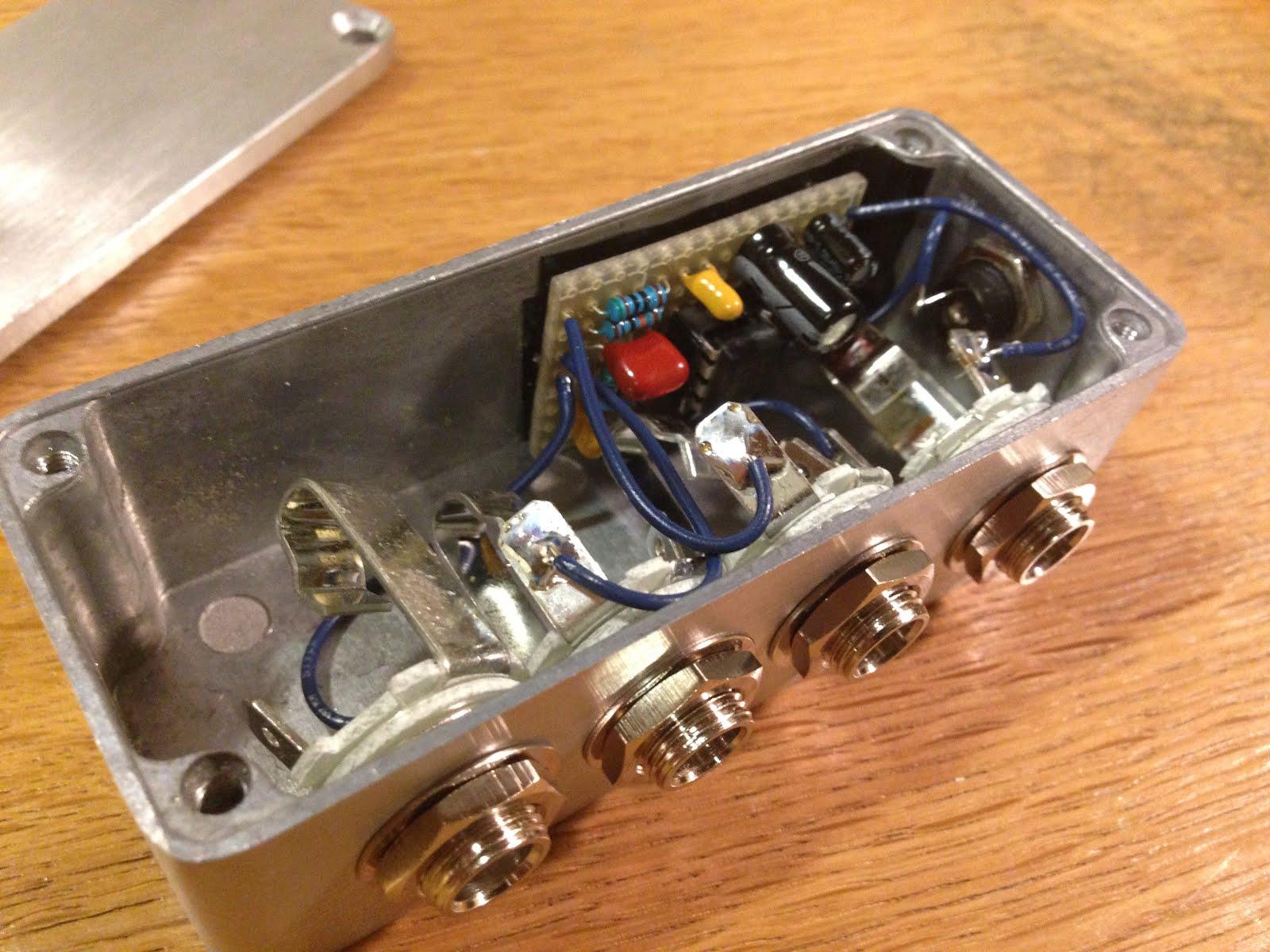

And here are a few pics of my build.
