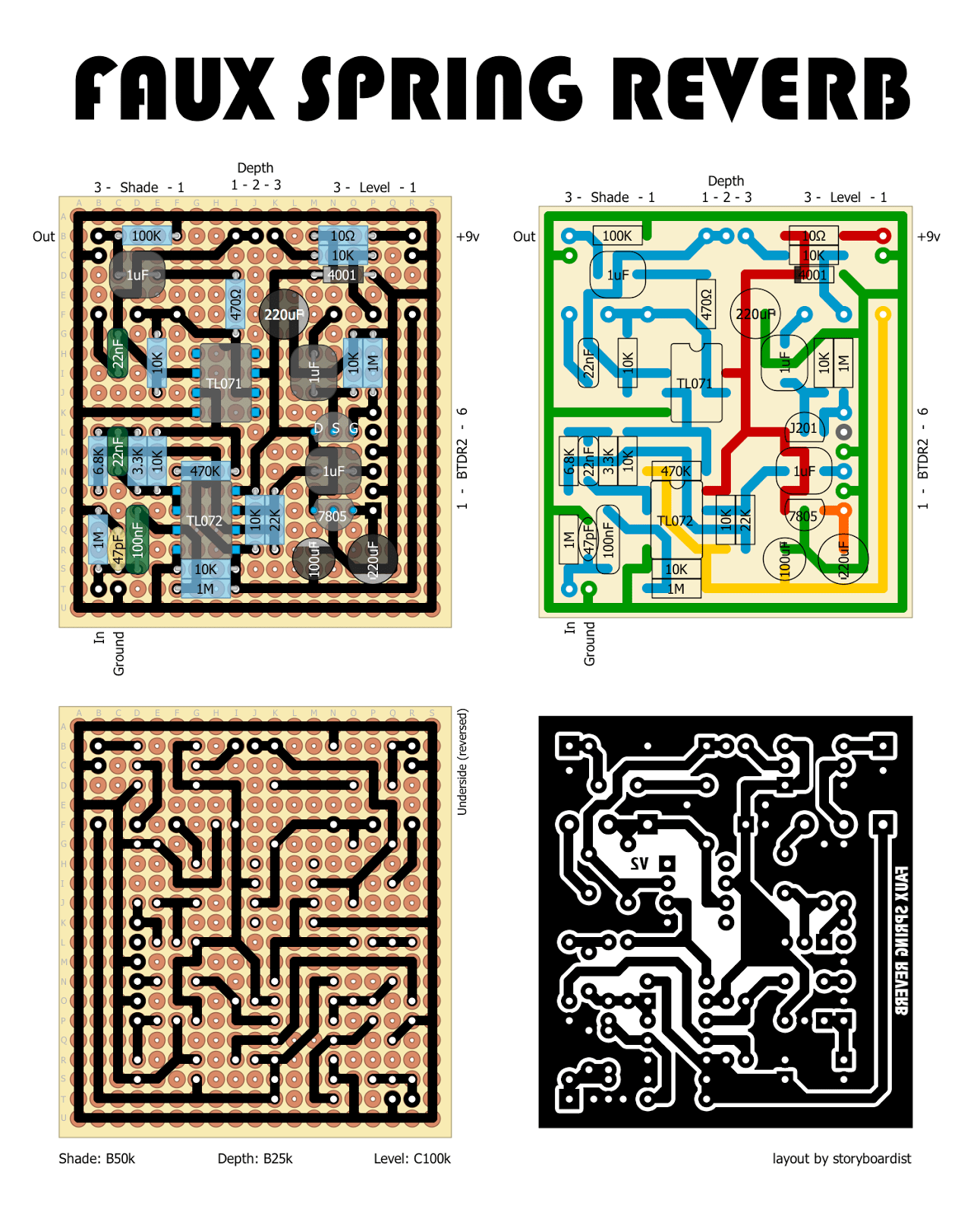

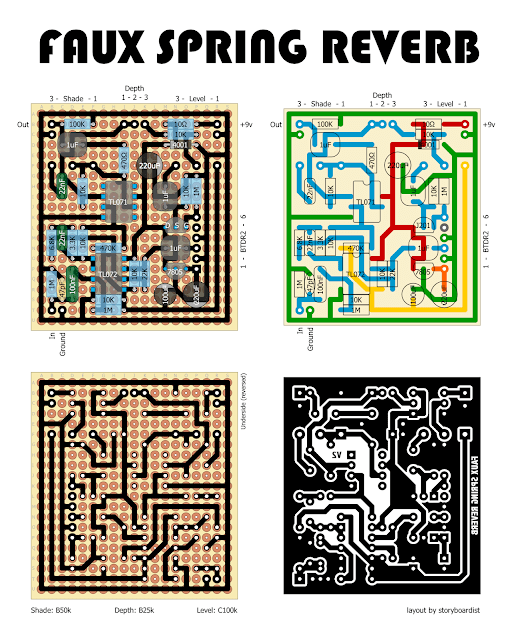

The Faux Spring Reverb, like many pedal reverbs is based around a Belton reverb module. Originally it used the BTDR-1 (which is massive), but in this layout I’ve adapted it for the newer and smaller BTDR-2H. I’ve also simplified the power section a little, and used a TL071 for the second IC. In the original a TL072 was used, but only used half of it. Here’s what Brian has to say about his design:
The great thing about the Faux Spring Reverb is that it retains the Analog base tone, doesn’t send your signal through digital/analog converters and back again (wrecking your tone completely) allowing you to be as springy as you like without your sound becoming lifeless, dull and… well, bad. With the tone control, you can control your sound completely and have your reverb be as bright as day, or dark as night… As lively and bright as a small hall, or as deep as the biggest cathedrals.
