Info from their website:
“Ziggy
is a low to medium gain overdrive that is designed to respond like a
tube amp. Unlike most overdrives it does not feature a “mojo” opamp but
cascaded discrete (MOSFET) gain stages that give ultra touch sensitivity
so that you can control everything from your guitar’s volume knob and
pick attack.
Gain knob acts as a voicing control adding more bass
as you turn clockwise, choosing from jangly and sparkling clean to thick
crunch of a tube rectified amp . Tone knob behaves as a presence
control adding bite to your tone.
Inside the updated (white and
gold version) we have included a two position gain switch. The higher
gain setting has extra bite and sustain making perfect for lead sounds
and is reminiscent of the now discontinued wine red Stardust”
as you turn clockwise, choosing from jangly and sparkling clean to thick
crunch of a tube rectified amp . Tone knob behaves as a presence
control adding bite to your tone.
Inside the updated (white and
gold version) we have included a two position gain switch. The higher
gain setting has extra bite and sustain making perfect for lead sounds
and is reminiscent of the now discontinued wine red Stardust”

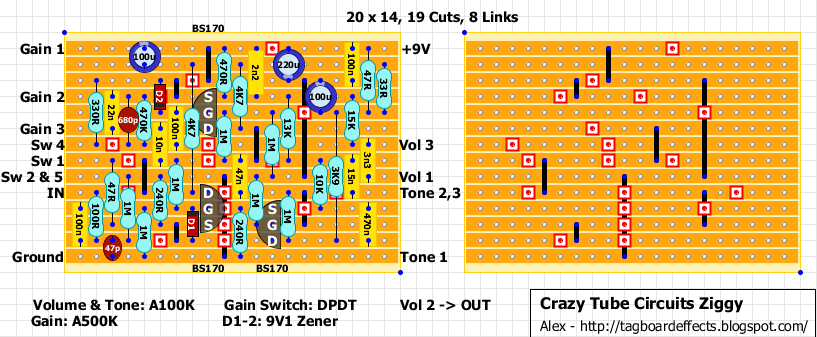

I would like to thank Ziotasgiorgios for reverse-engineering his own pedal in our forum section and Nocentelli for drawing the schematic!
Thanks also to Hozy31 for verifying the layout!
