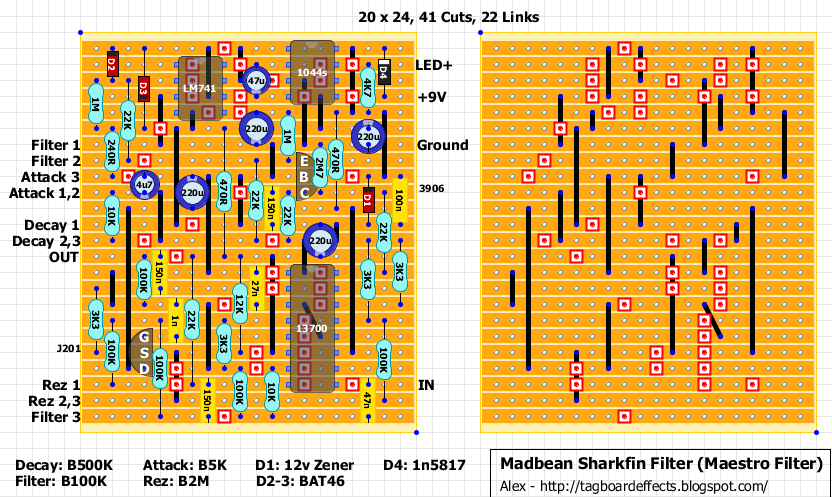

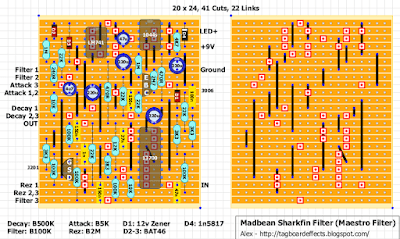

Here is a layout for Madbean Sharkfin filter side.
There is already a verified layout for the complete project but I’ve preferred to use a separated post for this one
24/08/16 Layout updated!
Moved bottom left 3K3 resistor up one row to connect it to 150n output cap.
