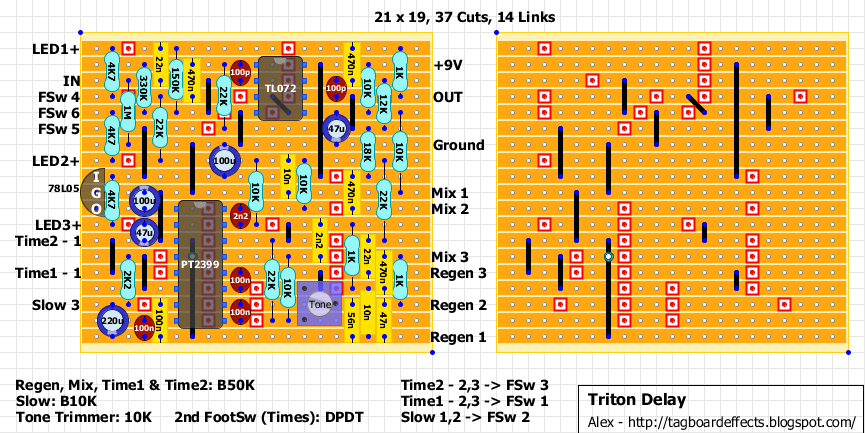

Here is a layout for Culturejam’s Triton Delay.
You can find his Build Guide here (Log In needed) and extra info on Madbean’s website.
Here is part of its description:
“The Triton Delay is yet another PT2399-‐‑based delay circuit that, at its tonal and topological core, is substantially similar to the Rebote 2.5 by Tonepad. TheTriton, however, diverges from the base concept by adding a second Delay Time potentiometer and a unique (in the DIY world) modulation effect. The Delay pots are selectable via footswitch (latching), and when switching from one time setting to the other, the delay time change happens slowly, just as if you were manually turning the delay time pot on a standard delay pedal. This causes a gradual pitchbend that slowly resolves to unison if a note or chord is struck and held when toggling between Delay pots. To control the speed of the pitch bend/resolve, there is a pot labelled “Slow”. Making the transition speed slower also makes overall delay time longer. It’s a very interactive system.”
