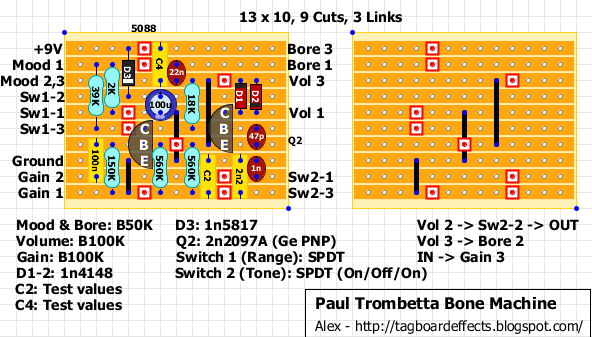

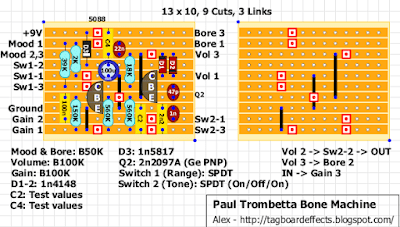

Here is a great fuzz pedal similar to the Rockett WTF (which Paul also designed).
A couple of capacitors are unknown.
You need to test different values (shouldn’t be too difficult to find the correct ones).
Schematic and original FSB thread are available here.
Paul has also added a Si/Ge transistors switch to his V.2

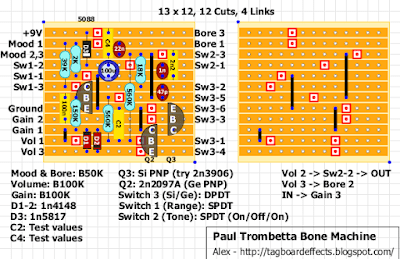

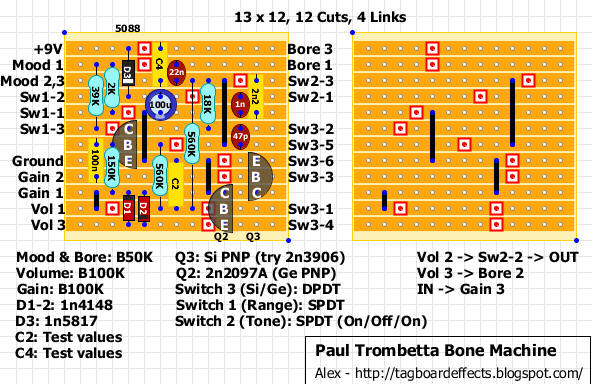

I’ve added a second layout with the new extra switch but it’s all guesswork.
